Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window to the full down position.
  2. Remove the outer belt sealing strip.
  3. Disengage the upper auxiliary sealing strip fasteners.
  4. Remove the upper auxiliary sealing strip (1) from the door frame.

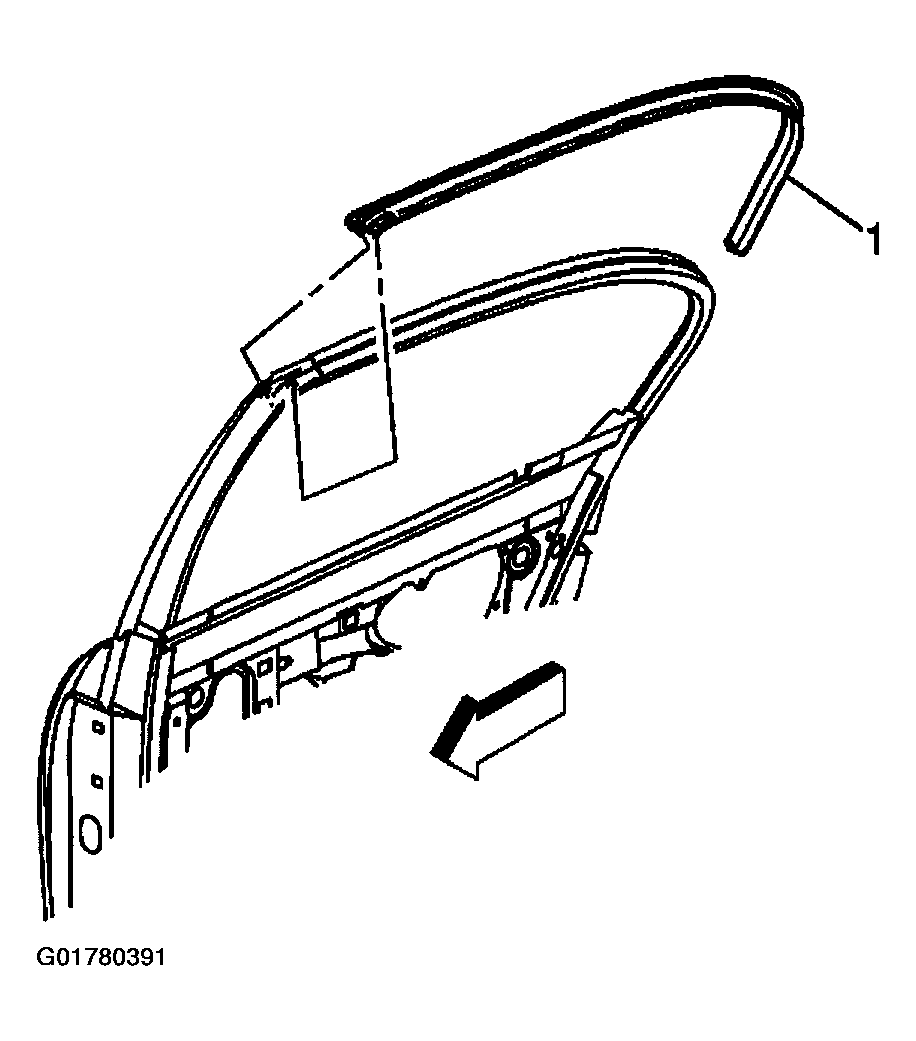

    Fig 1: Removing Front Door Lower Auxiliary Sealing Strip
    G01780391Courtesy of GENERAL MOTORS CORP.
