Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door outer belt sealing strip screw (1) from the front door outer belt sealing strip (2).
  2. Pull up on the rear of the front door outer belt sealing strip in order to release the strip from the retaining clips.
  3. Slide the front door outer belt sealing strip (2) rearward to remove it from under the mirror.
  4. Remove the front door outer belt sealing strip from the door.

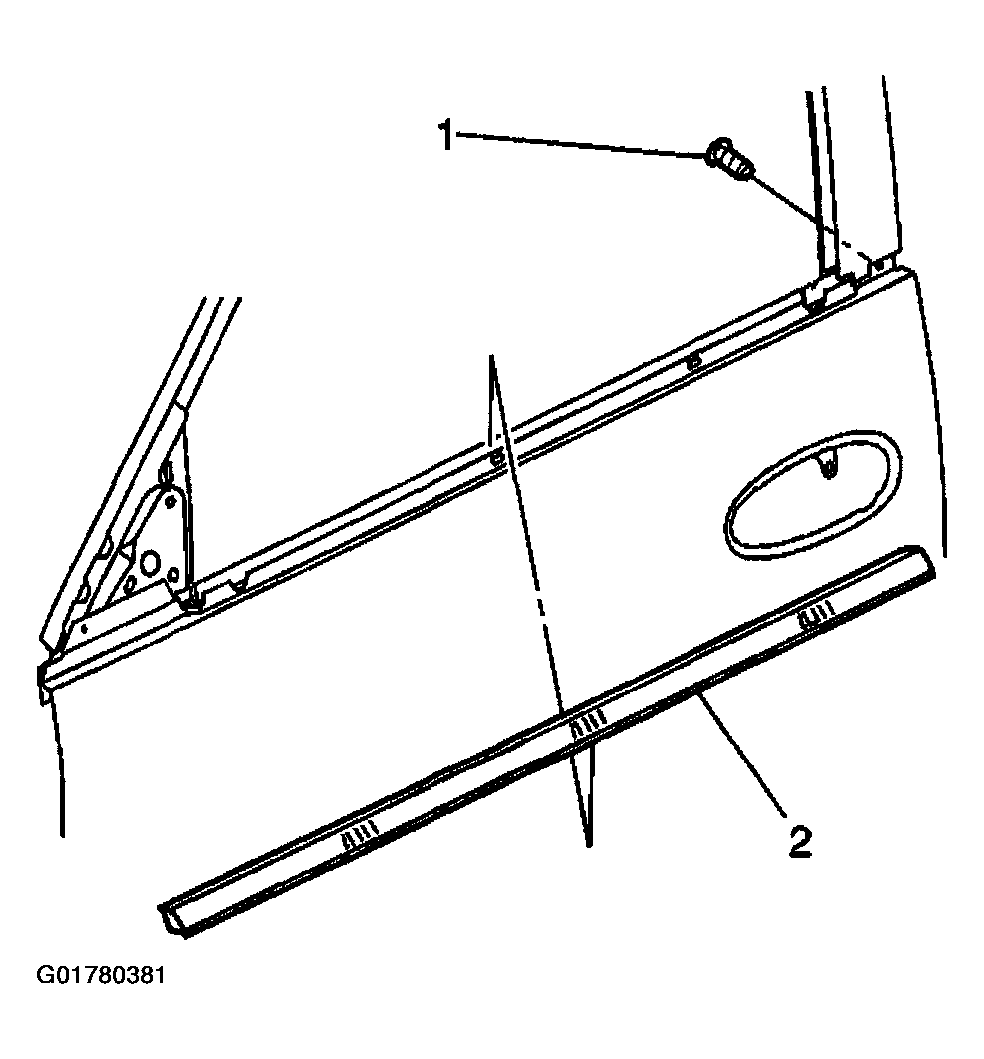

    Fig 1: Removing Front Door Outer Belt Sealing Strip
    G01780381Courtesy of GENERAL MOTORS CORP.
