Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Pull upward on the inner belt sealing strip (1) in order to disengage it from the door flange.
  3. Remove the front door inner belt sealing strip from the door.

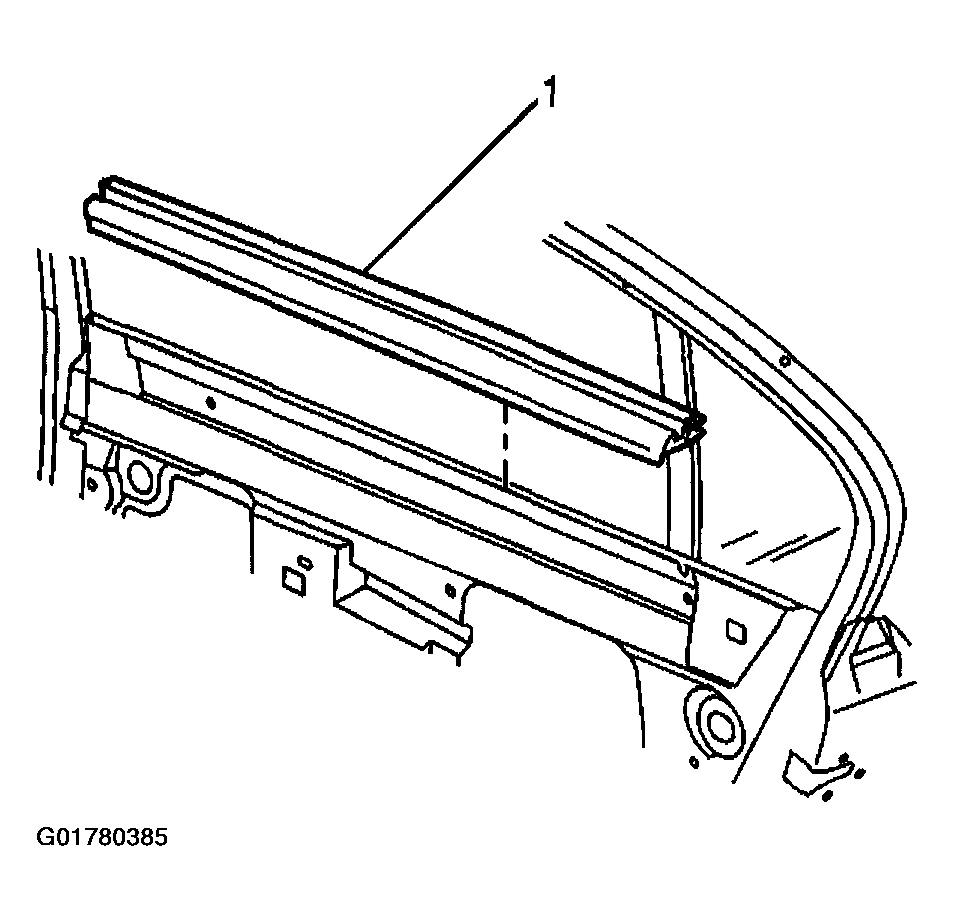

    Fig 1: Removing Front Door Inner Belt Sealing Strip
    G01780385Courtesy of GENERAL MOTORS CORP.
