Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window to the full down position.
  2. Remove the outer belt sealing strip.
  3. Remove the door frame applique. Refer to Door Frame Applique Replacement-Front  or Door Frame Applique Replacement-Rear  .
  4. Disengage the upper auxiliary sealing strip fasteners (1).
  5. Remove the upper auxiliary sealing strip from the doorframe (1).

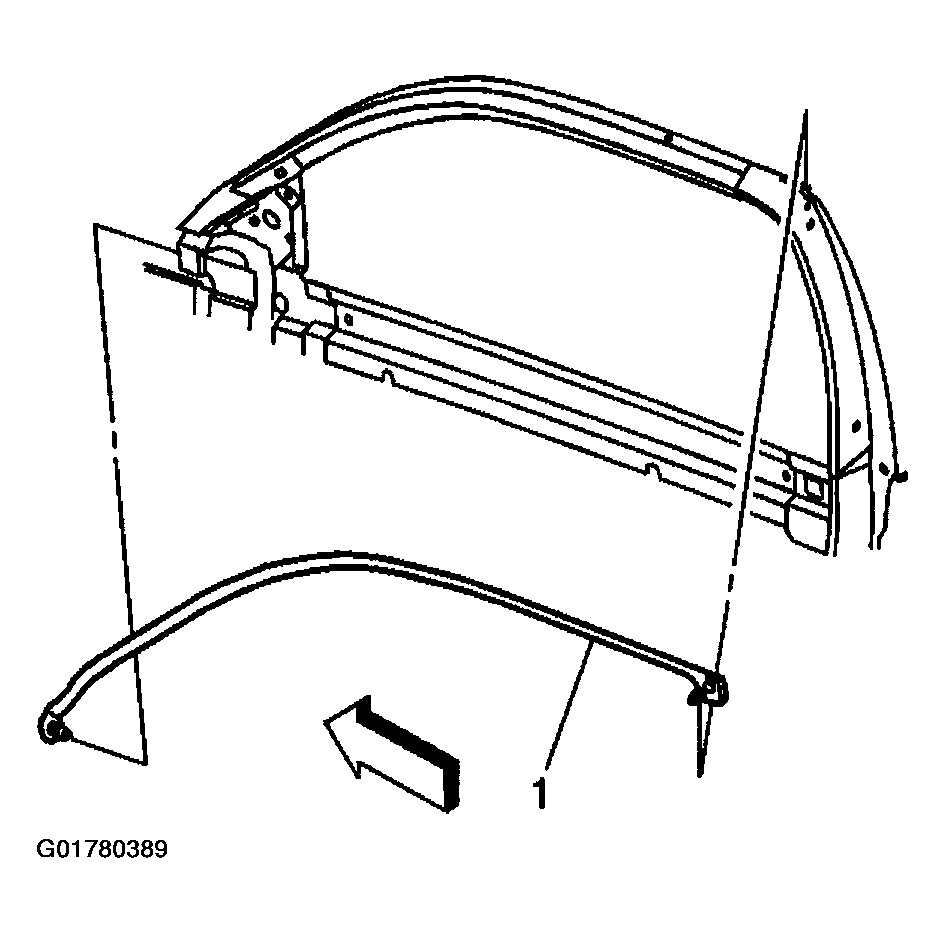

    Fig 1: Removing Front Door Upper Auxiliary Sealing Strip
    G01780389Courtesy of GENERAL MOTORS CORP.
