Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the warning reflector (1) from the rear door trim panel by disengaging the tabs with a small flat bladed tool.

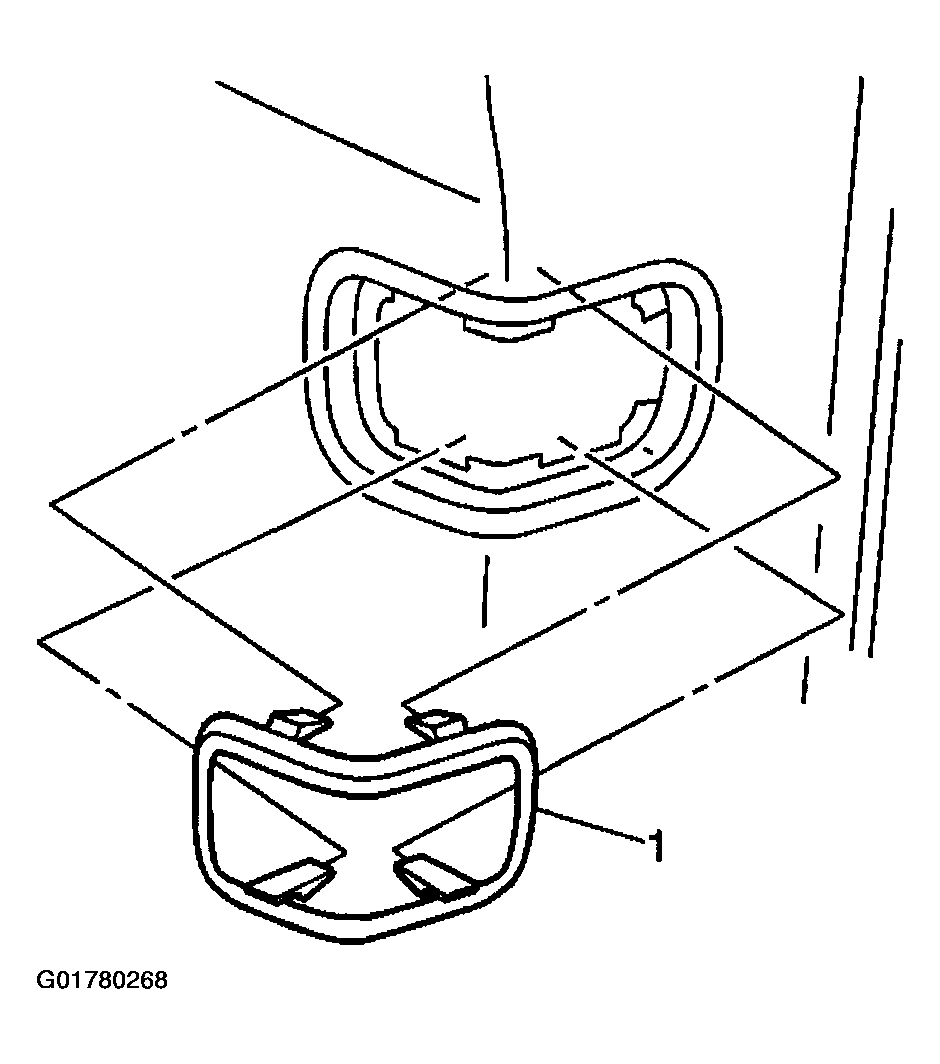

Fig 1: Removing Rear Door Warning Reflector
G01780268Courtesy of GENERAL MOTORS CORP.
