Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the warning reflector (1) from the front door trim panel by disengaging the tabs with a small flat bladed tool.

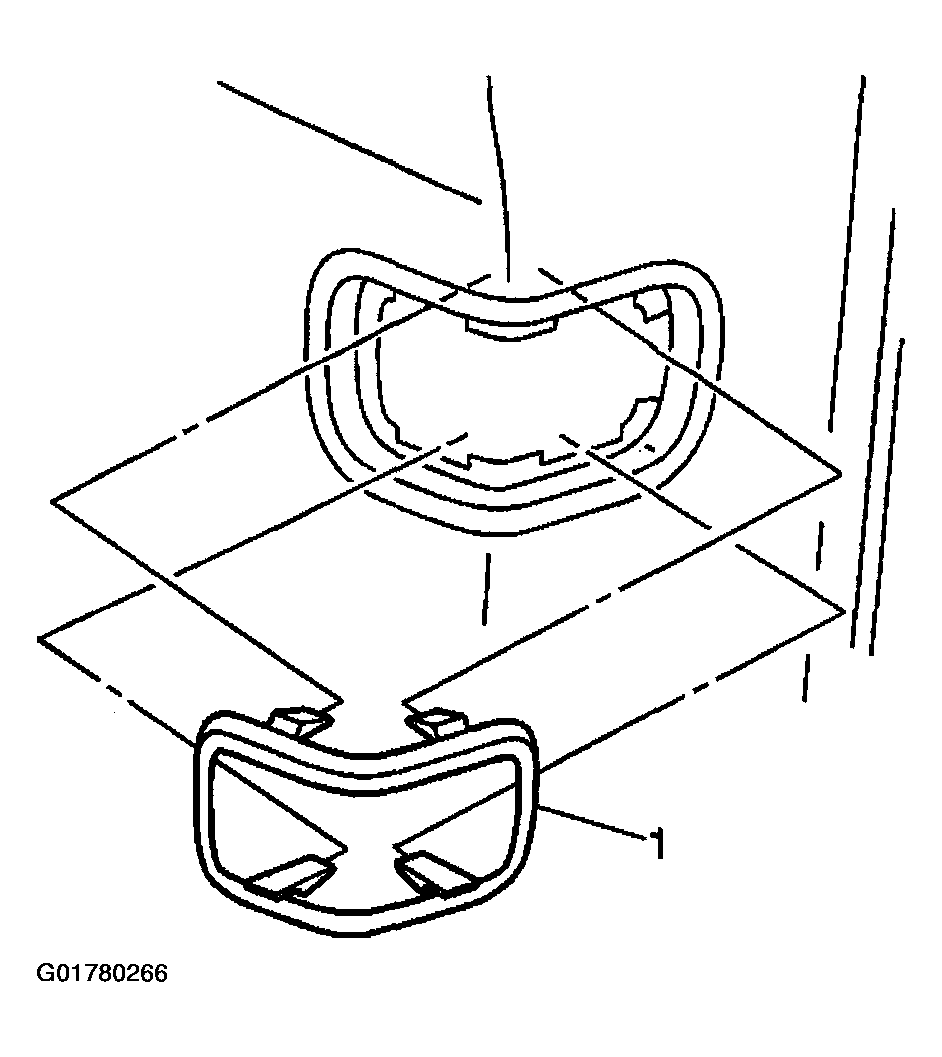

Fig 1: Removing Front Door Warning Reflector
G01780266Courtesy of GENERAL MOTORS CORP.
