Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat bladed tool in order to remove the power window switch (3) from the door trim panel. Push in and lift up at the side of the switch.
  2. Disconnect the electrical connector (2) from the power window switch (3).
  3. Remove the power window switch bezel (1) from the power window switch (3) by releasing the retainers with the flat bladed tool.

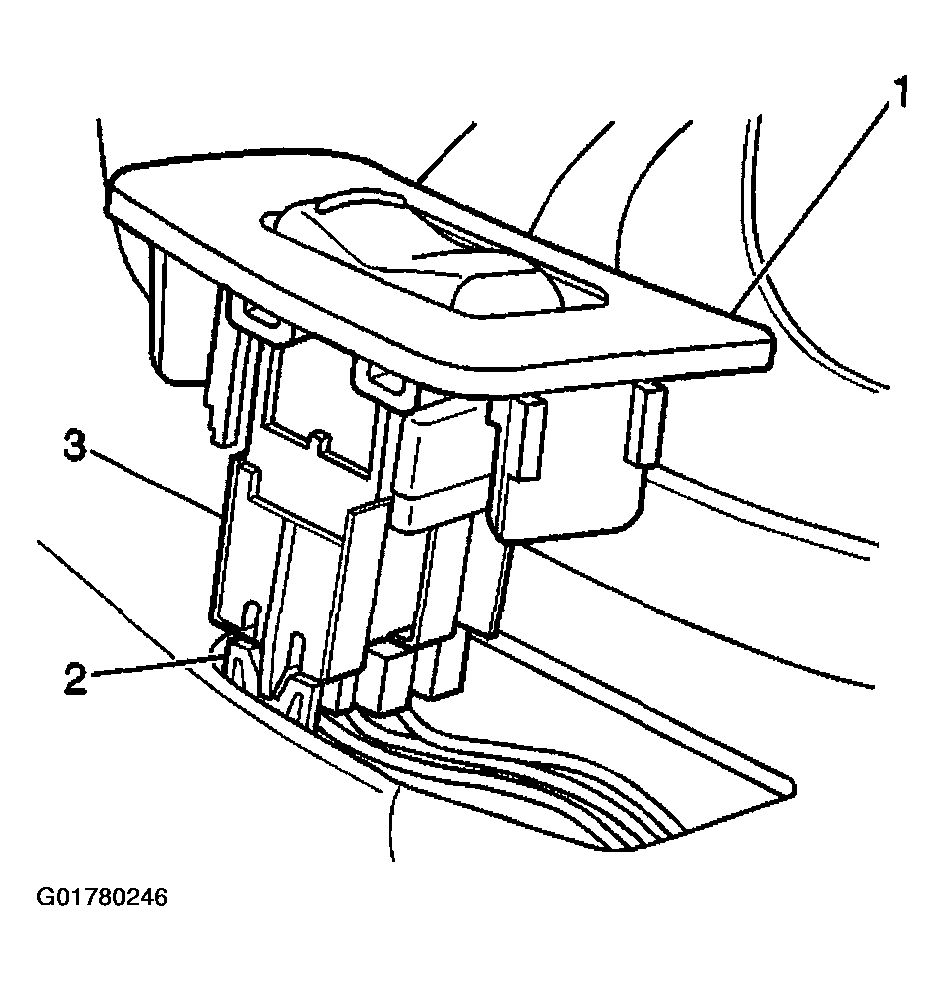

    Fig 1: Removing Rear Door Power Window Switch
    G01780246Courtesy of GENERAL MOTORS CORP.
