Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window to the full up position.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the door outside handle rod (2) from the door lock actuator.

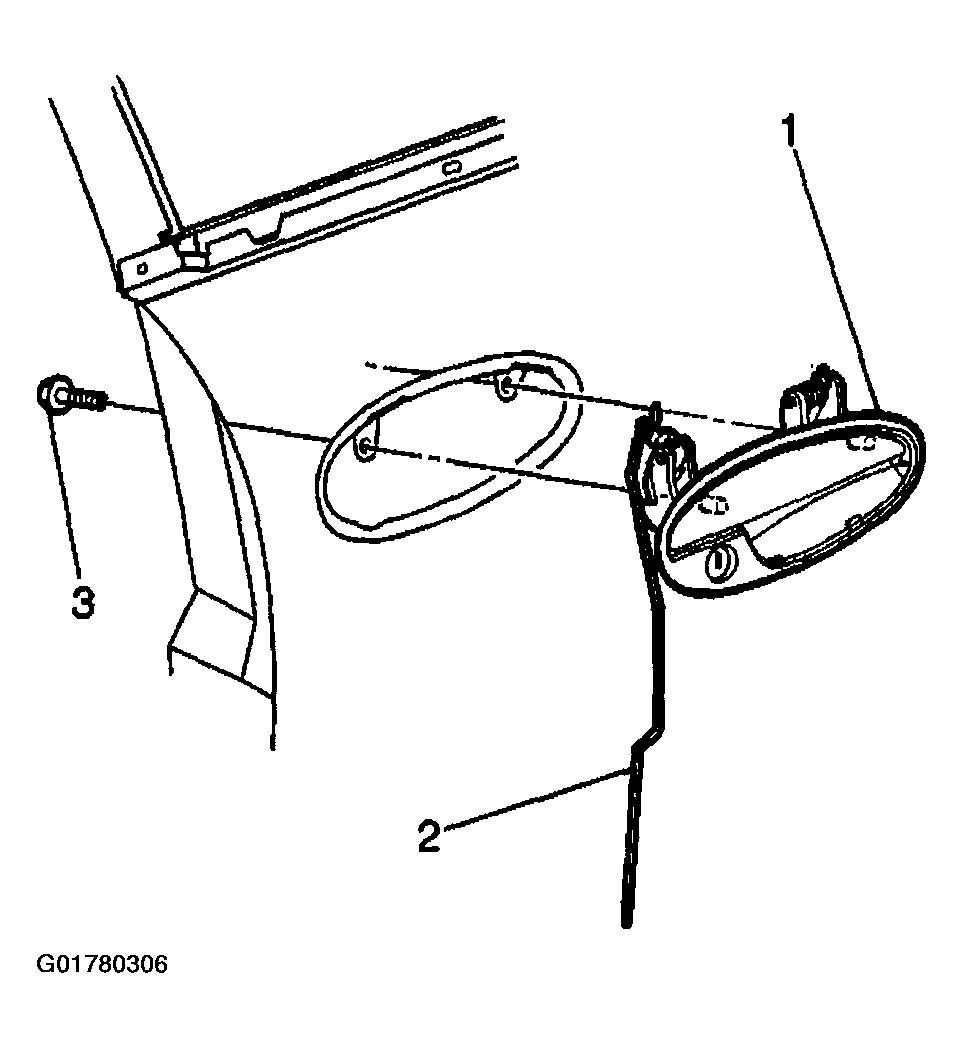

    Fig 1: Removing Door Outside Handle Rod
    G01780306Courtesy of GENERAL MOTORS CORP.
  5. Remove the door lock cylinder rod from the front door lock cylinder (4).
    Fig 2: Removing Door Lock Cylinder Rod
    G01780307Courtesy of GENERAL MOTORS CORP.
  6. Remove the door outside handle bolts (3).
  7. Remove the door outside handle (1).
    8. Fig 3: Removing Door Outside Handle & Bolts
    G01780308Courtesy of GENERAL MOTORS CORP.
  8. Remove the door inside locking rod from the door outside handle.
  9. Remove the door lock cylinder (4) by removing the retaining clip.
  10. Remove the door lock cylinder gasket (3).

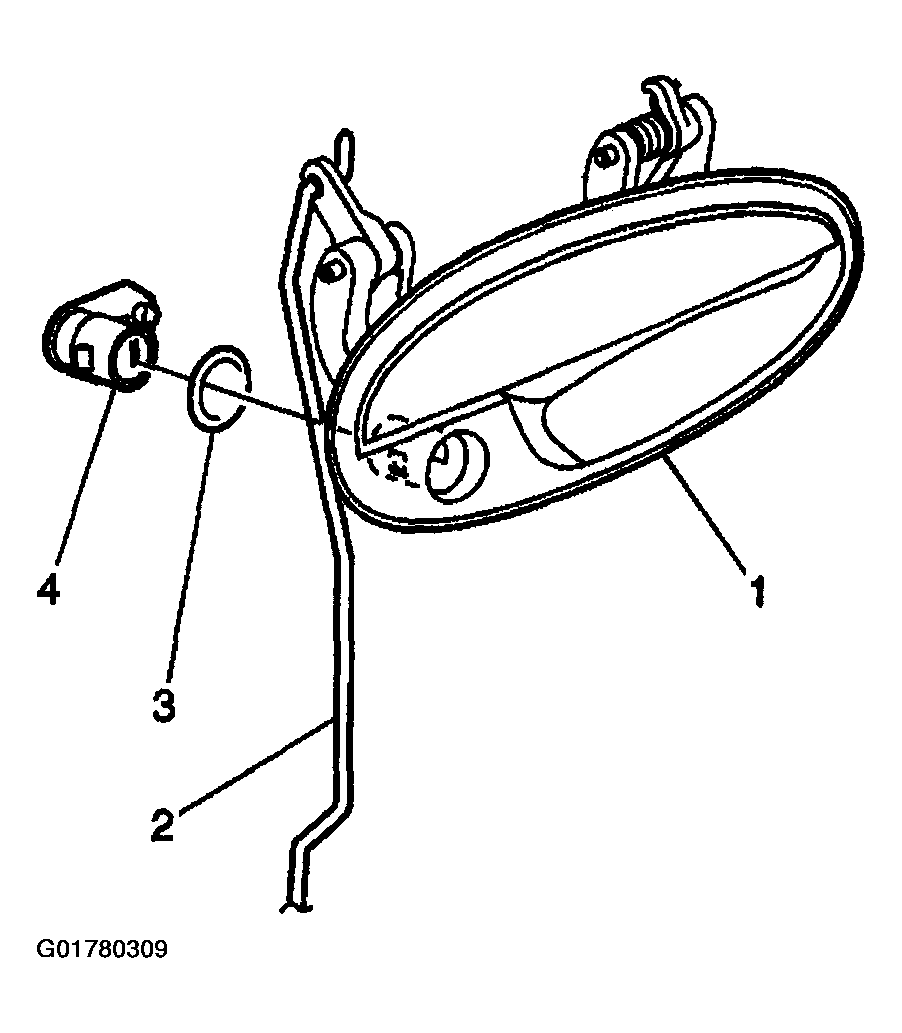

    Fig 4: Removing Door Lock Cylinder & Gasket
    G01780309Courtesy of GENERAL MOTORS CORP.
