Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the door lock cylinder gasket (3).
Install the door lock cylinder (4) by installing the retaining clip.
Install the door inside locking rod to the door outside handle (1).

Fig 1: Installing Door Lock Cylinder & Gasket
Courtesy of GENERAL MOTORS CORP.
Install the door outside handle (1).
Install the door outside handle bolts (3).
Place the door outside handle in the closed position.
Push the lower end of the door outside handle rod into the retainer on the door lock actuator. Close the retainer.

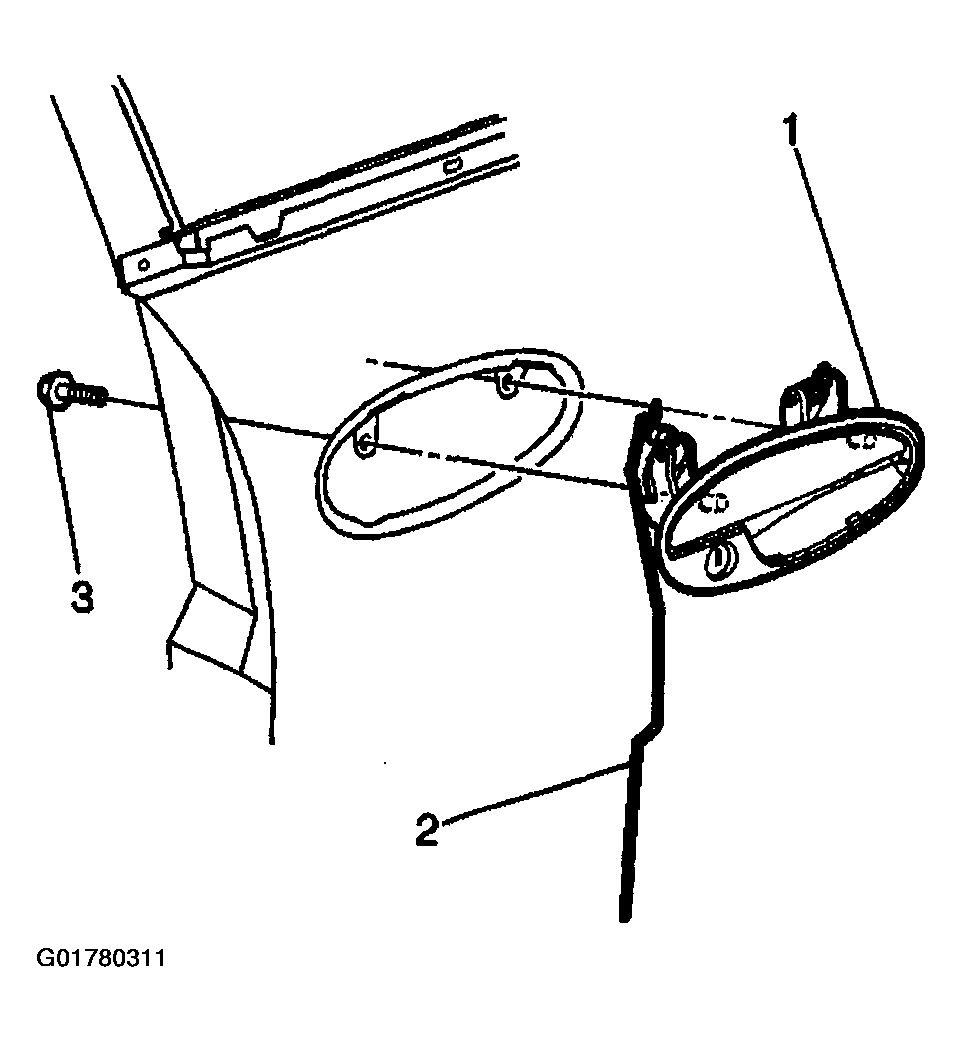

Fig 2: Installing Door Outside Handle & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the door lock cylinder rod to the front door lock cylinder (4).

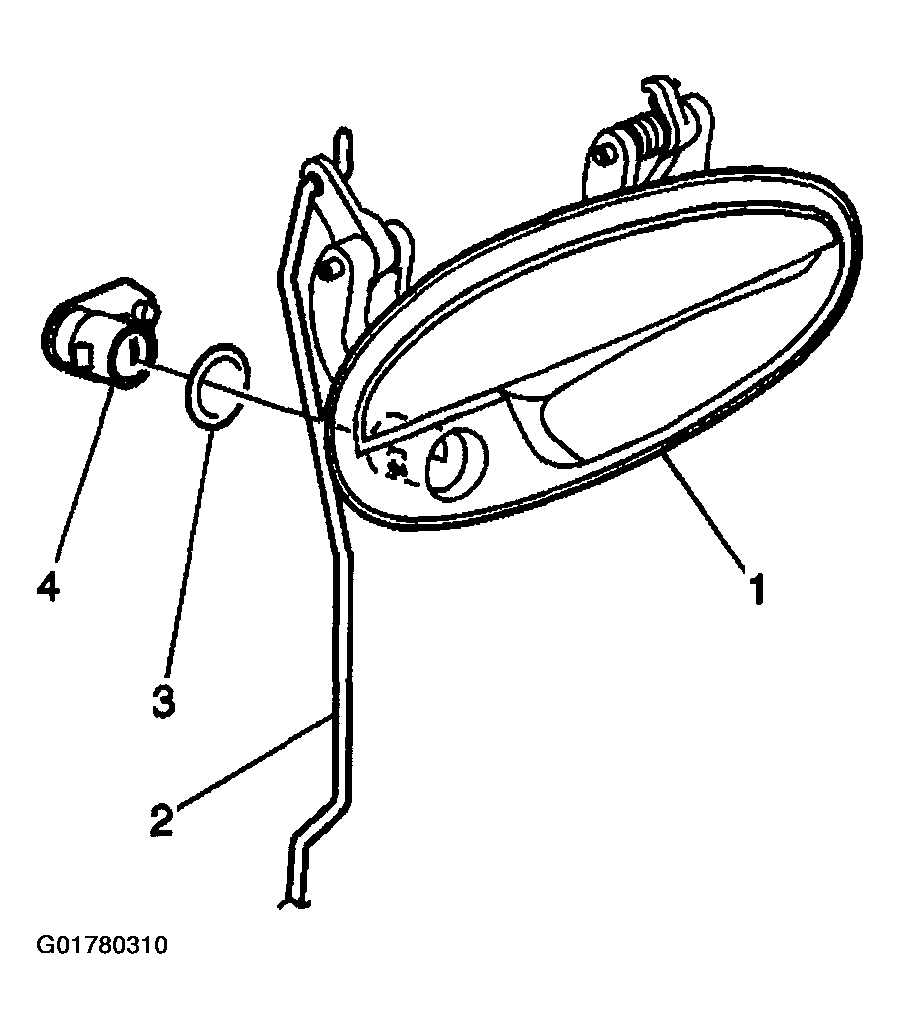

Fig 3: Installing Door Lock Cylinder Rod

Courtesy of GENERAL MOTORS CORP.

Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
