Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the mirror face firmly and pull it from the mirror body.

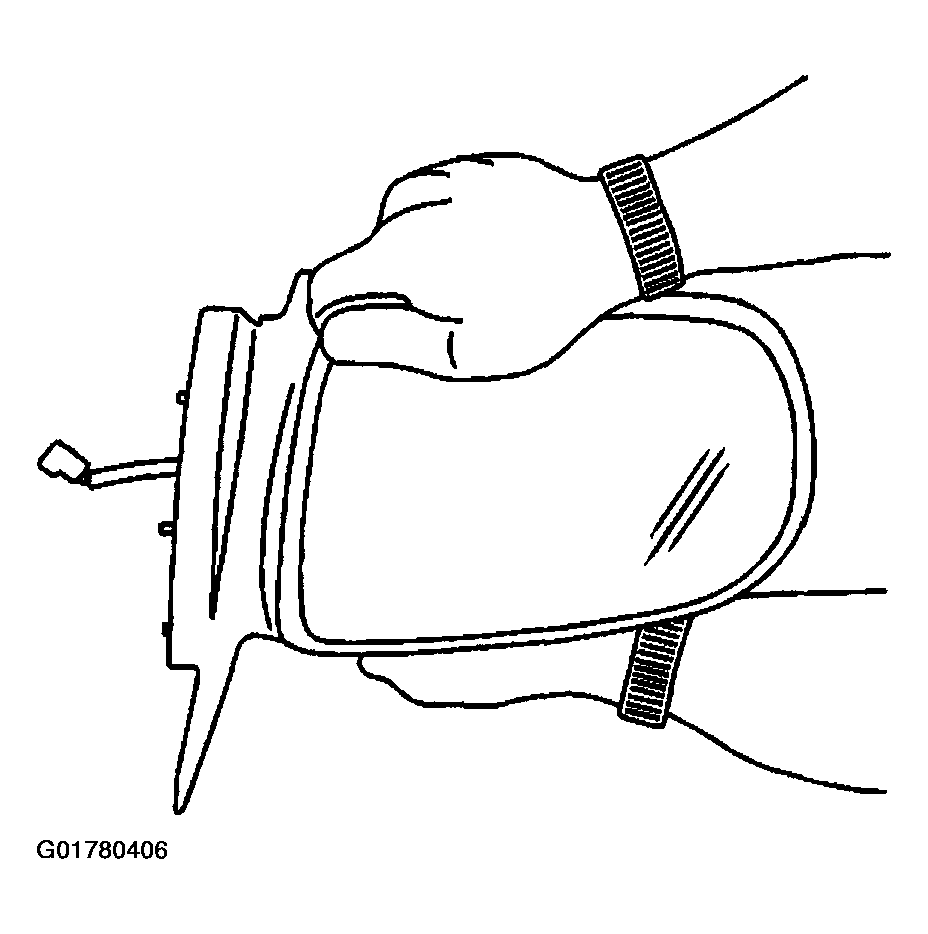

    Fig 1: Pulling Mirror Face From Mirror Body
    G01780406Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 jackscrews from the back of the mirror case
    • Bend the 2 jackscrews over.
    • Press down on the side of the jackscrew popping the screw from the mirror glass case.
    • Save the jackscrews for reinstallation to the mirror motor.
    Fig 2: Removing Mirror Case Jackscrews
    G01780407Courtesy of GENERAL MOTORS CORP.
