Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
Remove the rear door inside handle. Refer to Door Door Handle Replacement - Rear Inside .
Disconnect the rear door lock electrical connectors.
Remove the rear door outside handle rods (1,2).

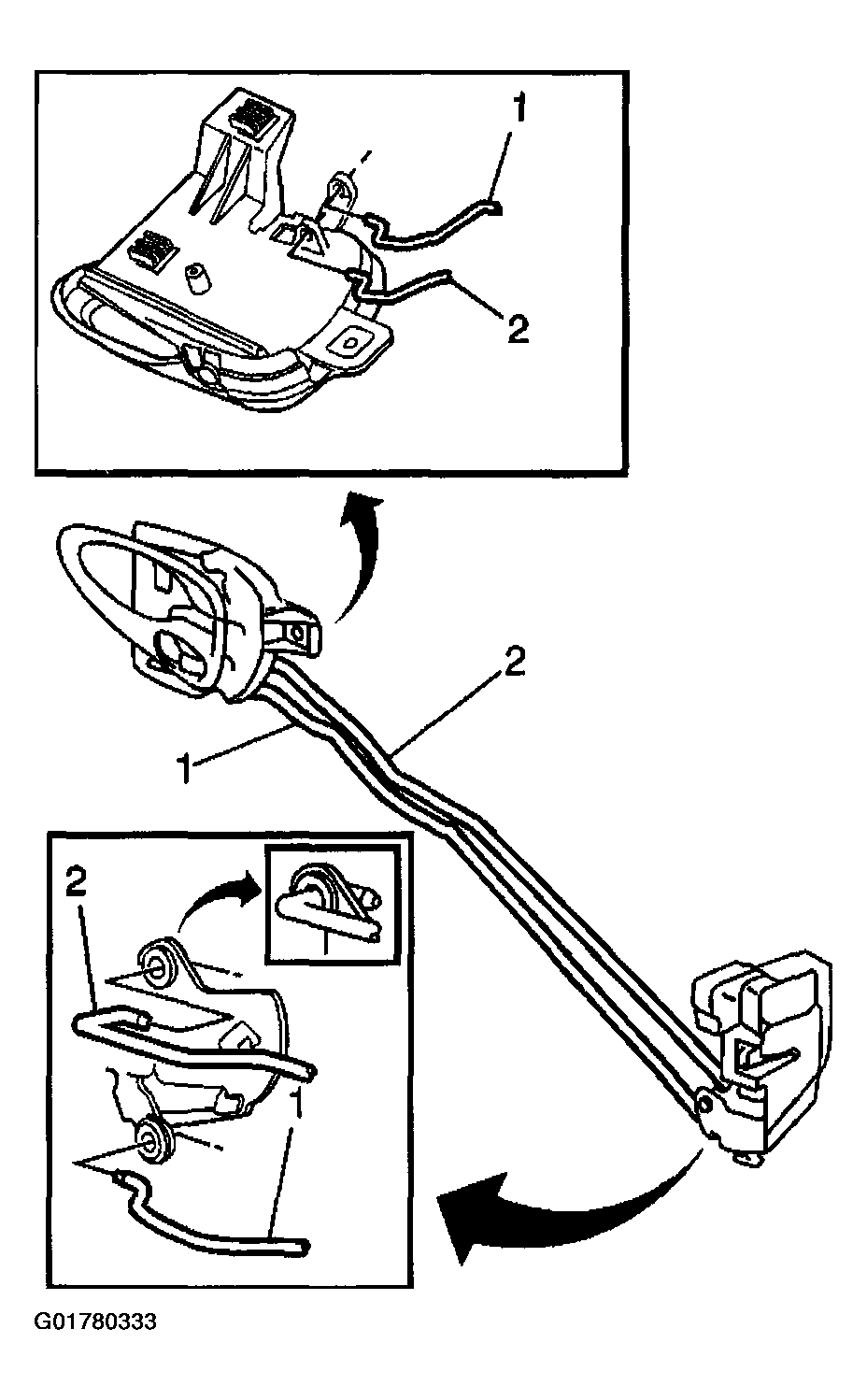

Fig 1: Removing Rear Door Outside Handle Rods
Courtesy of GENERAL MOTORS CORP.
Remove the rear door lock screws (1, 2, 3).
Remove the rear door lock from the rear door.

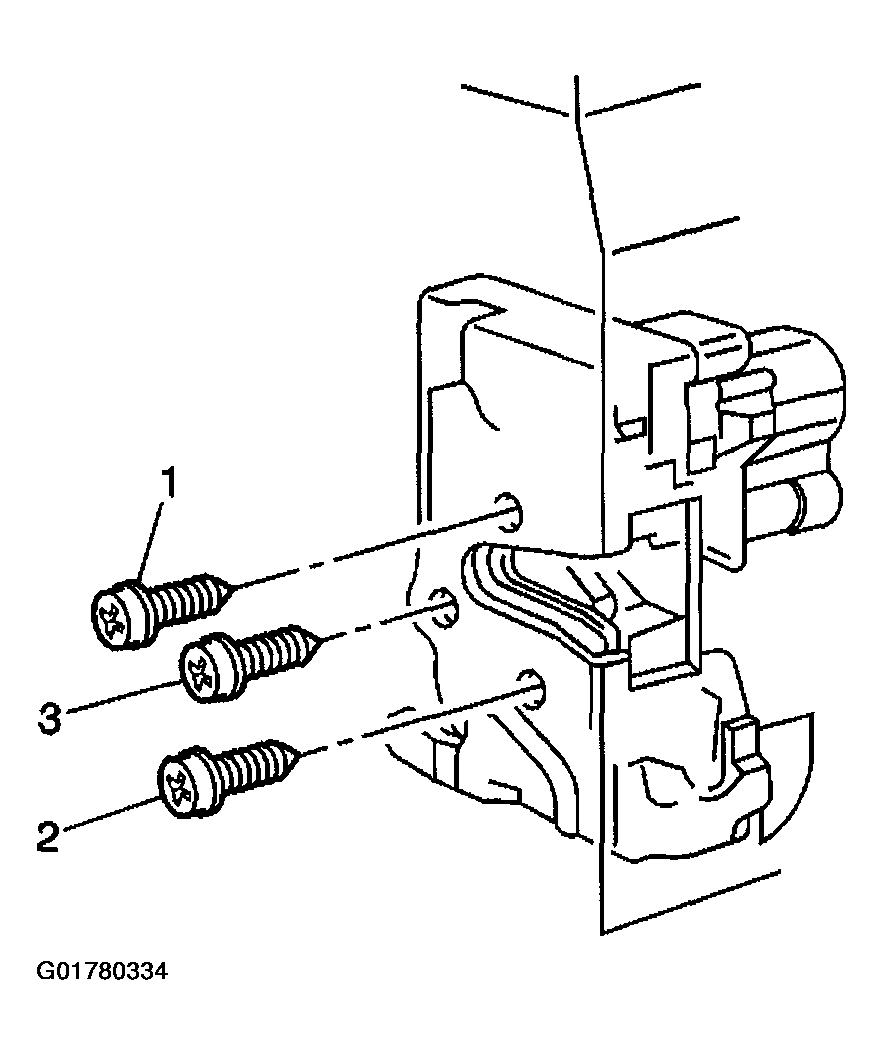

Fig 2: Removing Rear Door Lock
Courtesy of GENERAL MOTORS CORP.
