Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lock. Refer to Lock Replacement - Rear Door .
  2. Remove the rear door lock actuator screws.
  3. Remove the rear door lock actuator from the rear door lock.

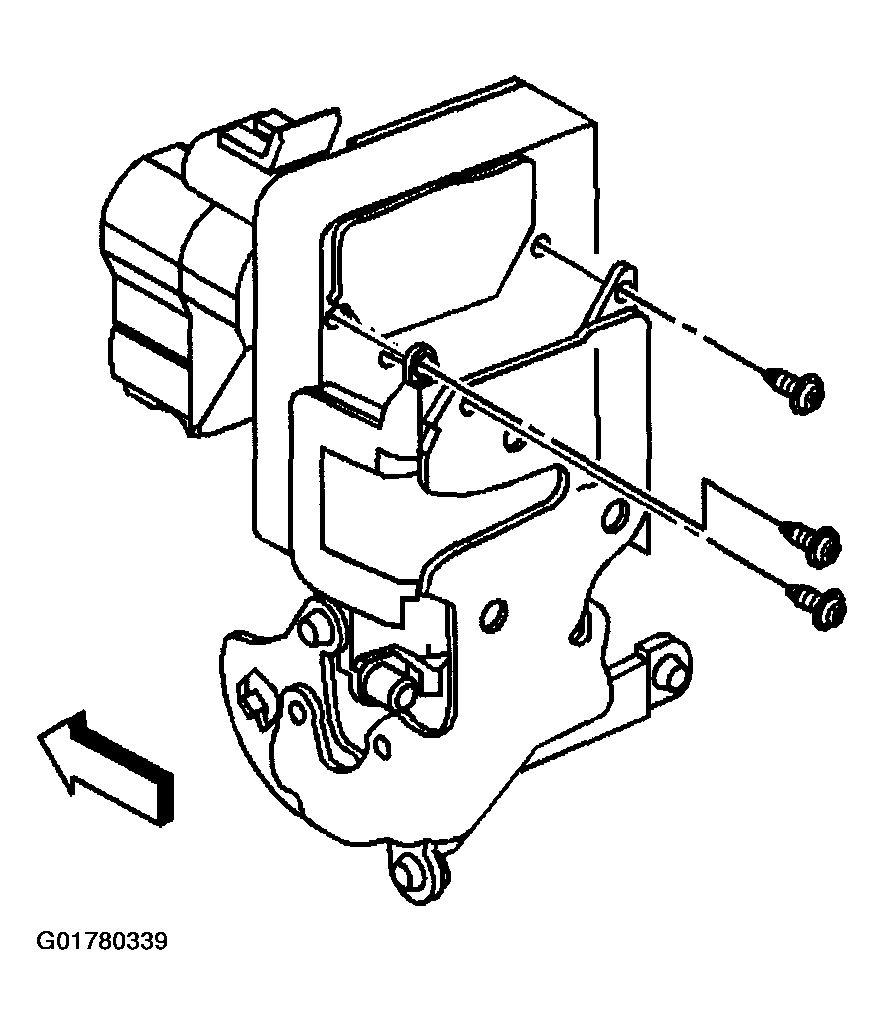

    Fig 1: Removing Rear Door Lock Actuator
    G01780339Courtesy of GENERAL MOTORS CORP.
