Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Mark the location of the rear door hinge to center pillar with a grease pencil.
  3. Mark the location of the rear door hinge to rear door with a grease pencil.
  4. Remove the rear door hinge nuts.

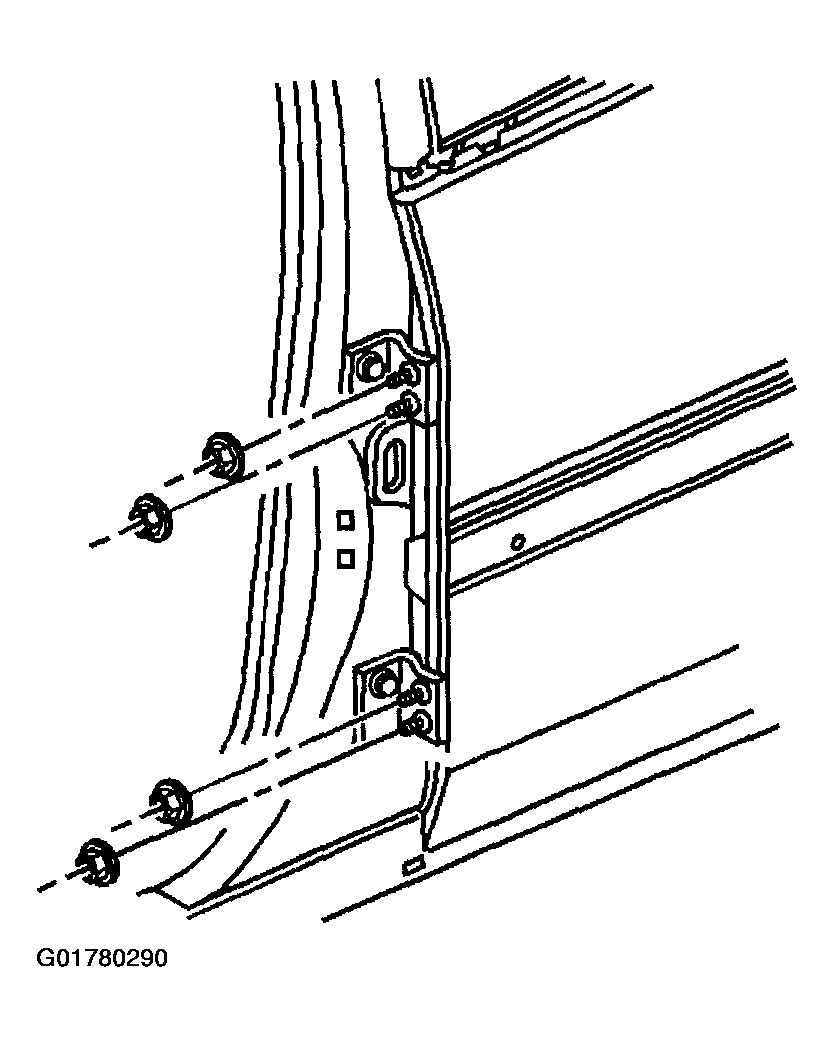

    Fig 1: Removing Rear Door Hinge Nuts
    G01780290Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear door hinge bolts.
  6. Remove the rear door hinge from the rear door.

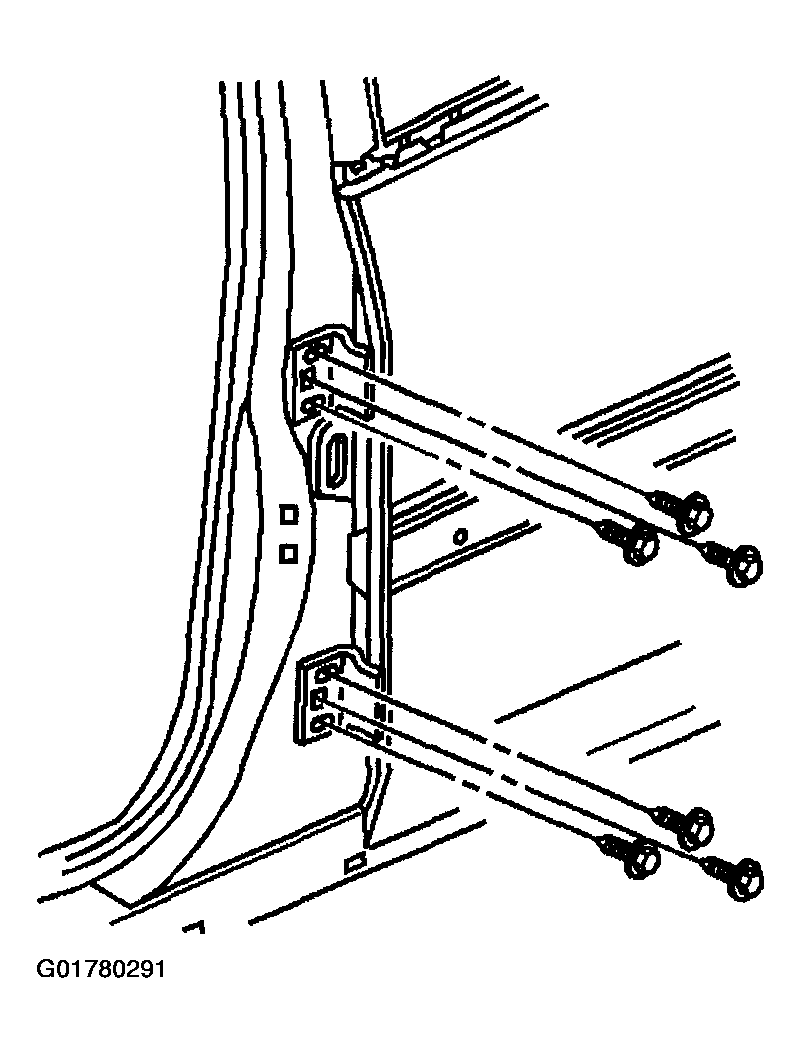

    Fig 2: Removing Rear Door Hinge Bolts
    G01780291Courtesy of GENERAL MOTORS CORP.
