Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This vehicle has energy-absorbing foam blocks for side impact protection. To help avoid personal injury in a collision, foam blocks that are damaged, or removed during repairs must be replaced. Failure to replace foam blocks that are removed can violate federal law.
  1. Remove the rear door window regulator. Refer to Window Regulator Replacement-Rear Door .
  2. Remove the screws from the rear door energy absorber pad.
  3. Remove the rear door energy absorber pad from the door.

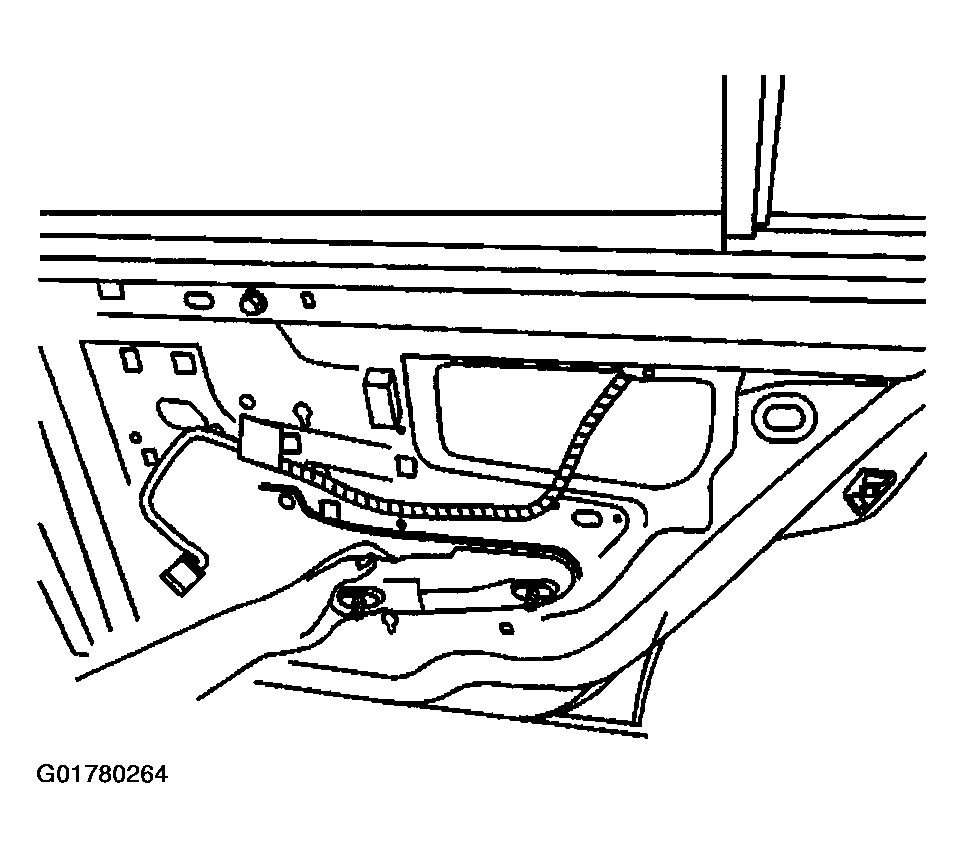

    Fig 1: Removing Rear Door Energy Absorber Pad
    G01780264Courtesy of GENERAL MOTORS CORP.
