Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window to the full up position.
  2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. From the inside of the door, remove the nut and handle bracket.

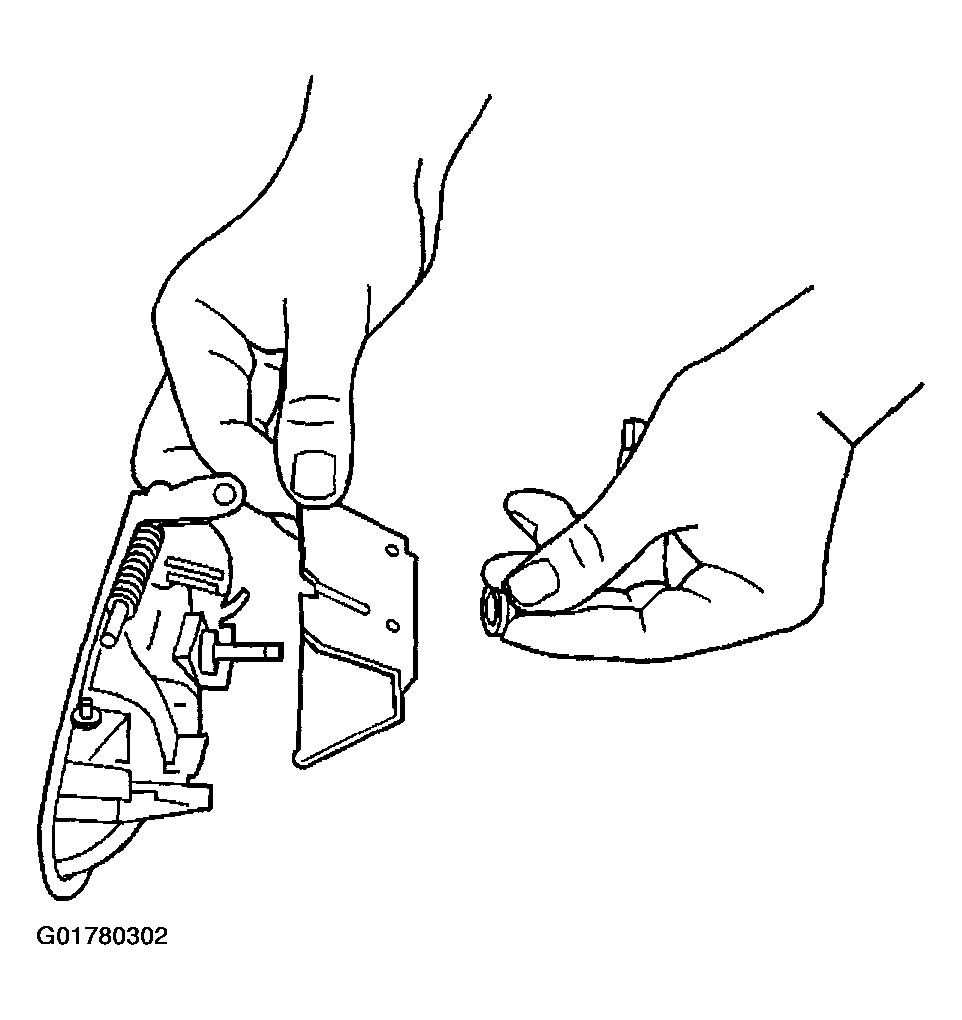

    Fig 1: Removing Handle Bracket Nut
    G01780302Courtesy of GENERAL MOTORS CORP.
  4. Pivot the handle up to disengage it from the door.
  5. Remove the door handle rod (2) from the door lock.
  6. Remove the door handle (1) from the door.
  7. Remove the door handle rod.

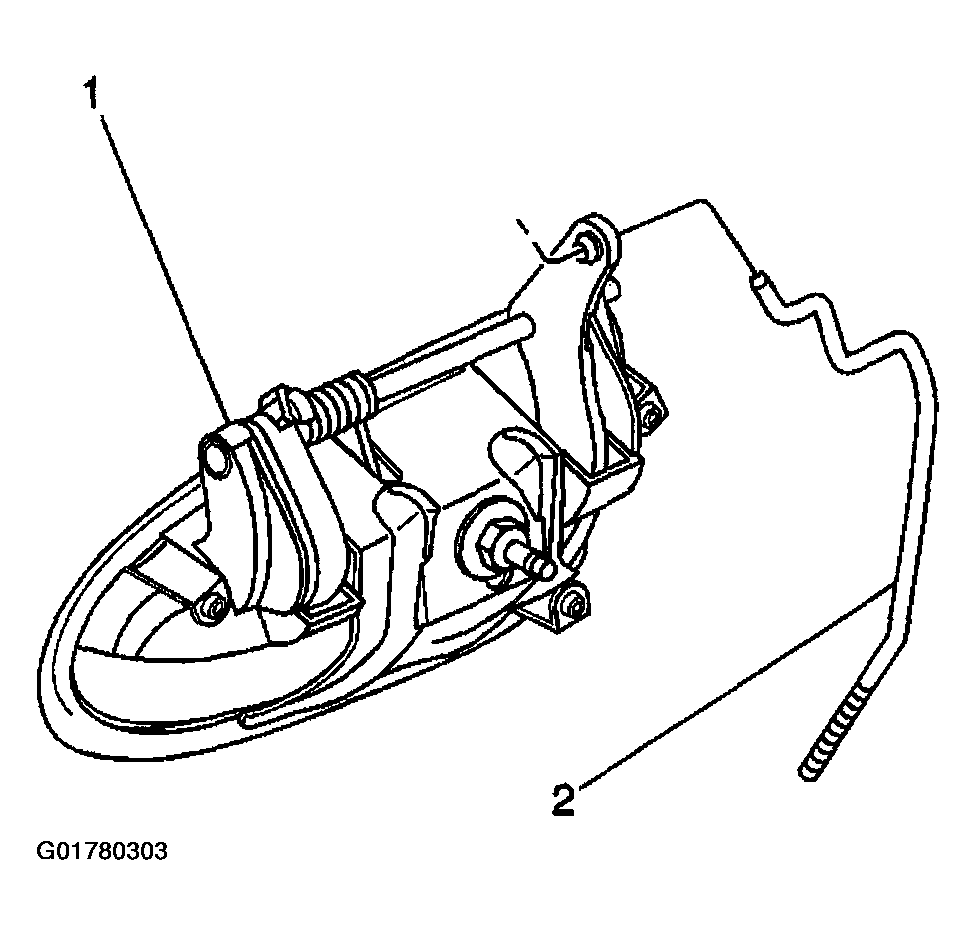

    Fig 2: Removing Door Handle
    G01780303Courtesy of GENERAL MOTORS CORP.
