Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Raise the rear door window to the full up position.
Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
Remove the screws (2) securing the rear door lock(1).

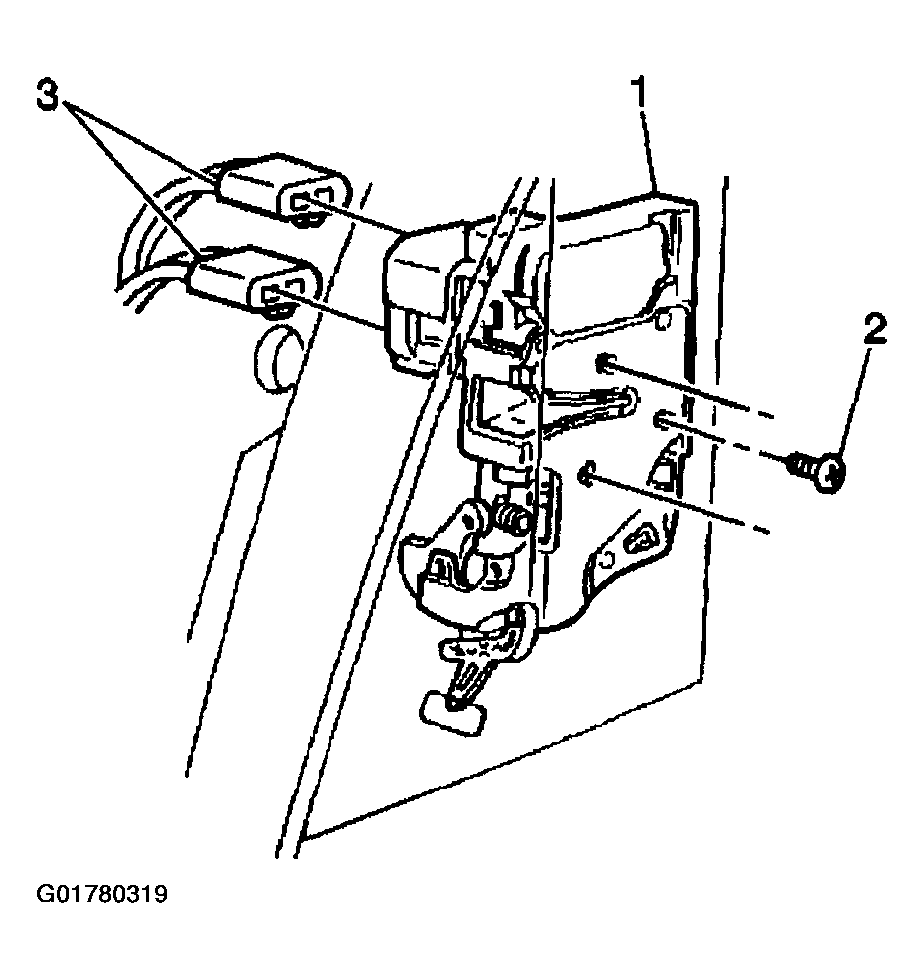

Fig 1: Removing Rear Door Lock Screws
Courtesy of GENERAL MOTORS CORP.
Remove the rear door inside handle screw (2).

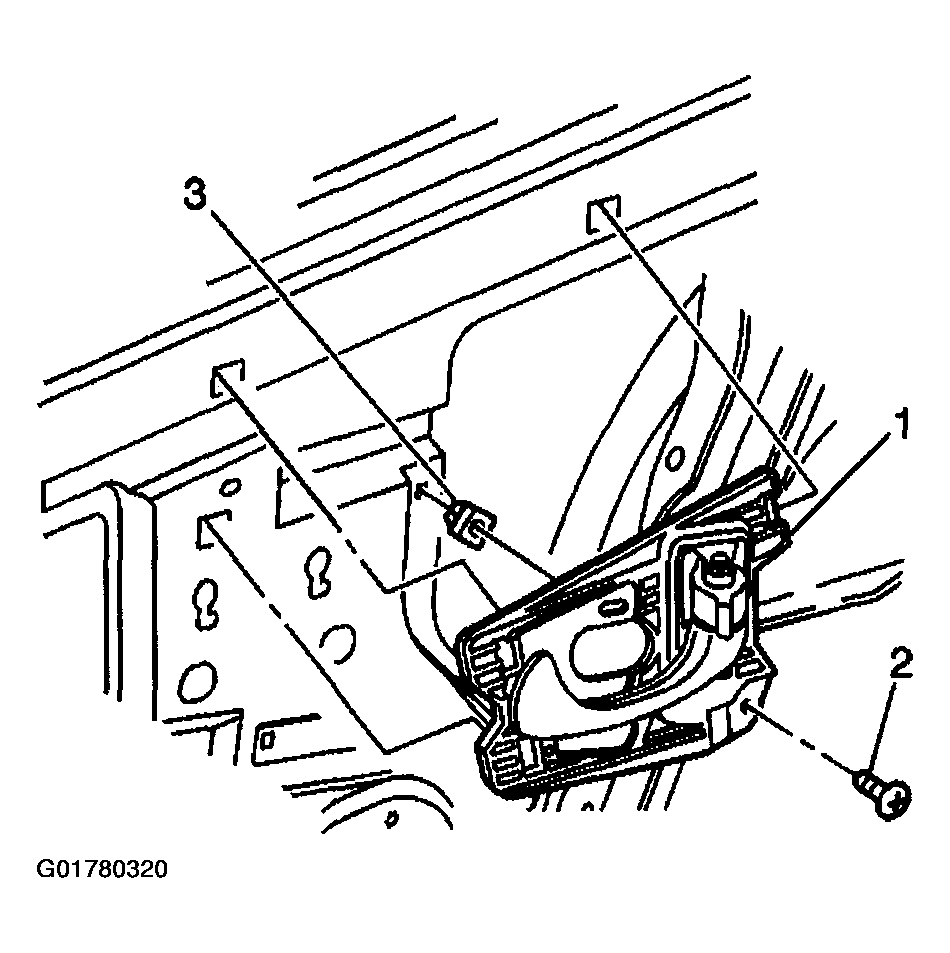

Fig 2: Removing Rear Door Inside Handle Screw
Courtesy of GENERAL MOTORS CORP.
Remove the door inside handle rod (2) from the rear door inside handle (3).
Remove the door inside locking rod (4) from the rear door inside handle (3).
Remove the rear door inside handle (3).

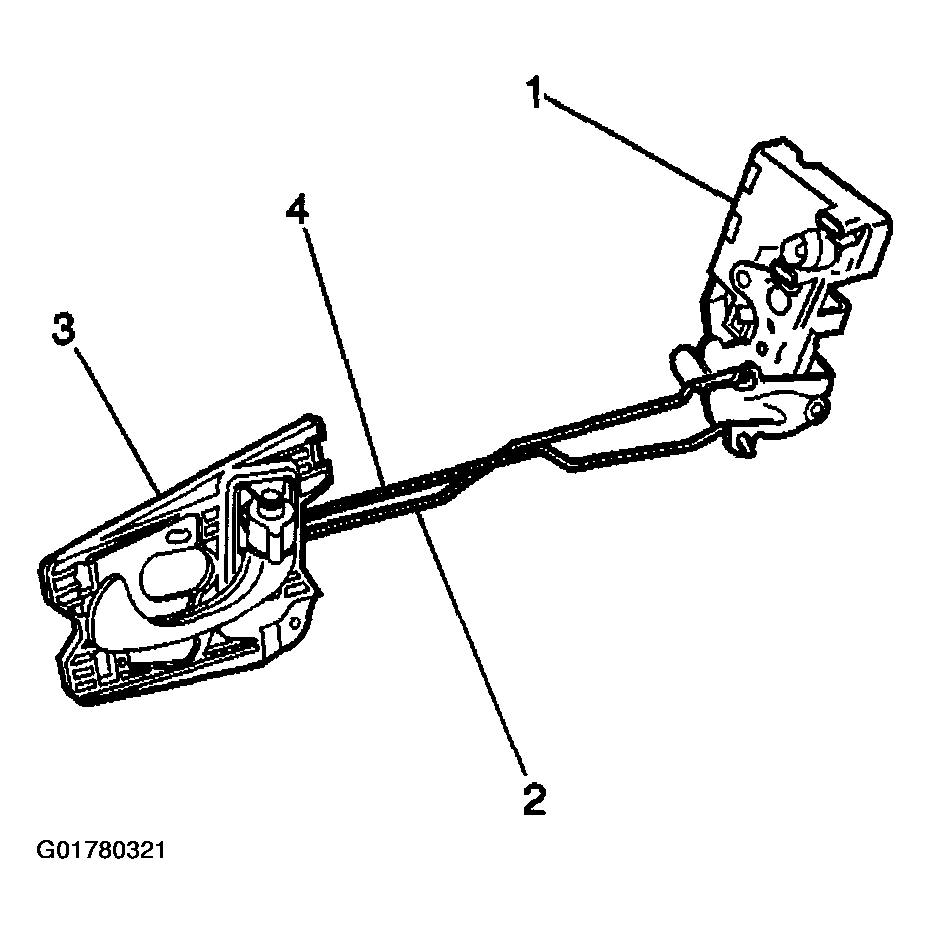

Fig 3: Removing Rear Door Inside Handle
Courtesy of GENERAL MOTORS CORP.
