Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel screw (1) from the door handle bezel (2).
  2. Remove the door handle bezel from the trim panel by lifting out at the front.

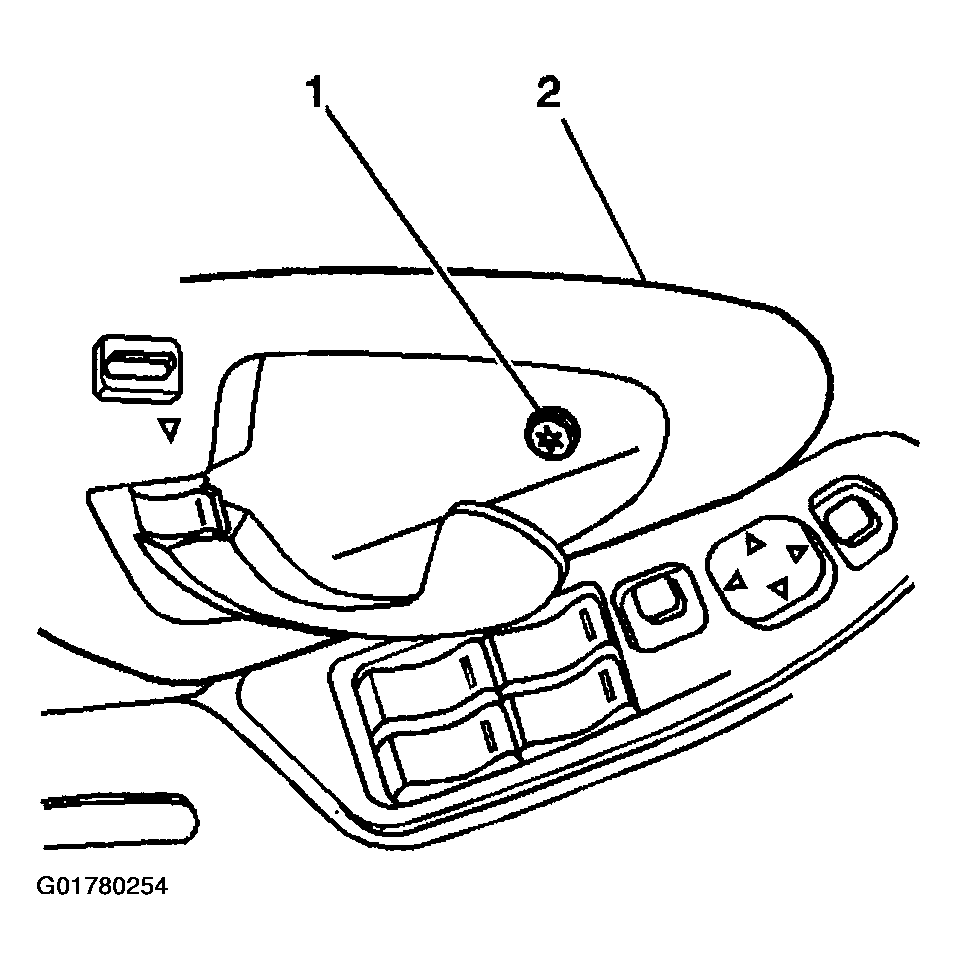

    Fig 1: Removing Door Handle Bezel Screw
    G01780254Courtesy of GENERAL MOTORS CORP.
  3. Remove the power door lock switch (2) from the door handle bezel (3) by releasing the retaining tabs if equipped.
  4. Disconnect the electrical connector (1) from the power door lock switch (2).

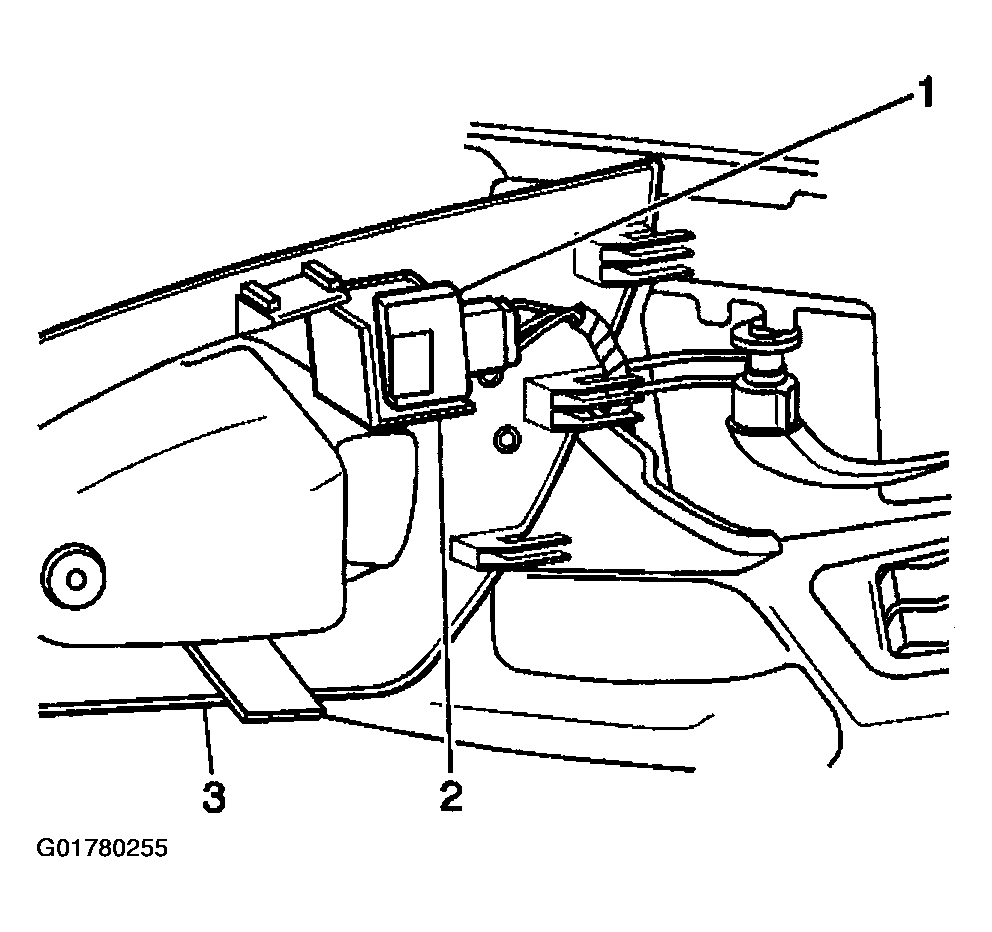

    Fig 2: Removing Power Door Lock Switch
    G01780255Courtesy of GENERAL MOTORS CORP.
