Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  2. Remove the check link bolt.

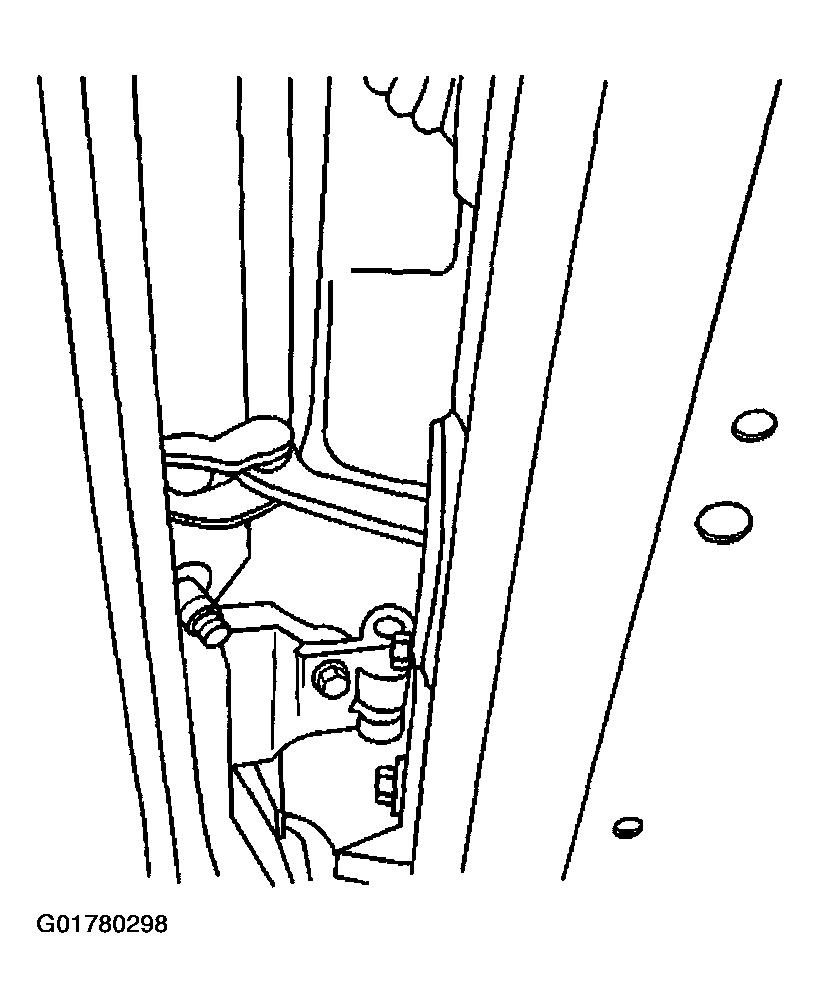

    Fig 1: Removing Rear Door Check Link Bolt
    G01780298Courtesy of GENERAL MOTORS CORP.
  3. Using a small flat-bladed tool, remove the rear door check link grommet (3).
  4. Remove the check link nuts (2).
  5. Remove the check link from the rear door.

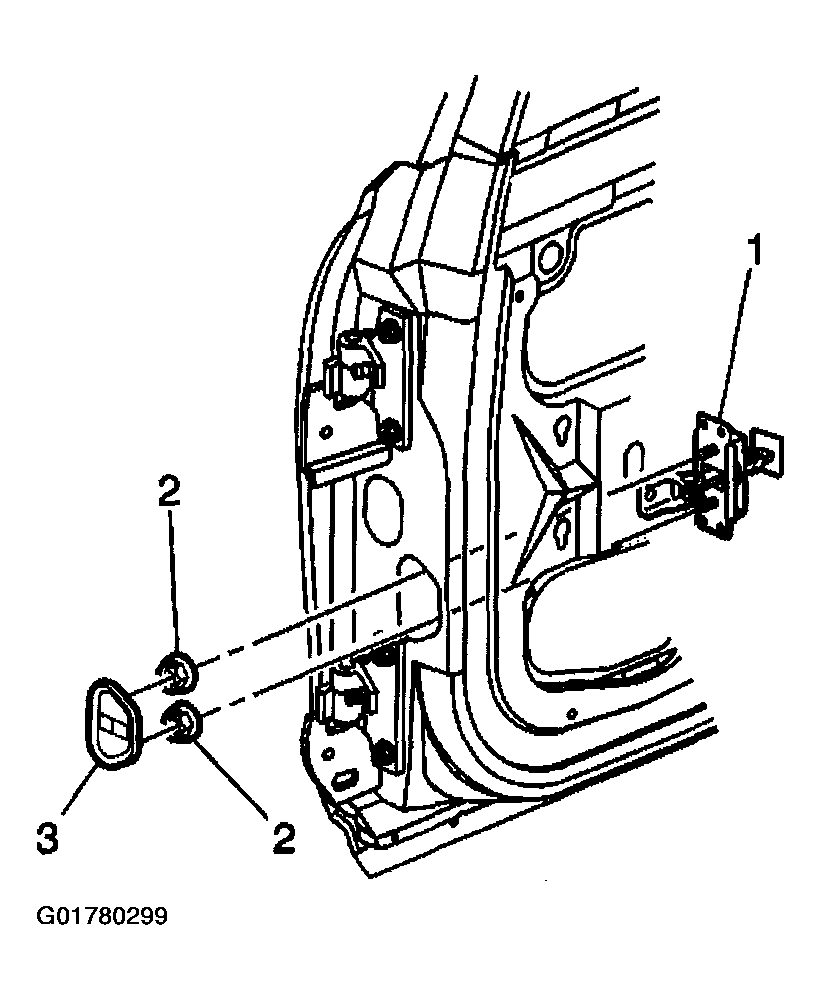

    Fig 2: Removing Rear Door Check Link
    G01780299Courtesy of GENERAL MOTORS CORP.
