Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door system locking module. Refer to Locking System Module Replacement - Front Door .
  3. Remove the front door check link bolt.

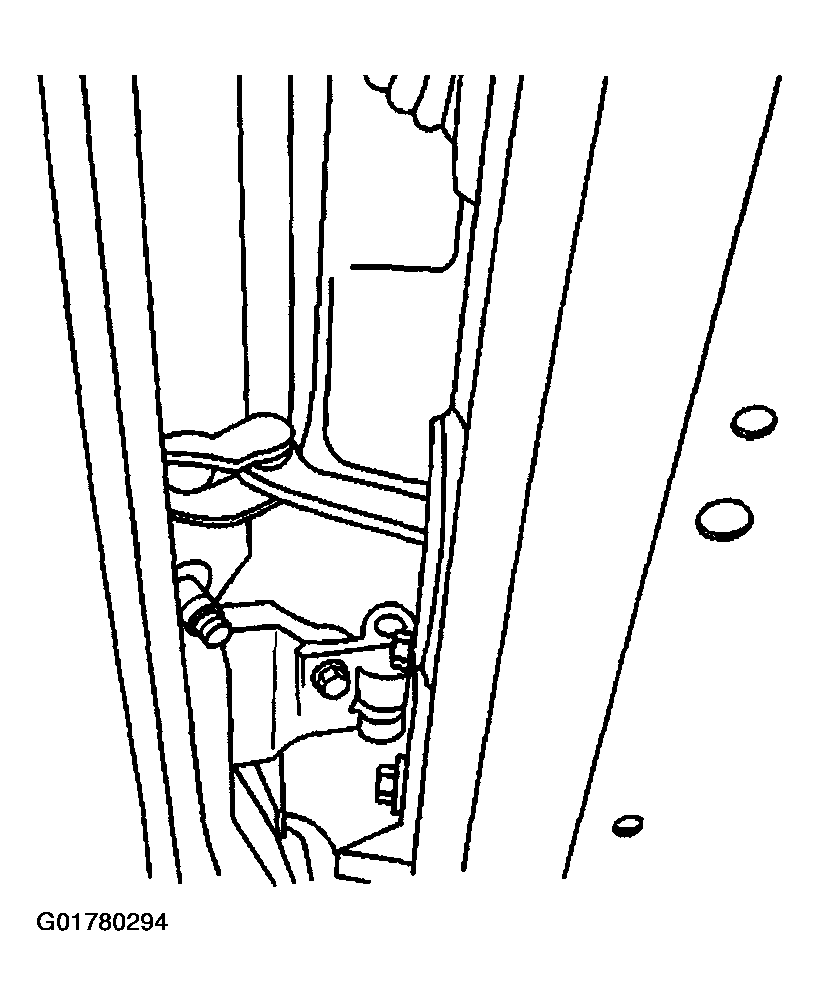

    Fig 1: Removing Front Door Check Link Bolt
    G01780294Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the front door check link grommet (3).
  5. Remove the front door check link nuts (2).
  6. Remove the front door check link (1) from the door.

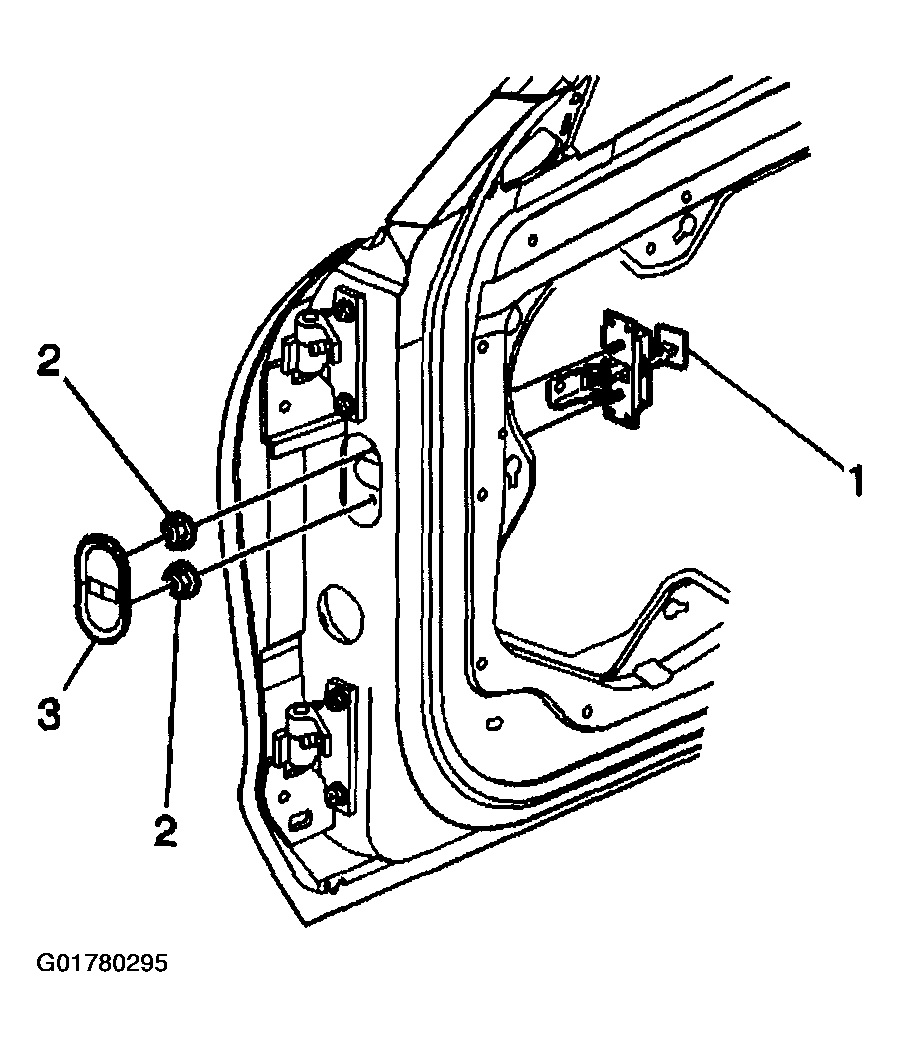

    Fig 2: Removing Front Door Check Link
    G01780295Courtesy of GENERAL MOTORS CORP.
