Power Door Locks Inoperative - Feature

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

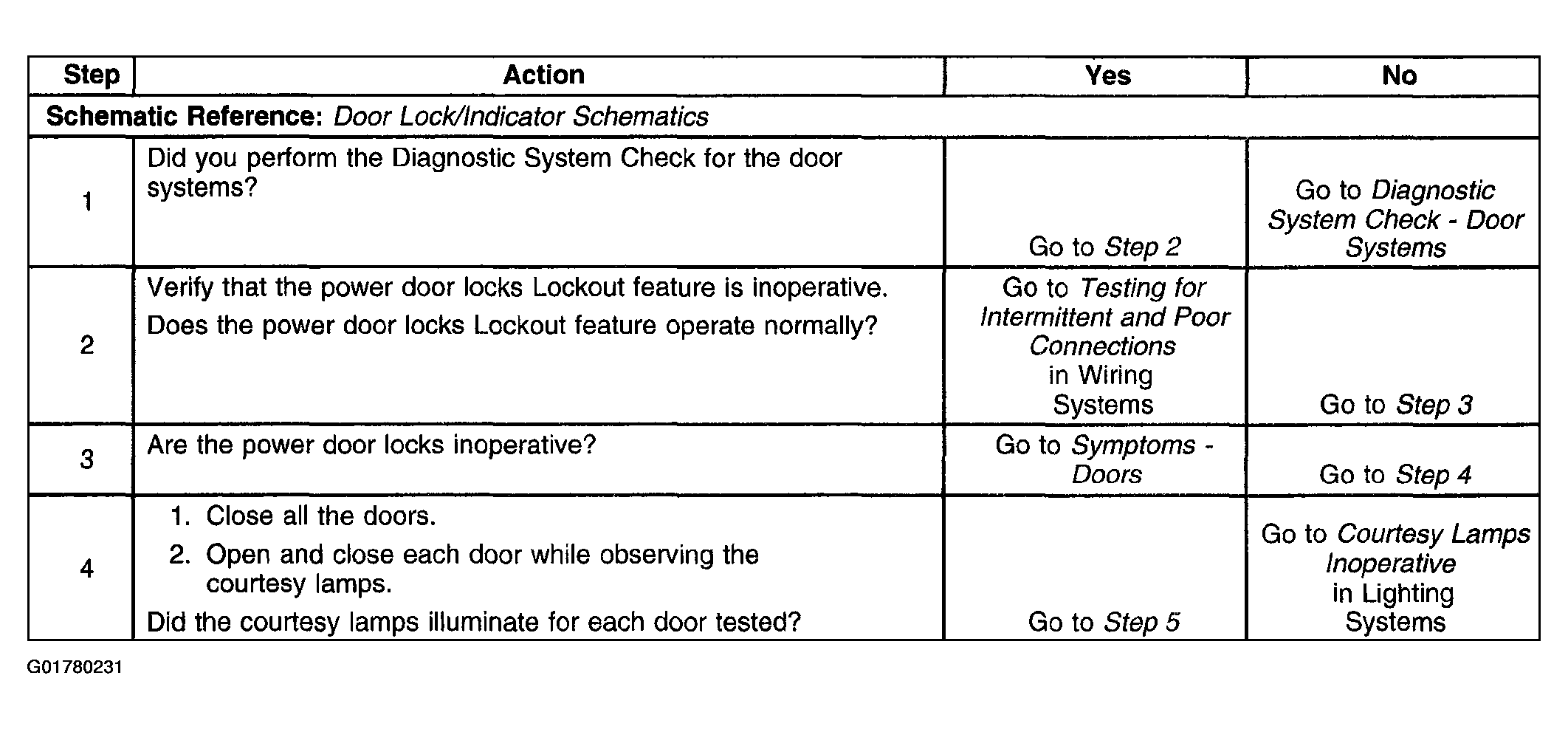

Fig 1: Identifying Power Door Locks Inoperative - Feature Diagnostic Tables (1 Of 2)
G01780231Courtesy of GENERAL MOTORS CORP.

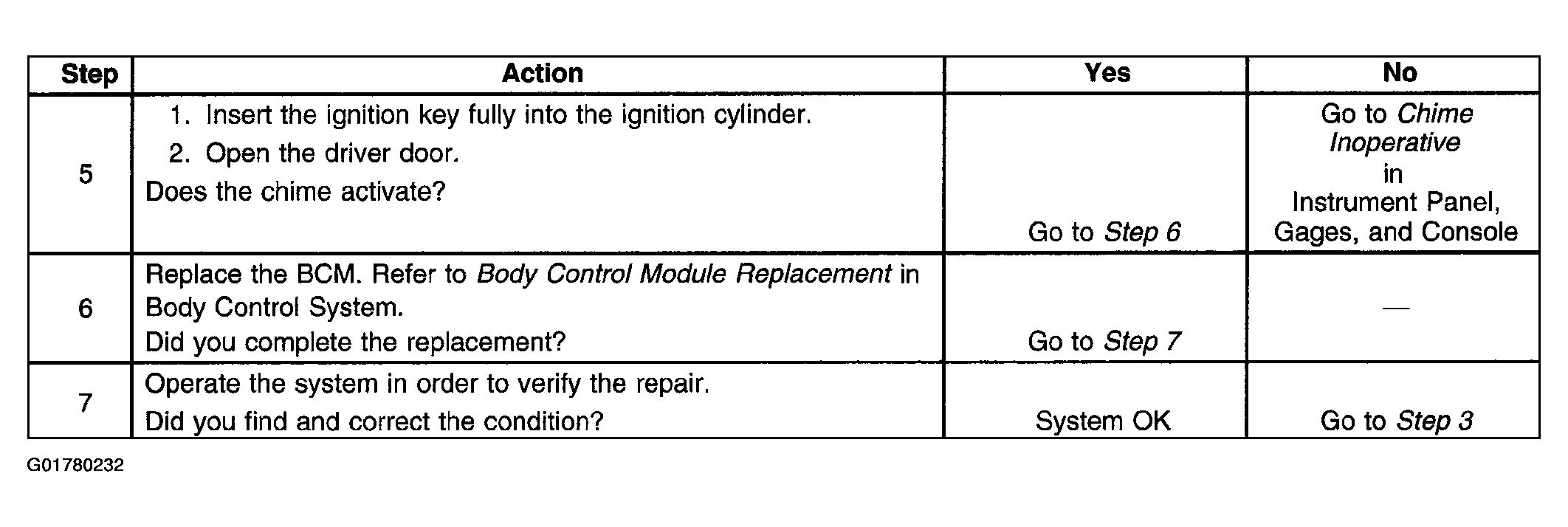

Fig 2: Identifying Power Door Locks Inoperative - Feature Diagnostic Tables (2 Of 2)
G01780232Courtesy of GENERAL MOTORS CORP.
