Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the cargo net from the retainers.
  3. Remove the cargo net retainers.
  4. Pull back the rear compartment trim to access the tail lamp nuts.
  5. Remove the tail lamp nuts.

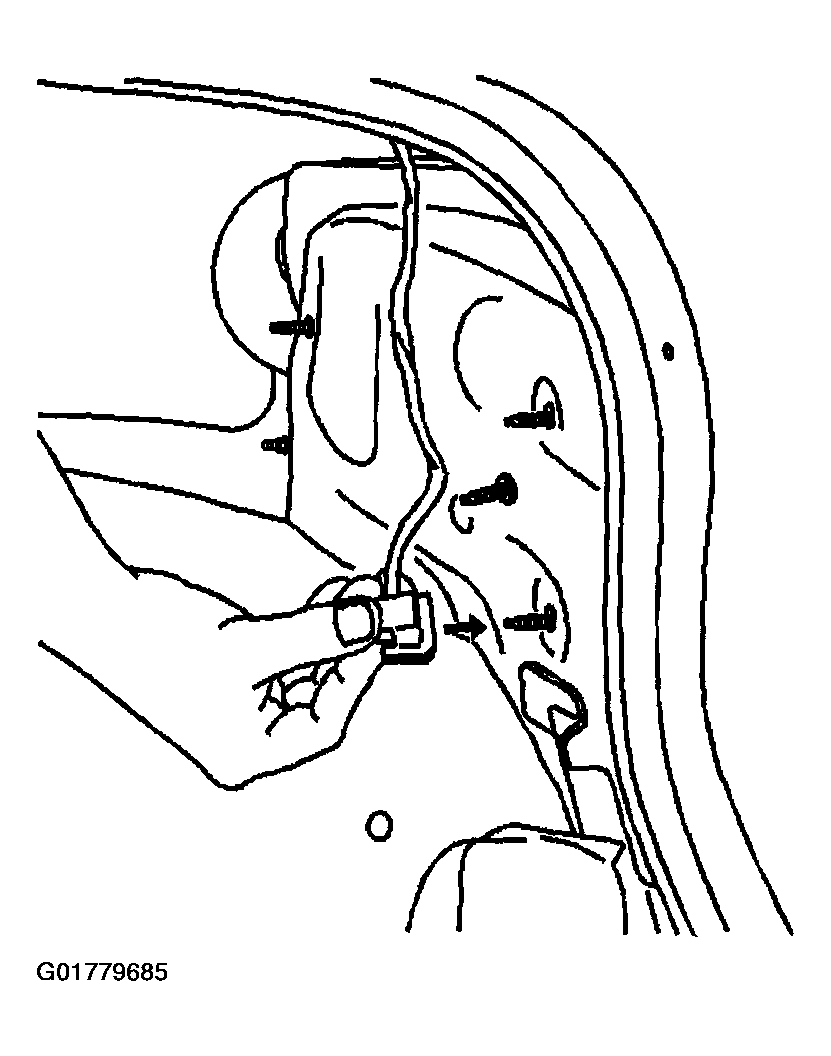

    Fig 1: Removing Tail Lamp Nuts
    G01779685Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the tail lamp electrical connector from the tail lamp.

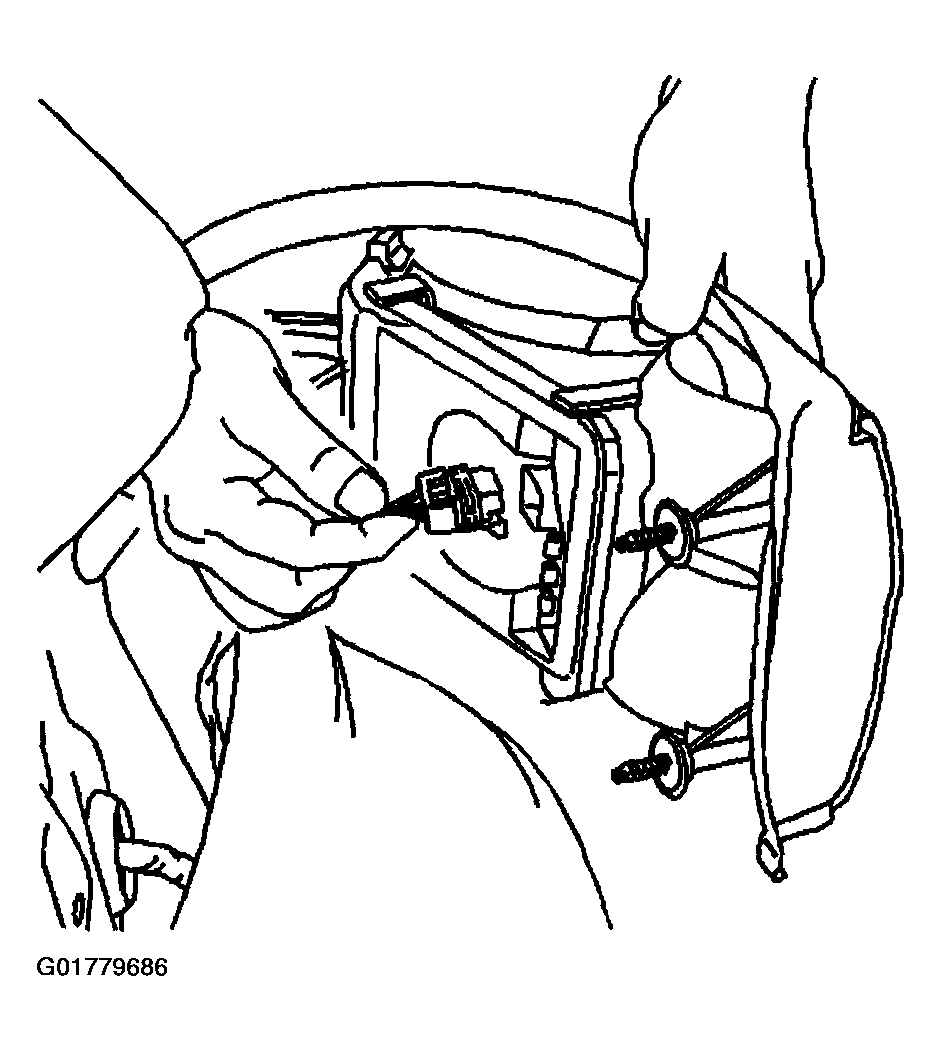

    Fig 2: Disconnecting Tail Lamp Electrical Connector
    G01779686Courtesy of GENERAL MOTORS CORP.
  7. Release the tabs to remove the circuit board from the tail lamp.
  8. Pull the bulbs from the sockets.

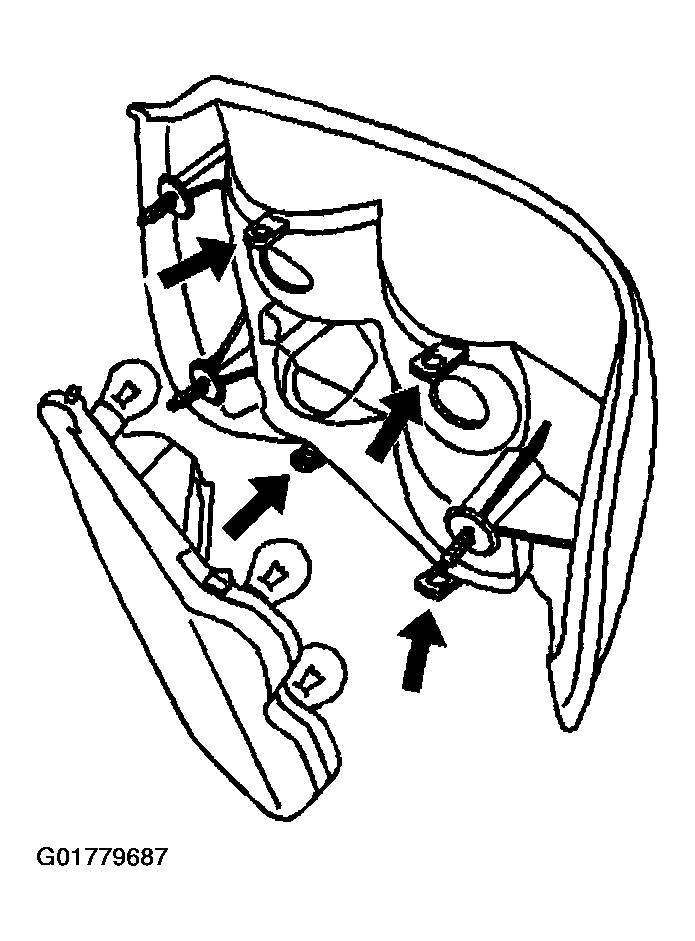

    Fig 3: Removing Tail Lamp Bulbs
    G01779687Courtesy of GENERAL MOTORS CORP.
