Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side marker lamp screw (1) from the sidemarker lamp (2).
  2. Remove the sidemarker lamp (2) from the front fascia panel (5).
  3. Remove the socket (4) from the sidemarker lamp (2).
  4. Remove the bulb (3) from the socket (4).

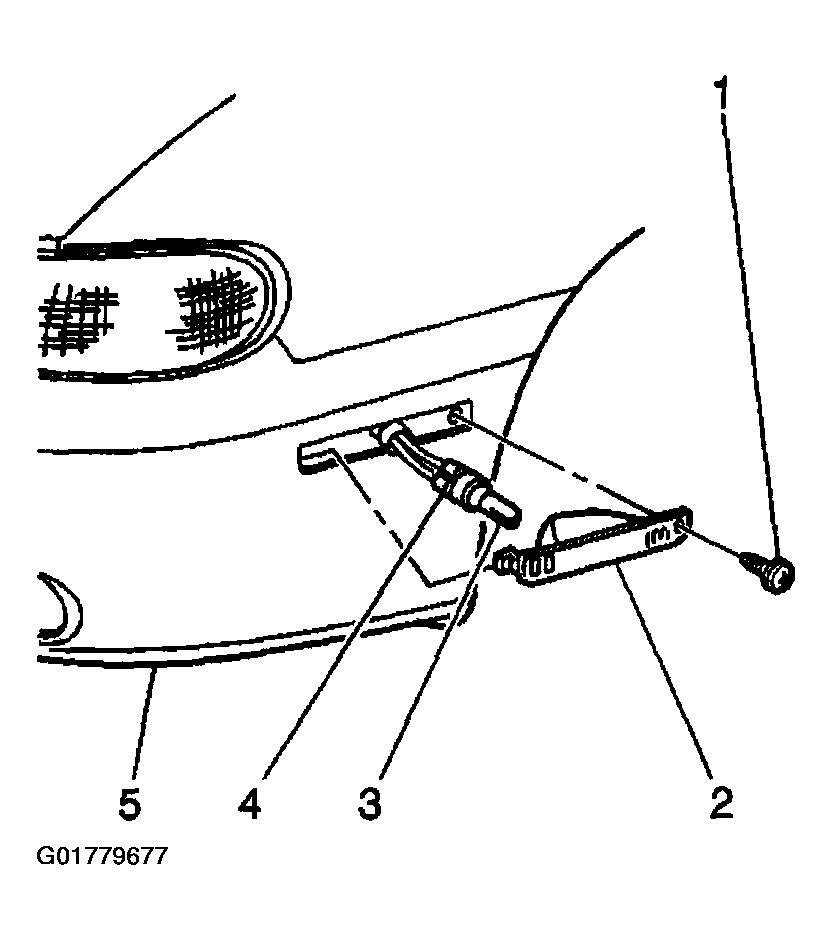

    Fig 1: Removing Front Side Marker Lamp
    G01779677Courtesy of GENERAL MOTORS CORP.
