Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stop lamp to the spoiler.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the spoiler mounted stop lamp retaining screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the spoiler. Refer to SPOILER REPLACEMENT - REAR in Body Rear End.

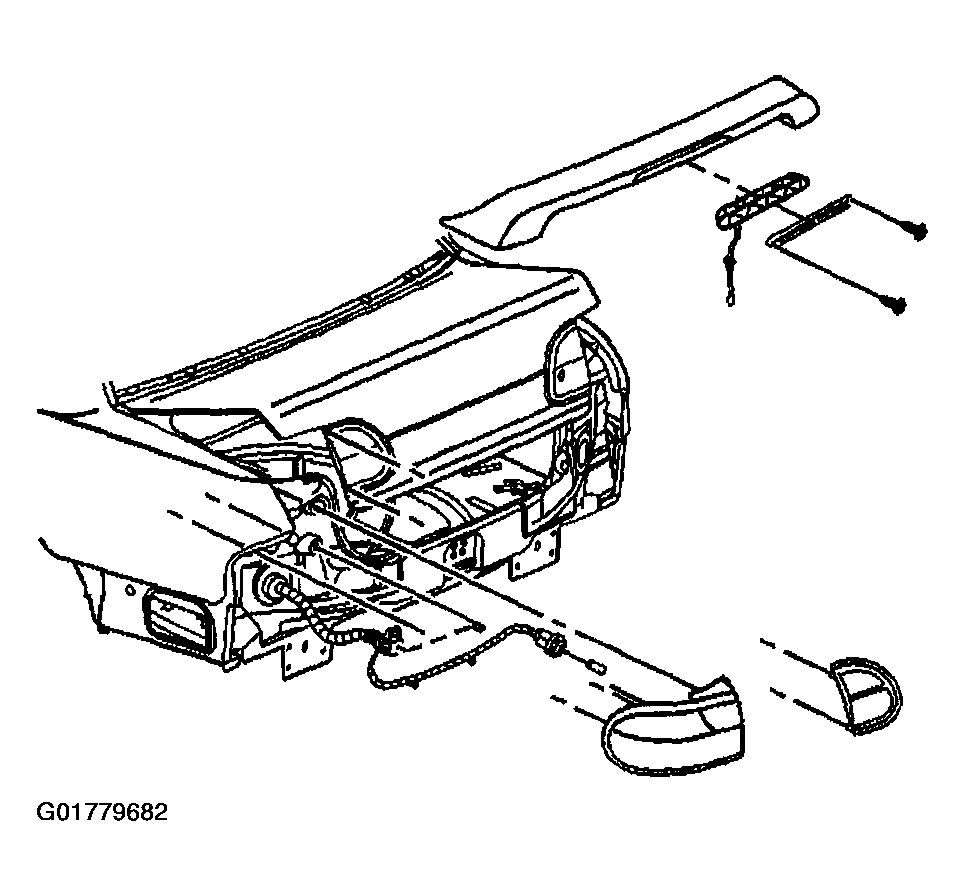

    Fig 1: High Mounted Stop Lamp (Spoiler Mounted)
    G01779682Courtesy of GENERAL MOTORS CORP.
