Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear panel trim. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
  2. Lift the retainers. Slide the tabs from the slots.
  3. Remove the high mount stop lamp (1) from the rear package shelf (2).
  4. Disconnect the electrical connector from the stop lamp (1).

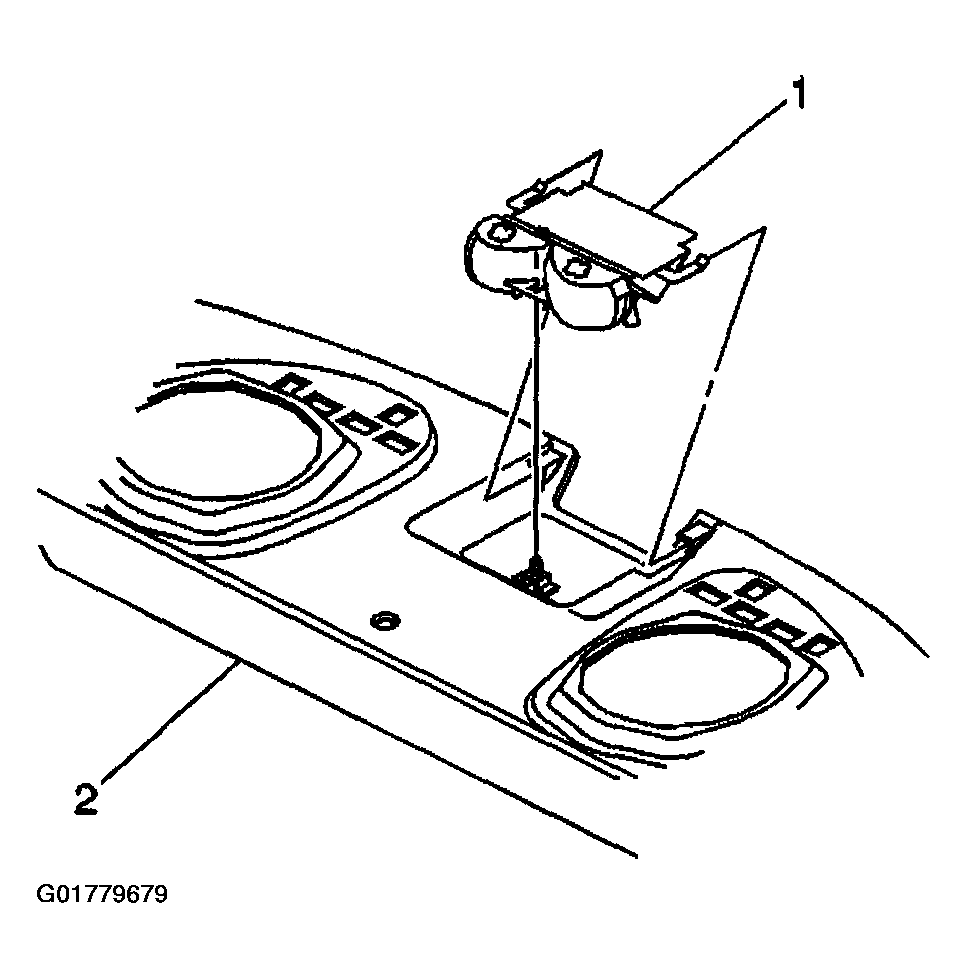

    Fig 1: Removing High Mounted Stop Lamp
    G01779679Courtesy of GENERAL MOTORS CORP.
