Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the stop lamp (1).
  2. Push the high mount stop lamp (1) tabs downward into the slots until the tabs are secure.
  3. Install the rear panel trim. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .

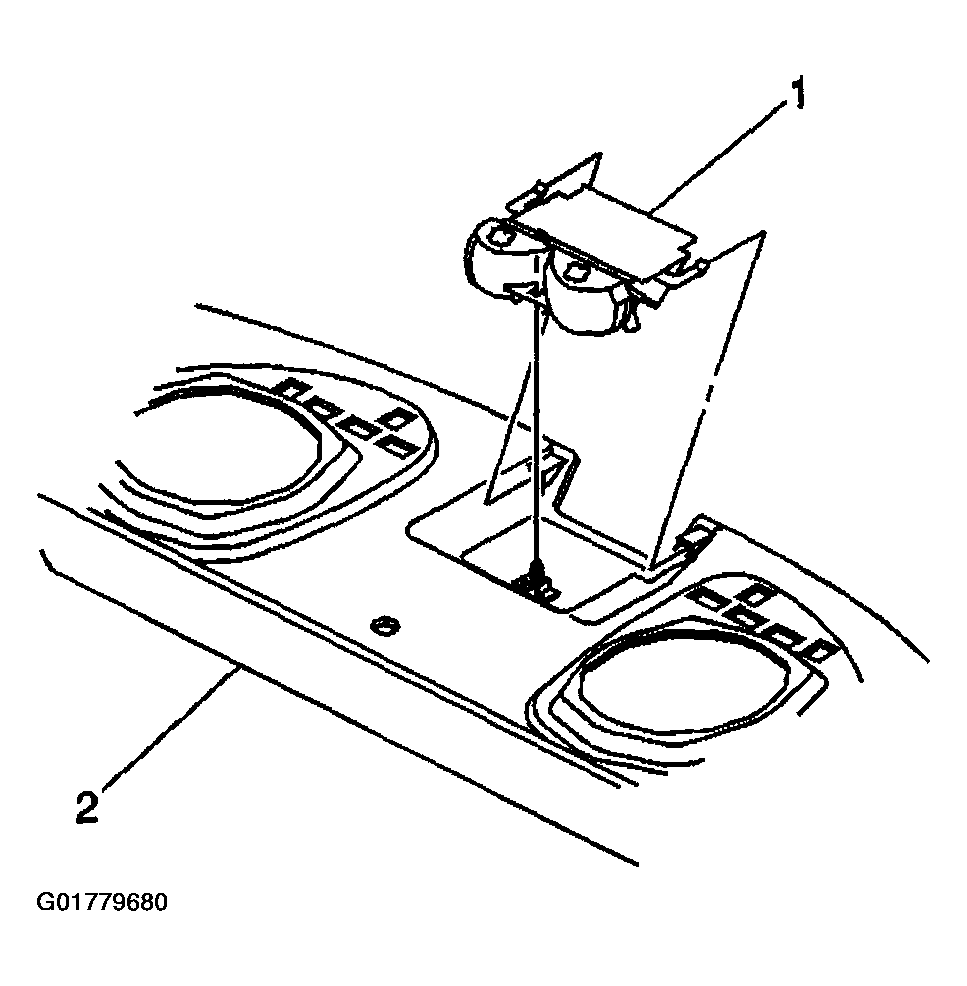

    Fig 1: Installing High Mounted Stop Lamp
    G01779680Courtesy of GENERAL MOTORS CORP.
