Headlamp Aiming Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Measure from the floor to the center of the headlamp bulb. Some headlamps have an aim dot marked on the headlamp lens.
  3. At the screen, measure from the floor and place the horizontal tape at the measured distance.
  4. Measure from the reference line on the floor to the left headlamp bulb centerline.
  5. At the screen, measure from the reference line and place the vertical tape at the measured distance.
  6. Measure from the reference line on the floor to the right headlamp bulb centerline.
  7. At the screen, measure from the reference line and place the vertical tape at the measured distance.
    Fig 1: Identifying Aiming Procedure Distances
    G01779669Courtesy of GENERAL MOTORS CORP.

    Important:  DO NOT cover the headlamp, this may cause excessive heat build up.

  8. Turn on the low beam headlamps and block the light from projecting onto the screen from the passenger side headlamp.

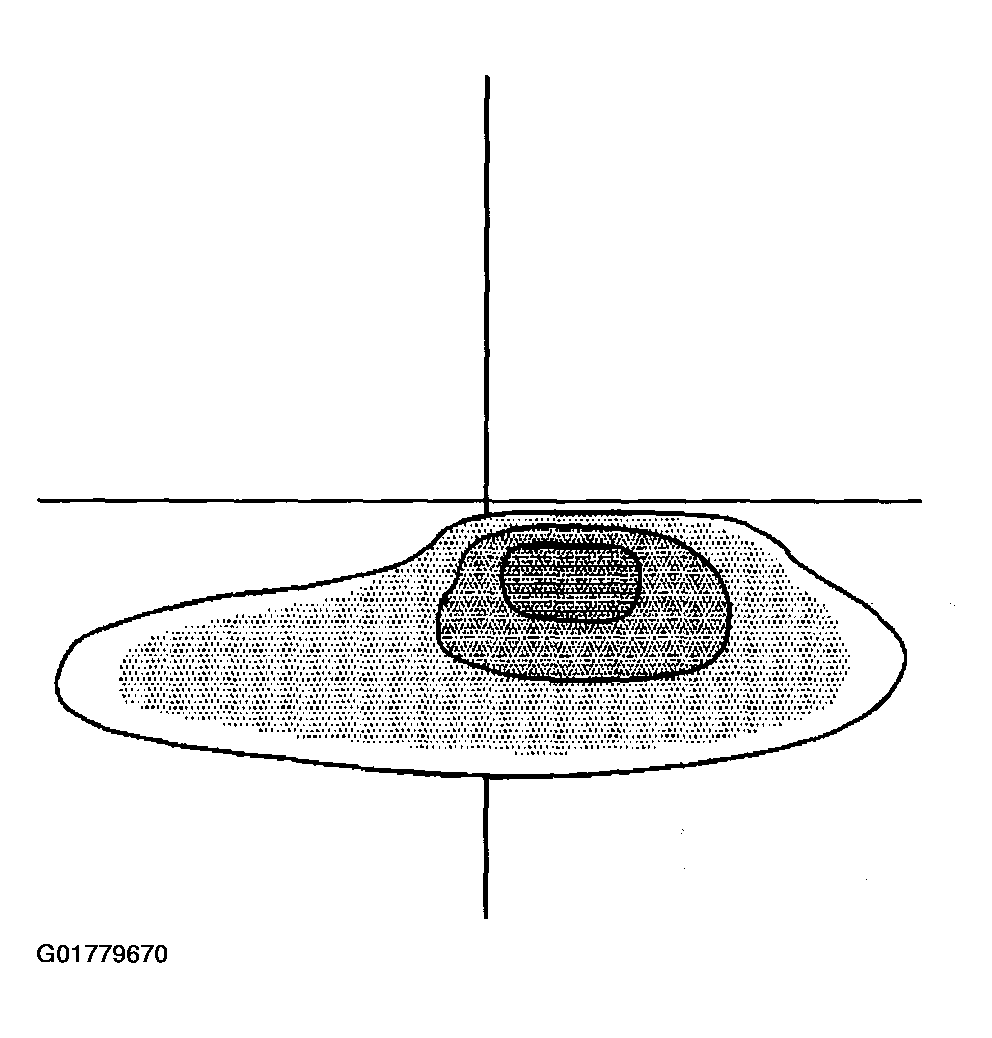

    Fig 2: Identifying Illuminated Headlamp Screen Position
    G01779670Courtesy of GENERAL MOTORS CORP.
  9. Adjust the horizontal aim screw (2) and vertical aim screw (3) of the headlamps to the specifications required by the state and the local authorities, or as shown in step number 8.
    10. Fig 3: Identifying Headlamp Adjustment Screws
    G01779671Courtesy of GENERAL MOTORS CORP.
  10. Repeat the aiming procedure for the passenger side headlamp while blocking the light from projecting onto the screen from the driver side headlamp.
  11. Turn the headlamps OFF.
  12. Close the hood.
