Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
  2. Remove the instrument panel (IP) cluster trim plate from the IP carrier. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
  3. Disconnect the dimmer switch electrical connector if required.
  4. Disconnect the hazard warning switch electrical connector.
  5. With a small flat-bladed tool release the retaining tabs for the hazard warning switch.
  6. From the back side of the IP cluster trim plate, push the hazard warning switch in a outward motion.

This will remove the switch from the IP cluster trim plate.

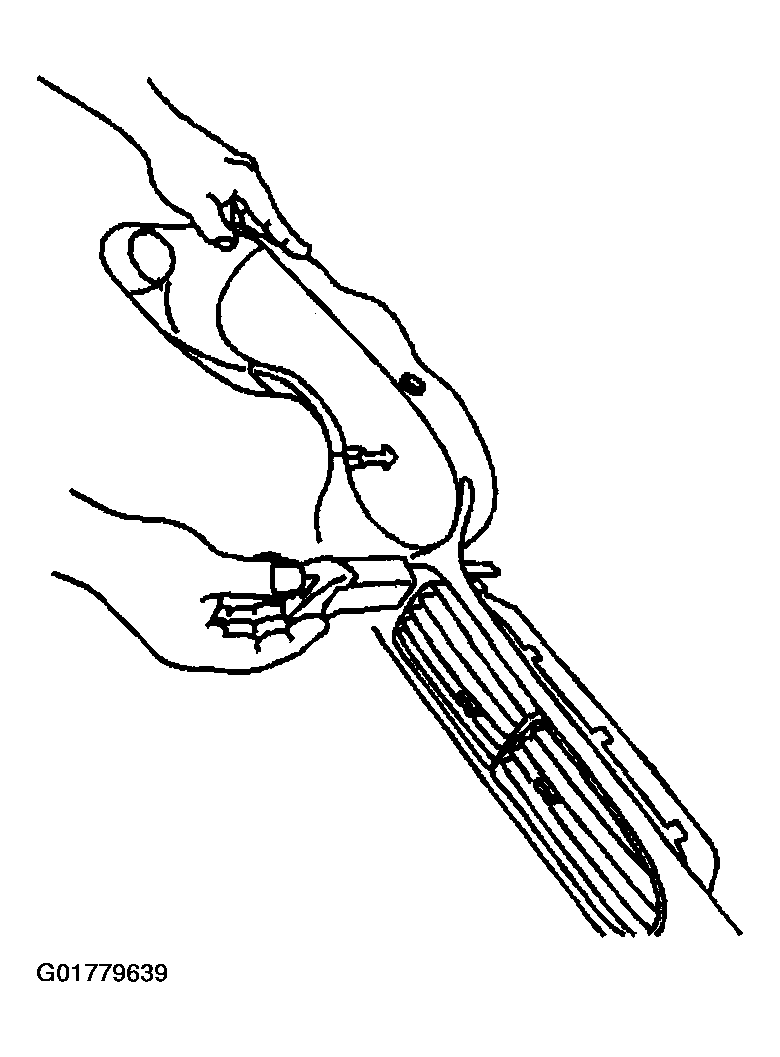

Fig 1: Removing Hazard Warning Switch
G01779639Courtesy of GENERAL MOTORS CORP.
