Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hazard warning switch to the opening in the IP cluster trim plate.
  2. Push inward on the hazard warning switch until fully seated into IP cluster trim plate.
  3. Connect the hazard warning switch electrical connector.
  4. Connect the dimmer switch electrical connector if required.
  5. Install the IP cluster trim plate to the IP carrier. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
  6. Enable the SIR. Refer to ACTIVATING SYSTEM in SIR.

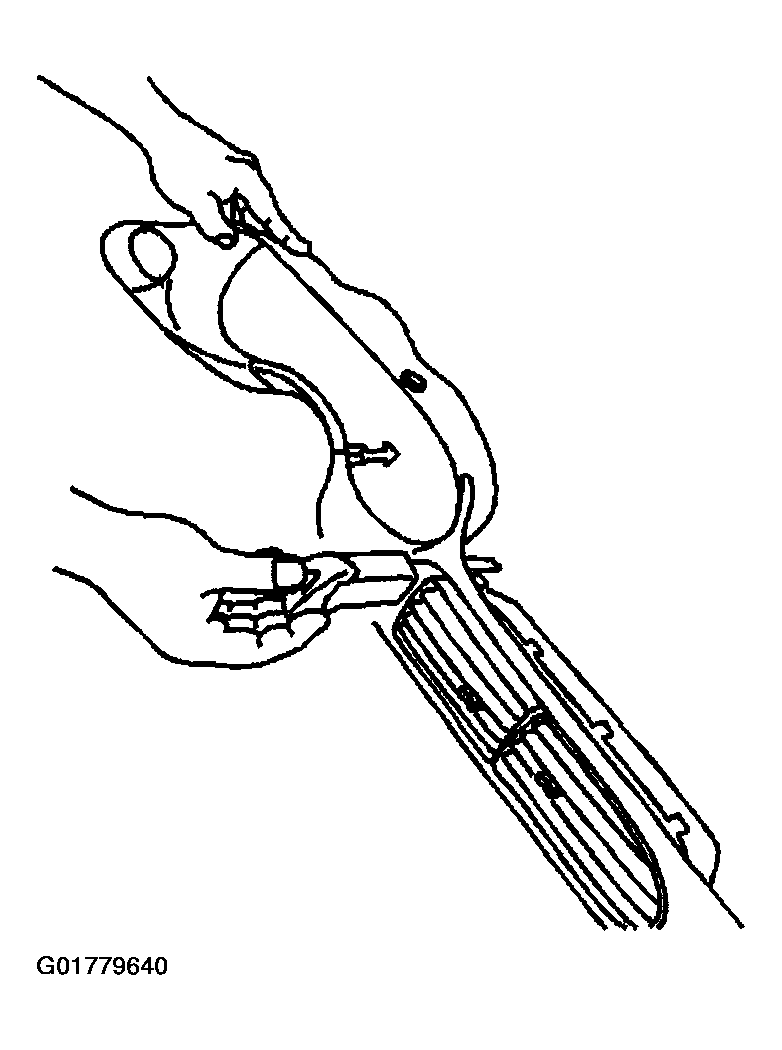

    Fig 1: Installing Hazard Warning Switch
    G01779640Courtesy of GENERAL MOTORS CORP.
