Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove enough of the wheelhouse splash shield to access the fog lamp. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
  2. Disconnect the electrical connector from the fog lamp bulb/socket.
    WARNING: Refer to HALOGEN BULB CAUTION in Cautions and Notices.
  3. Remove the fog lamp bulb/socket (1) from the fog lamp housing by rotating counterclockwise.

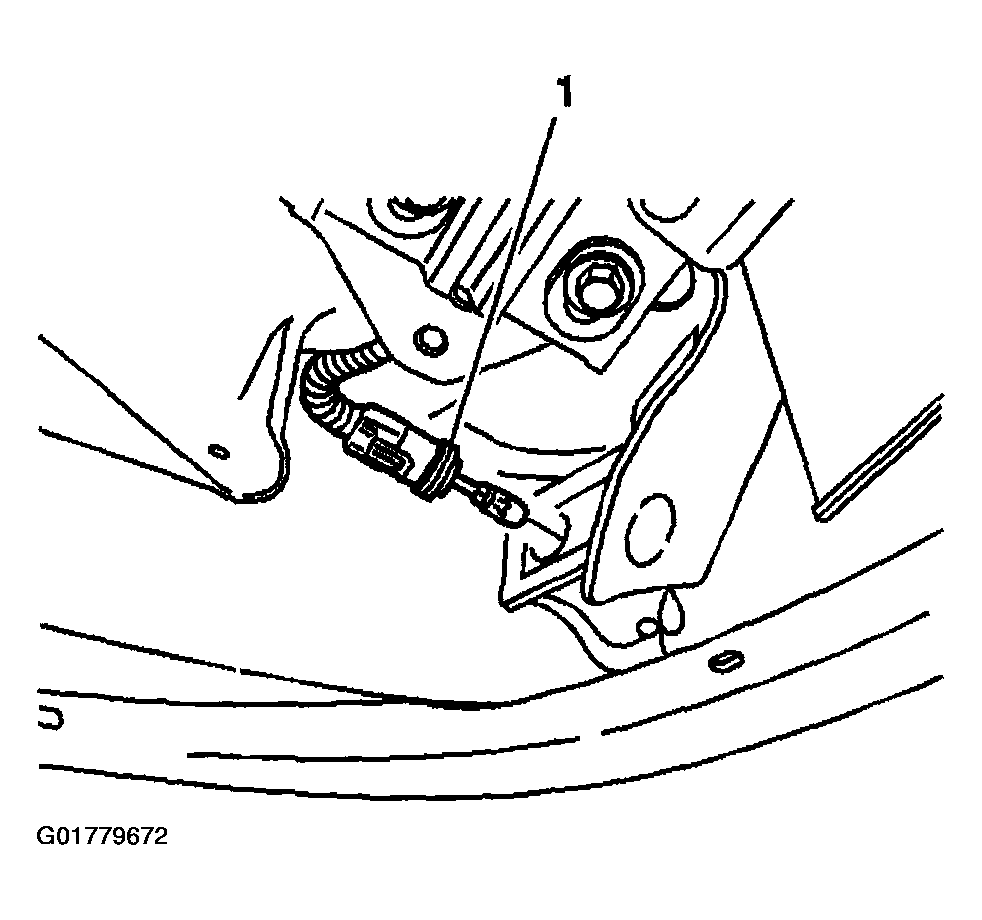

    Fig 1: Removing Fog Lamp Bulb/Socket
    G01779672Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp bolts (1).
  5. Remove the fog lamp (2) from the vehicle.

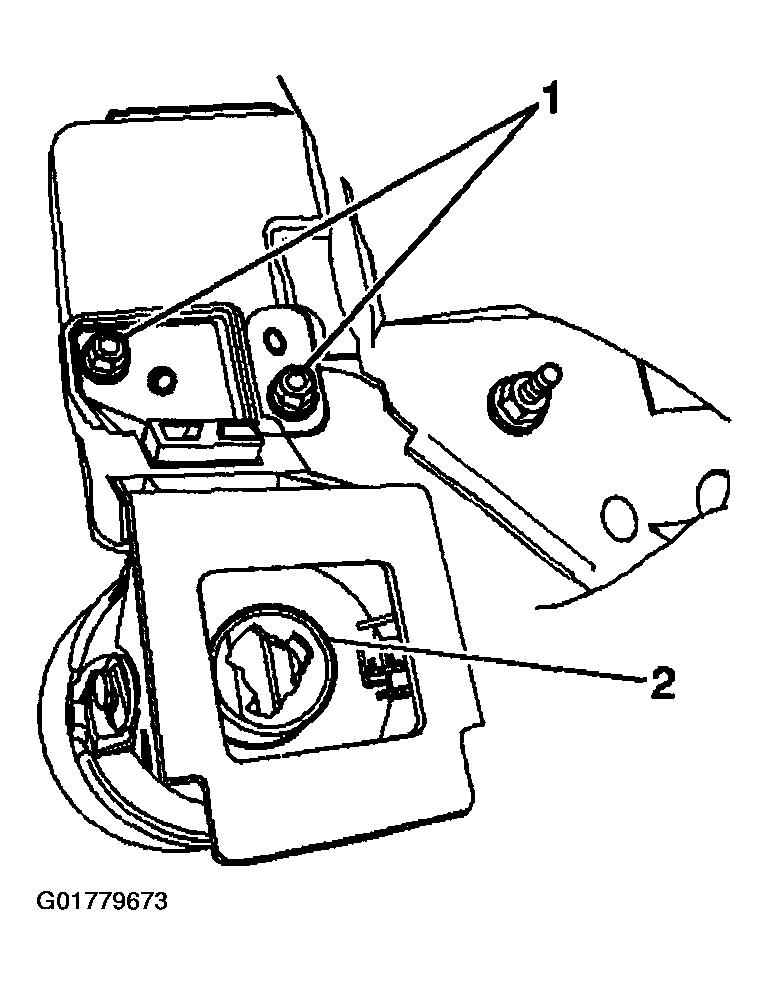

    Fig 2: Removing Fog Lamp
    G01779673Courtesy of GENERAL MOTORS CORP.
