Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dome lamp lens (1) from the dome lamp (2) with a flat bladed tool.
  2. Remove the dome lamp bulb from the socket.

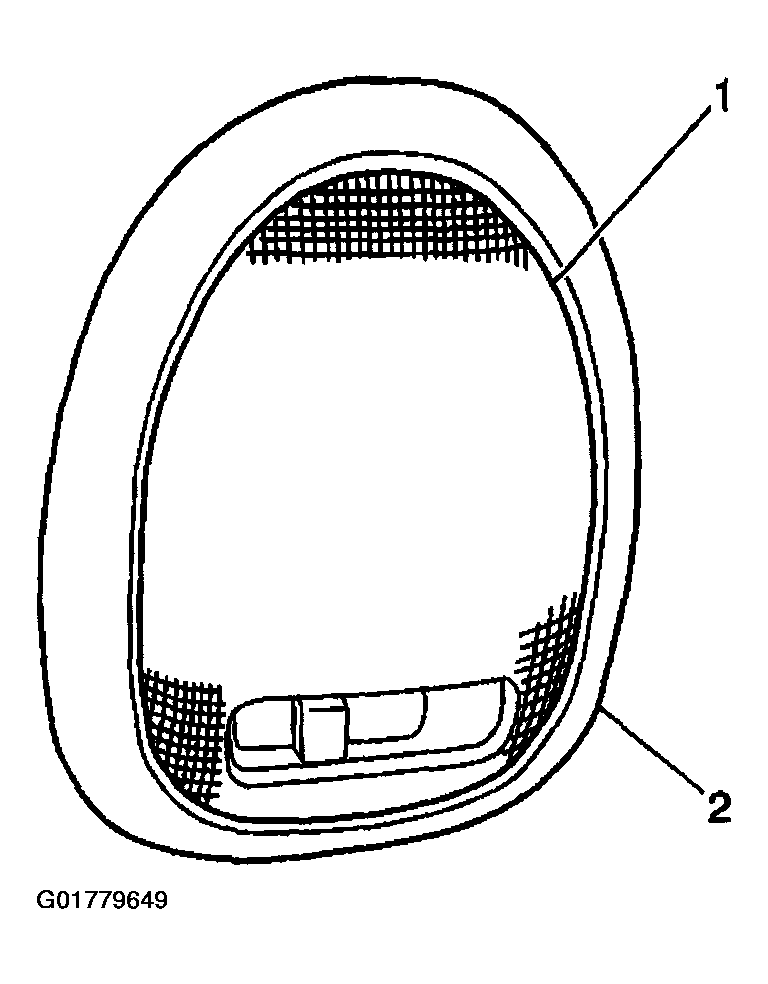

    Fig 1: Removing Dome Lamp
    G01779649Courtesy of GENERAL MOTORS CORP.
