Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the courtesy lamp socket from the IP by rotating counter clockwise.
  2. Pull the courtesy lamp bulb from the socket.

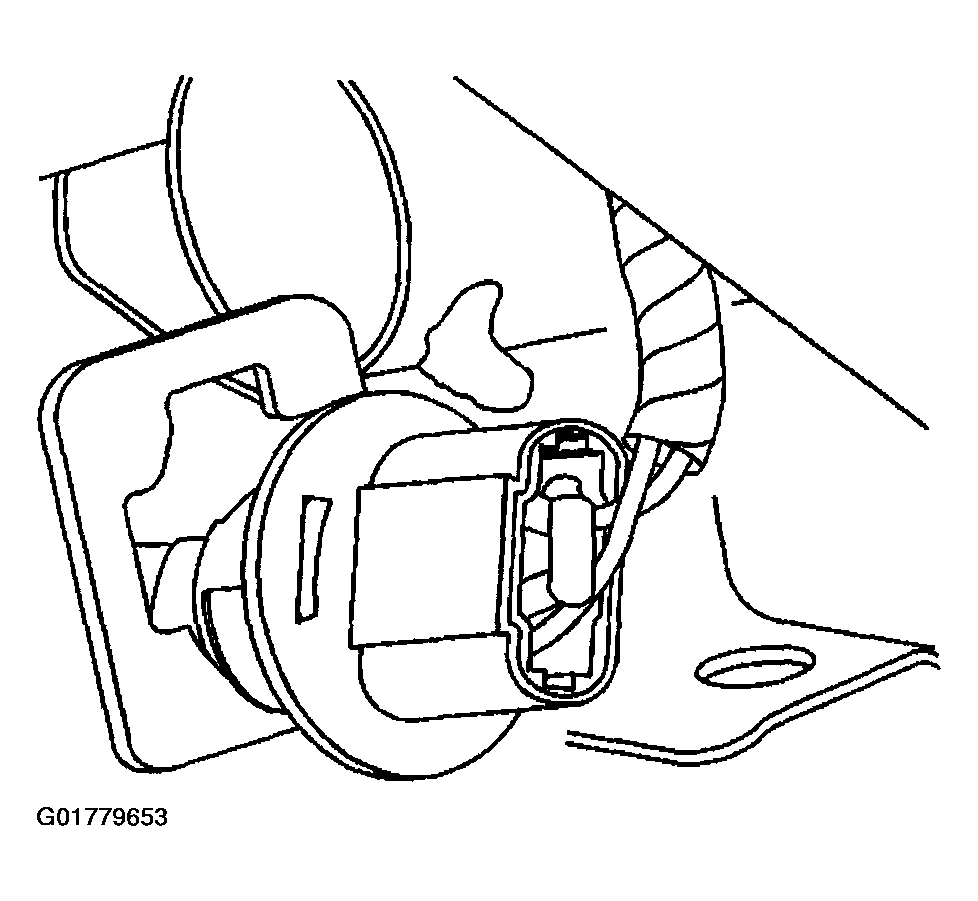

    Fig 1: Removing IP Courtesy Lamp
    G01779653Courtesy of GENERAL MOTORS CORP.
