Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the courtesy lamp bulb into the socket.
  2. Install the courtesy lamp socket into the bracket by rotating clockwise.

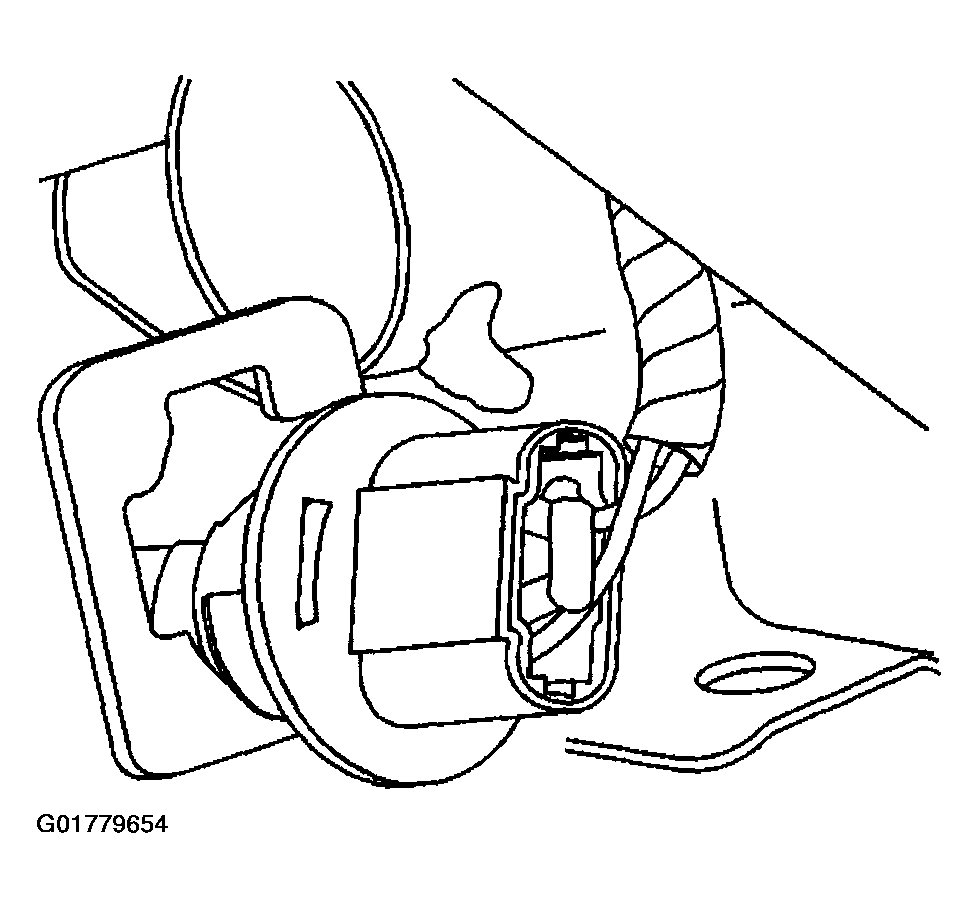

    Fig 1: Installing IP Courtesy Lamp
    G01779654Courtesy of GENERAL MOTORS CORP.
