Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cigar lighter to the accessory trim plate if required. Refer to Cigar Lighter Replacement .
  2. Connect the cigar lighter electrical connector to the cigar lighter.
  3. Align the accessory trim plate tabs to the IP carrier.
  4. Gently push the accessory trim plate into the IP carrier.

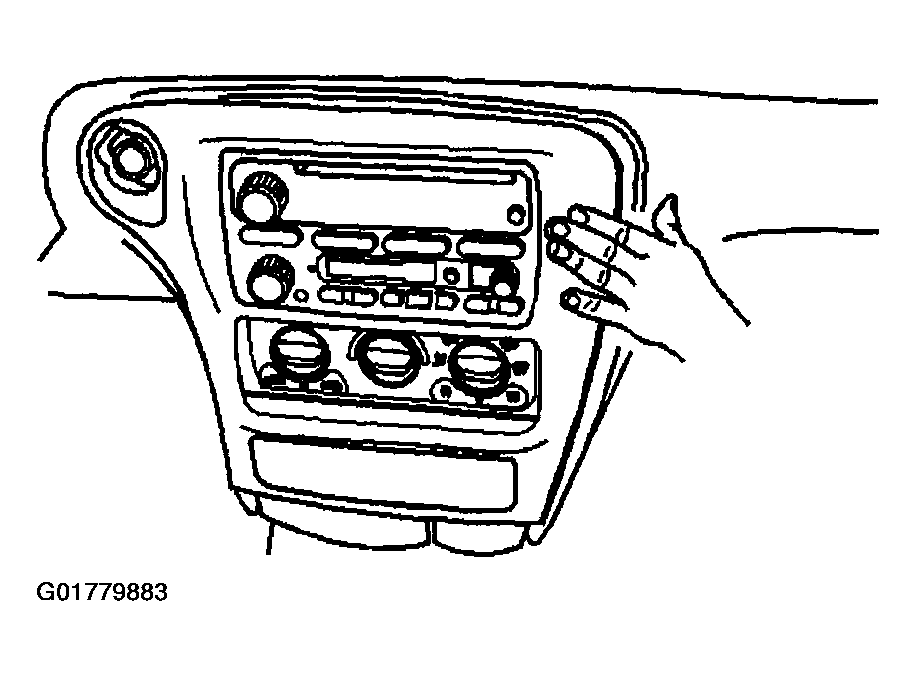

    Fig 1: Installing Accessory Trim Plate
    G01779883Courtesy of GENERAL MOTORS CORP.
  5. Install the ignition key trim cover to the ignition switch.

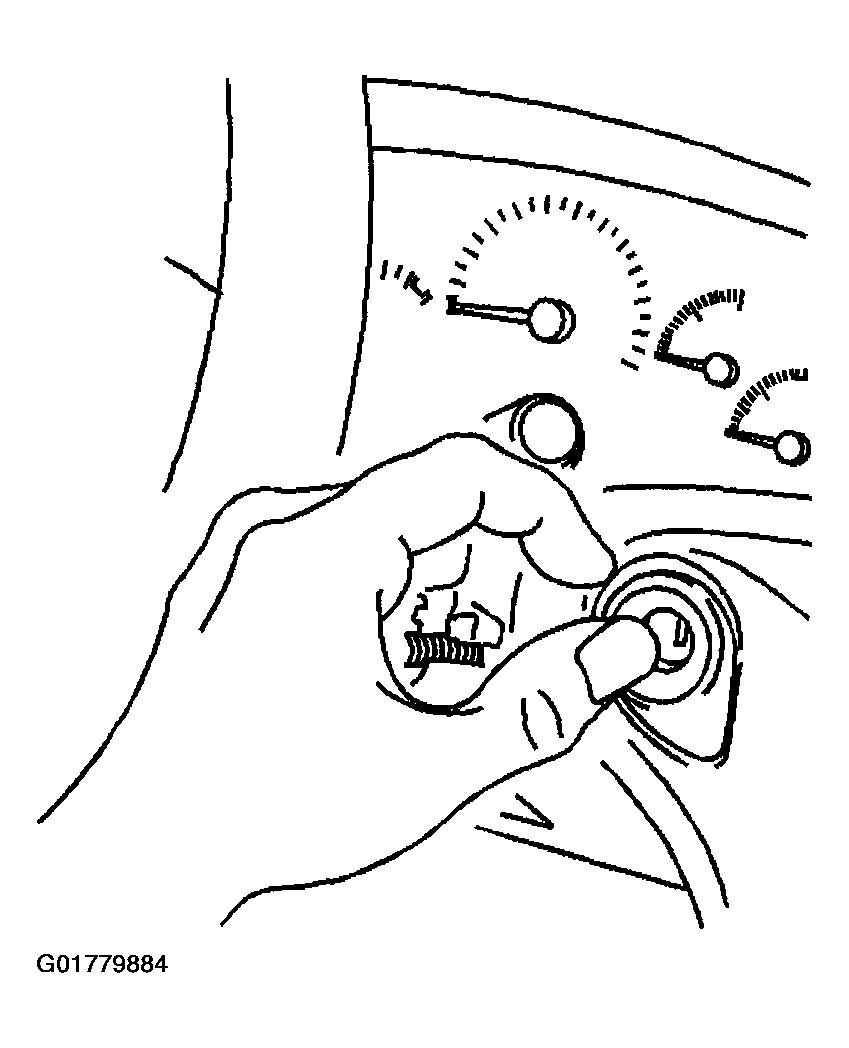

    Fig 2: Installing Ignition Key Trim Cover
    G01779884Courtesy of GENERAL MOTORS CORP.
