Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the gear selector to the neutral position.
  2. Remove the gear selector knob retainer (1), using a small flat-bladed tool.
  3. Remove the gear selector knob, by pulling upward.

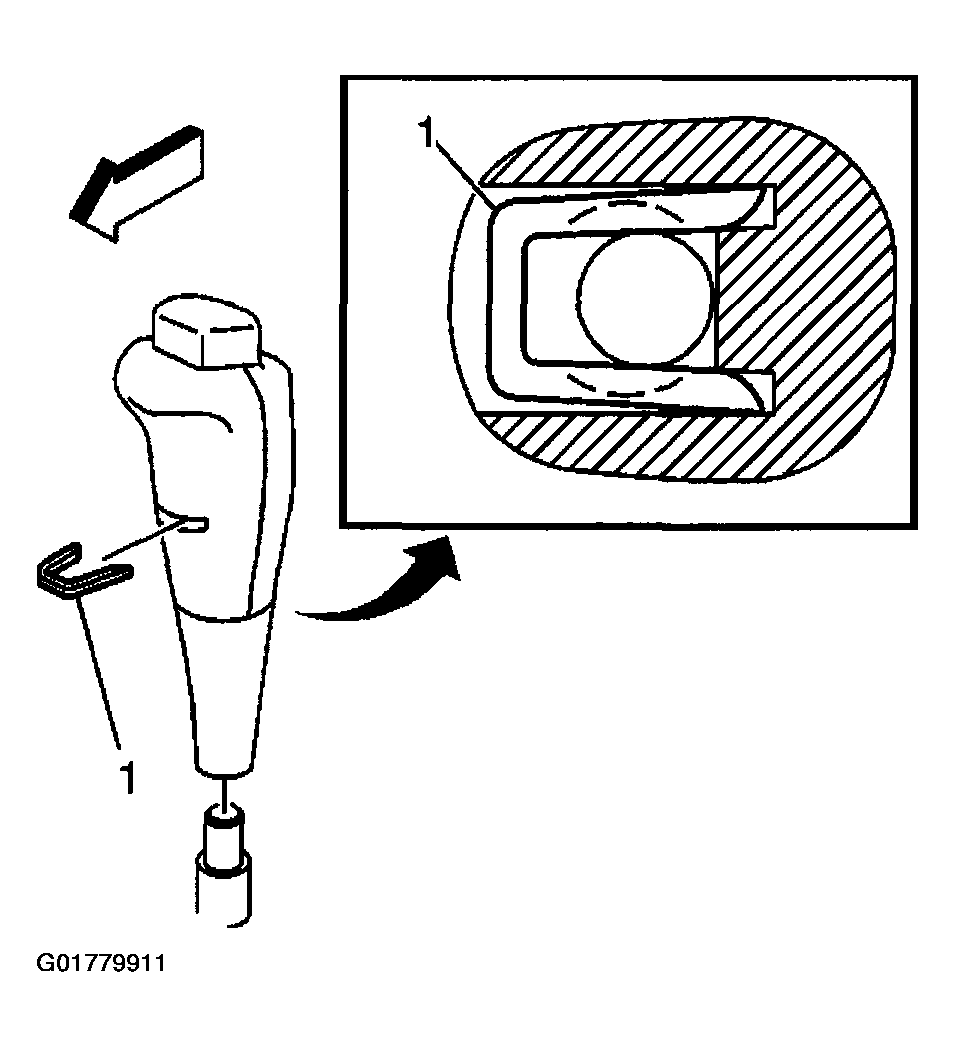

    Fig 1: Removing Gear Selector Knob
    G01779911Courtesy of GENERAL MOTORS CORP.
  4. Release the front floor console trim plate retainers, using a flat bladed tool.
  5. Remove the front floor console trim plate (1) from the front floor console (2).
  6. Disconnect the electrical connectors from the front floor console trim plate.

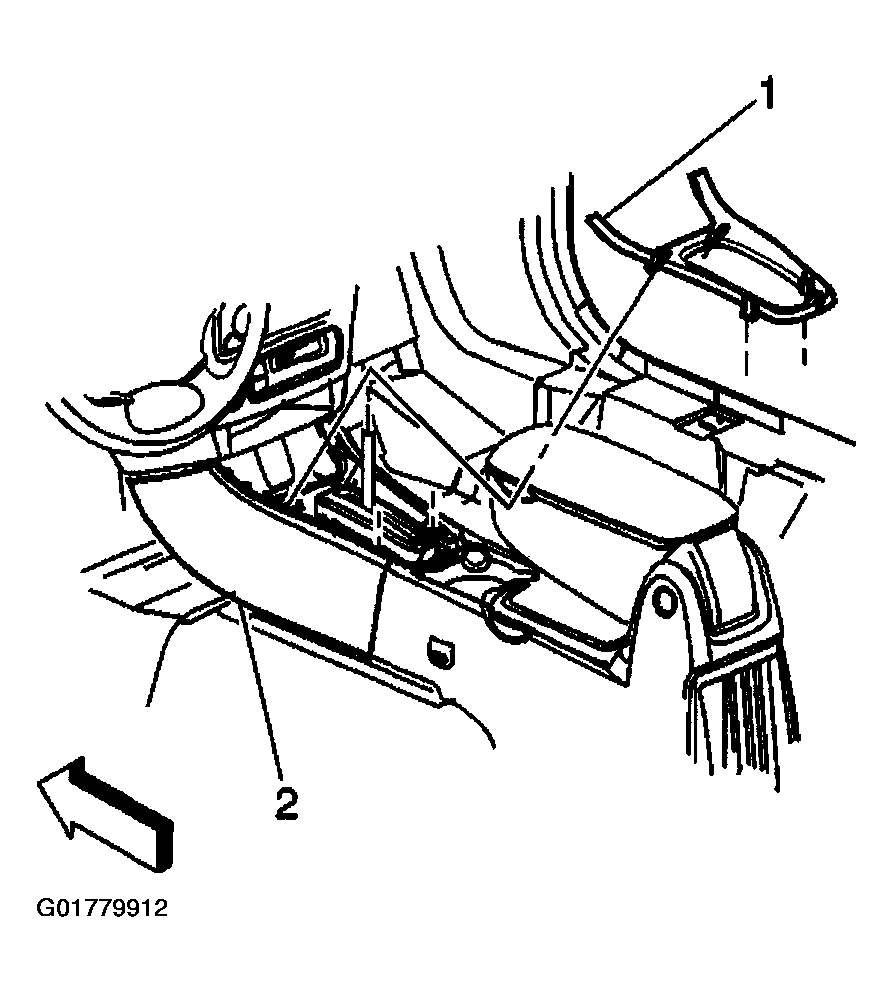

    Fig 2: Removing Front Floor Console Trim Plate
    G01779912Courtesy of GENERAL MOTORS CORP.
