Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the front floor console trim plate.
  2. Align the front floor console trim plate retainers to the slots in the front floor console.
  3. Install the front floor console trim plate (1), pressing into place until fully seated.

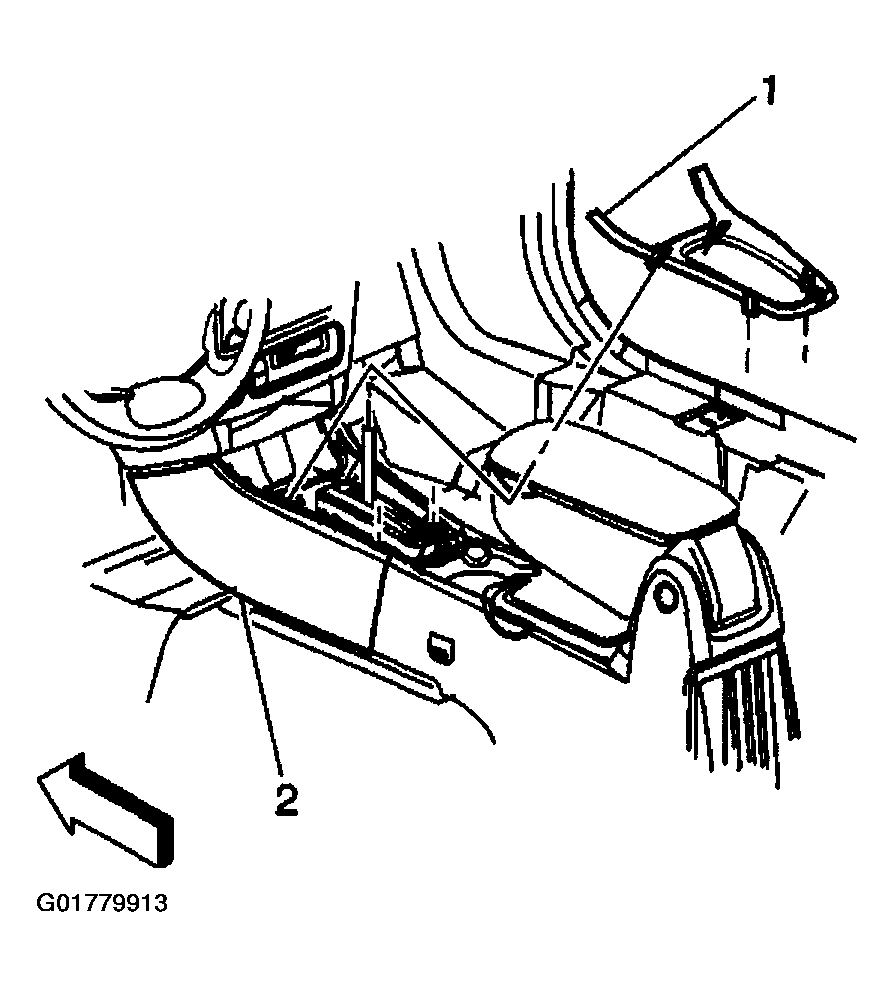

    Fig 1: Installing Front Floor Console Trim Plate
    G01779913Courtesy of GENERAL MOTORS CORP.
  4. Position the gear selector knob to the shift lever.
  5. Install the gear selector knob retainer (1), pressing into place until fully seated.
  6. Reposition the gear selector to the Park position.

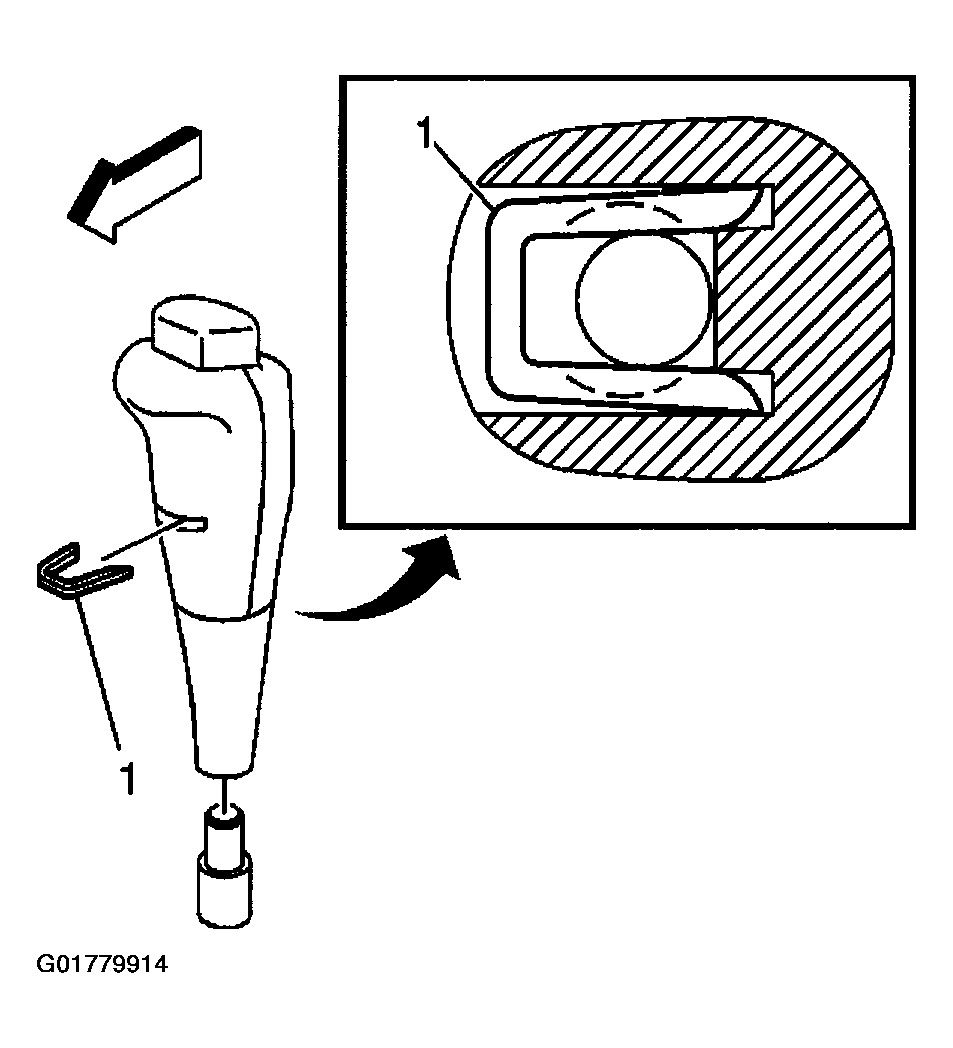

    Fig 2: Installing Gear Selector Knob
    G01779914Courtesy of GENERAL MOTORS CORP.
