Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .
  2. Remove the screws attaching the IP cluster (2) to the IP carrier (1).
  3. Pull the IP cluster (2) rearward in order to remove the cluster from IP carrier.
  4. Disconnect the electrical connector.

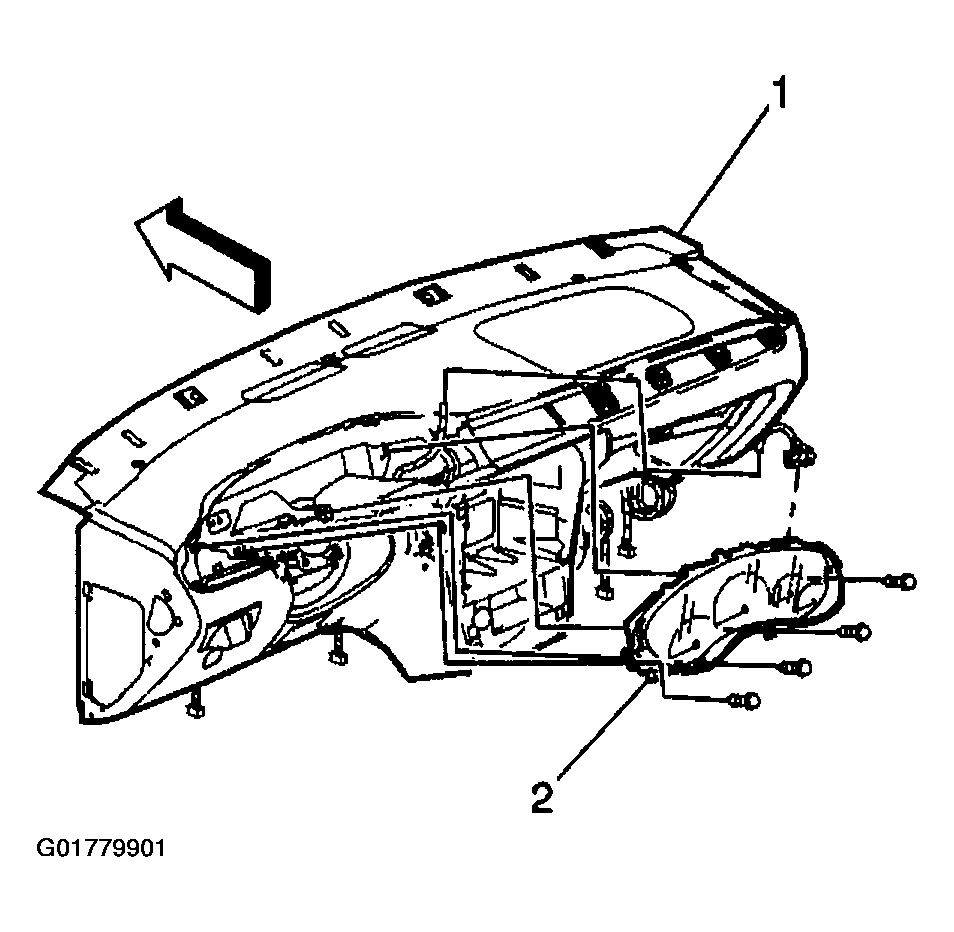

    Fig 1: Removing IPC
    G01779901Courtesy of GENERAL MOTORS CORP.
