Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the IP cluster (2) to the IP carrier (1).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the IP cluster bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  4. Install the cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .

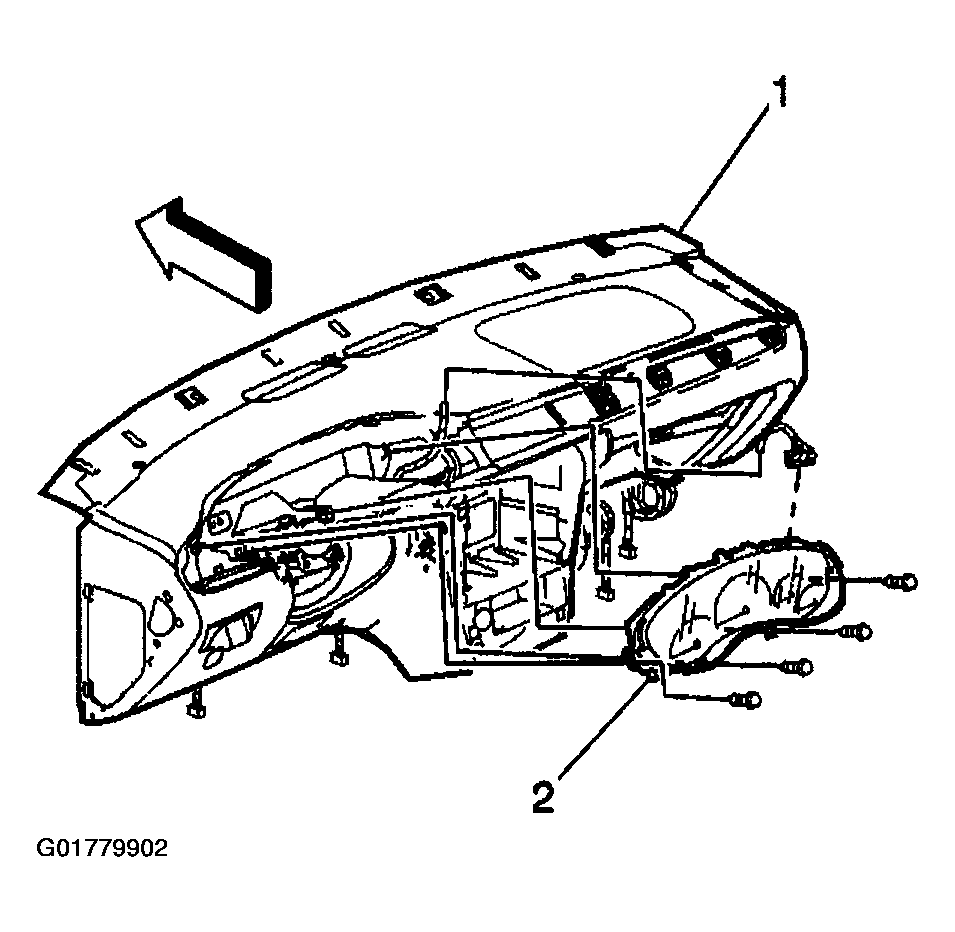

    Fig 1: Installing IPC
    G01779902Courtesy of GENERAL MOTORS CORP.
