Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  2. Gently, unsnap the grille (1) from the instrument panel (2) by lifting upward.

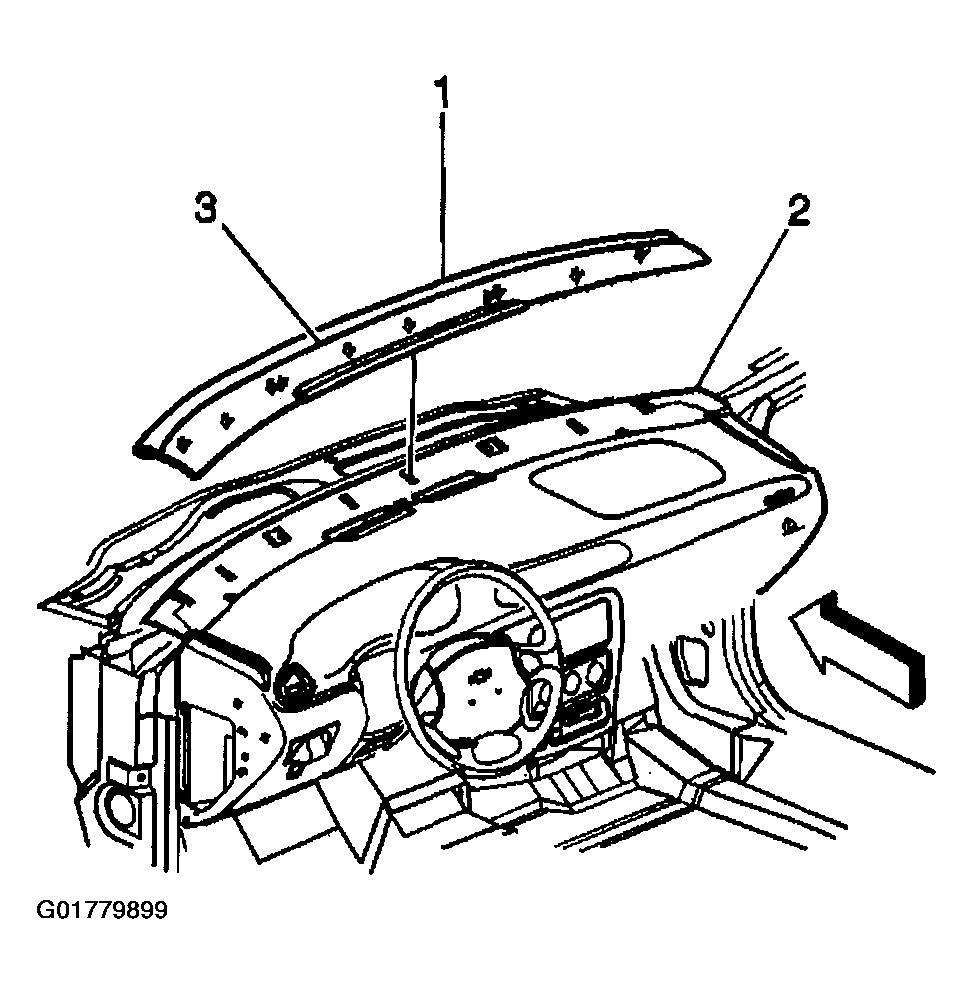

    Fig 1: Removing Defroster Grille
    G01779899Courtesy of GENERAL MOTORS CORP.
