Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the instrument panel cupholder.
  2. Remove the screws from the front of the IP cup holder.
  3. Remove the driver side IP outer trim cover.
  4. Remove the screw from the side of the IP cupholder.
  5. Remove the IP cupholder from the IP carrier.

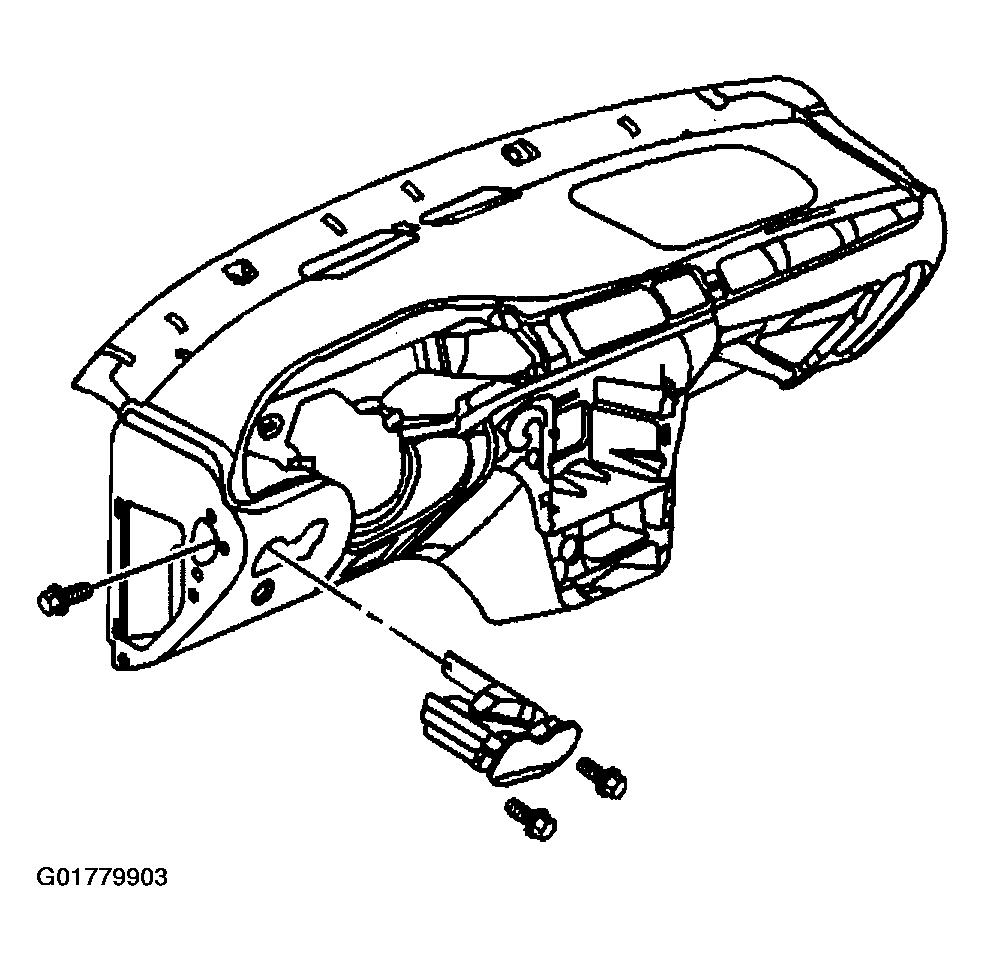

    Fig 1: Removing Cupholder
    G01779903Courtesy of GENERAL MOTORS CORP.
