Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP cupholder to the IP carrier.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the IP cup holder screws to the IP cup holder.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the screw to the side of the IP cupholder.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  4. Install the driver side IP outer trim cover.

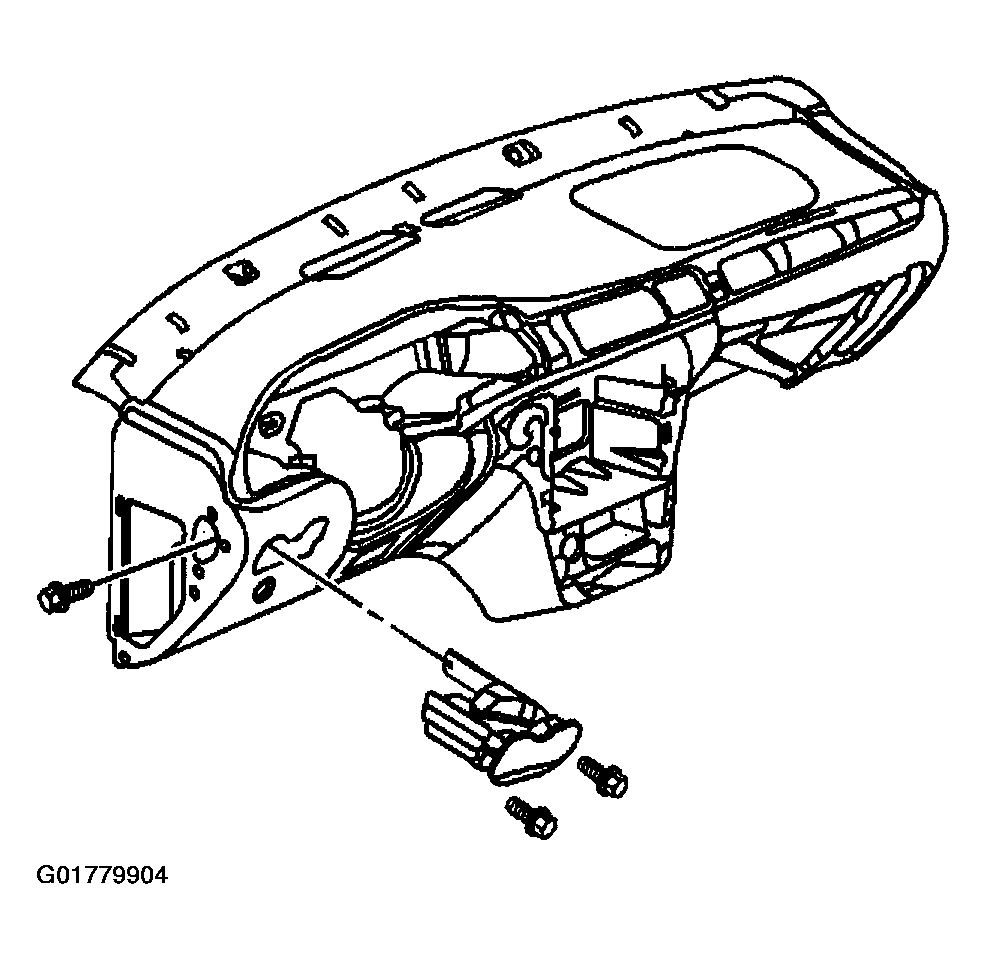

    Fig 1: Installing Cupholder
    G01779904Courtesy of GENERAL MOTORS CORP.
