Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats from the vehicle. Refer to SEAT REPLACEMENT .
  2. Fold the console compartment up.
  3. Remove the rear cupholder from the center console.
  4. Remove the console trim plate. Refer to Trim Plate Replacement - Console .
  5. Remove the console screws from the center console.
  6. Remove the center console (2) from the vehicle.

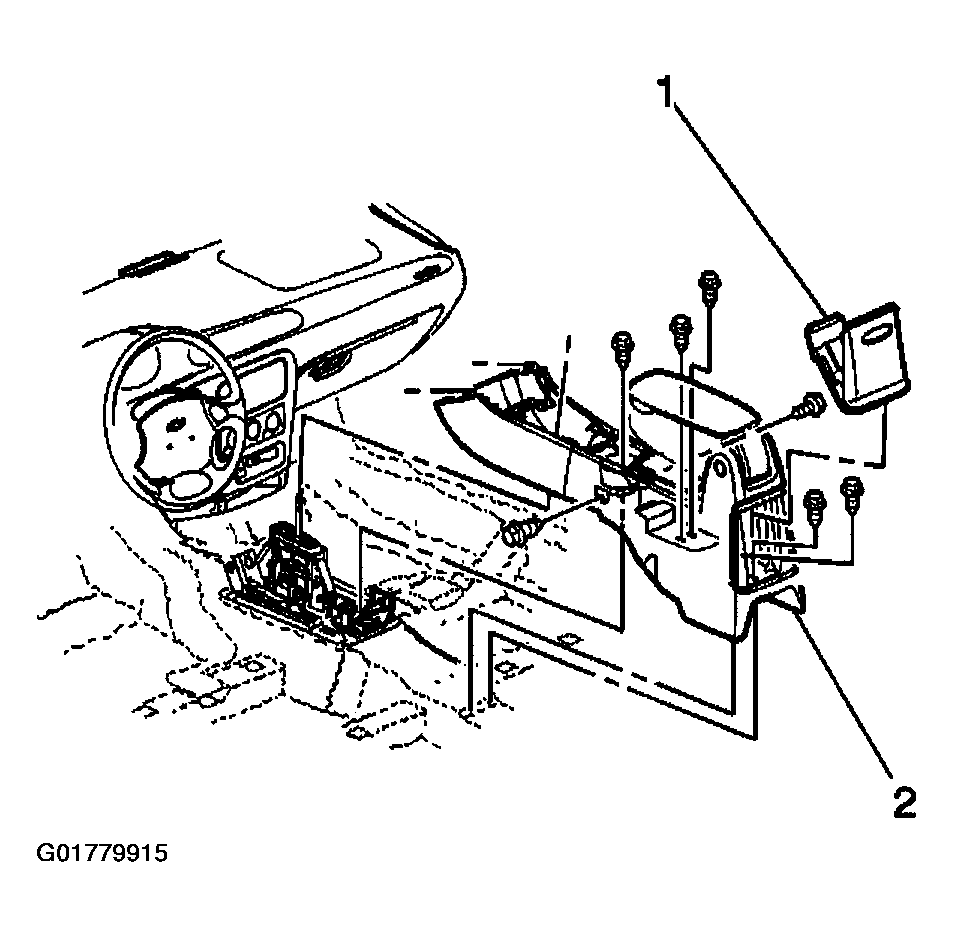

    Fig 1: Removing Center Console
    G01779915Courtesy of GENERAL MOTORS CORP.
