Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center console (2) into the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the console screws into the center console.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the console trim plate. Refer to Trim Plate Replacement - Console .
  4. Install the rear cupholder to the center console.
  5. Install the front seats into the vehicle. Refer to SEAT REPLACEMENT .

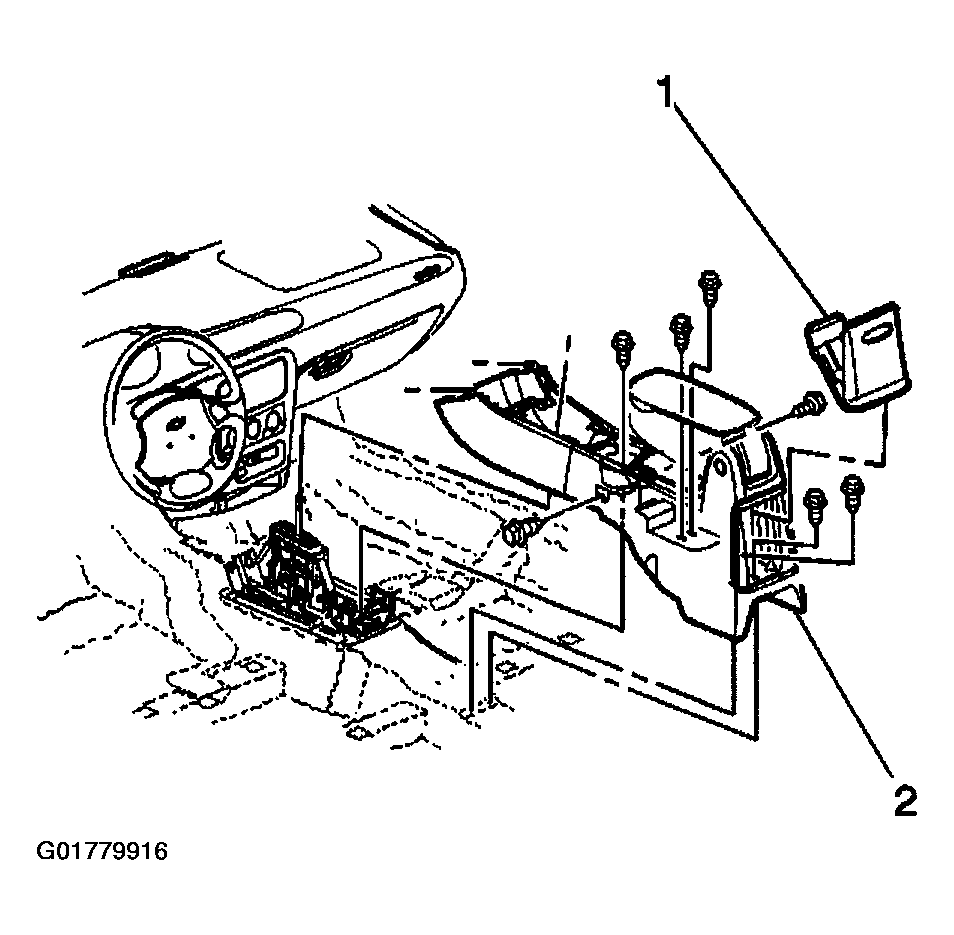

    Fig 1: Installing Center Console
    G01779916Courtesy of GENERAL MOTORS CORP.
