Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the instrument panel compartment screws from underside of the instrument panel compartment door.
    Fig 1: Removing Instrument Panel Compartment Underside Screws
    G01779893Courtesy of GENERAL MOTORS CORP.
  3. Open the IP compartment door and remove the remaining IP compartment screws inside the pocket.

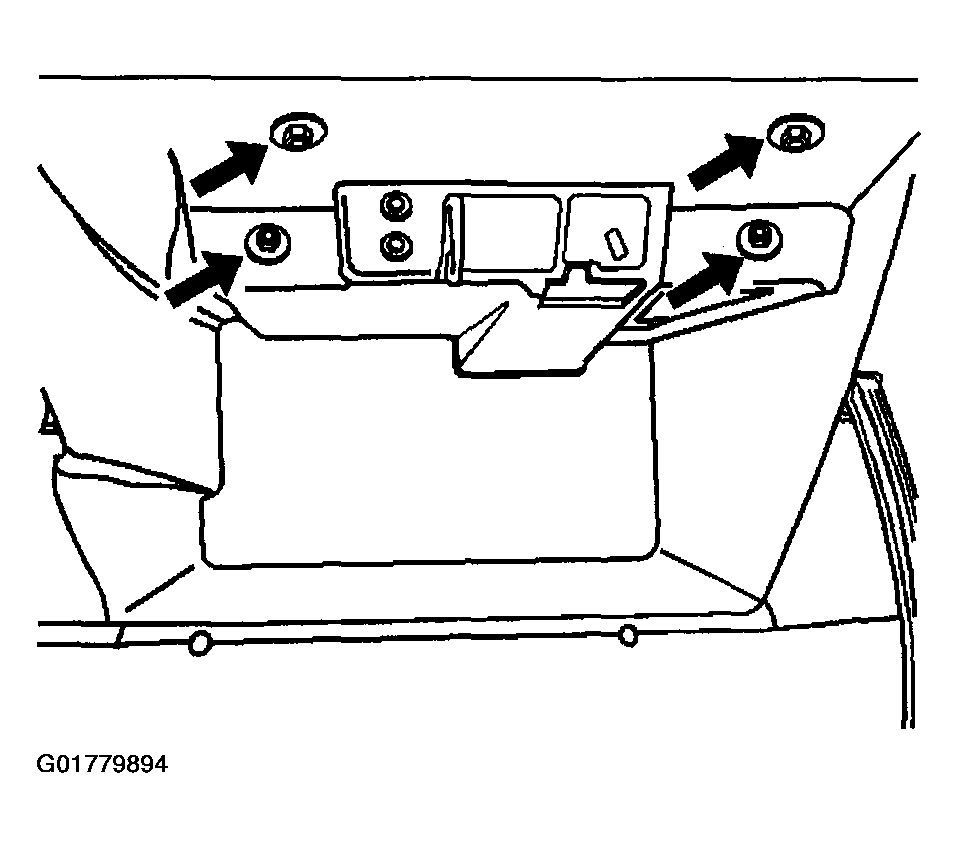

    Fig 2: Removing IP Compartment Screws
    G01779894Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connection from the IP compartment lamp switch.
  5. Remove the IP compartment from the IP carrier.

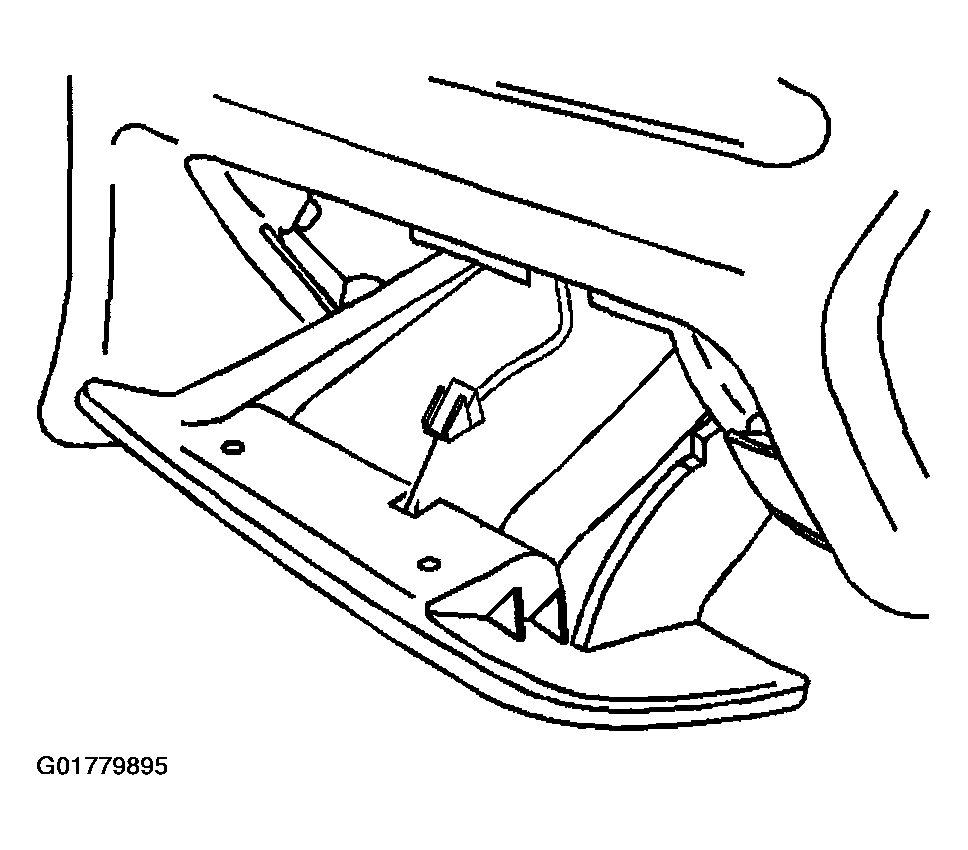

    Fig 3: Removing IP Compartment
    G01779895Courtesy of GENERAL MOTORS CORP.
