Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connection to the IP compartment lamp switch.
Install the IP compartment to the IP carrier.

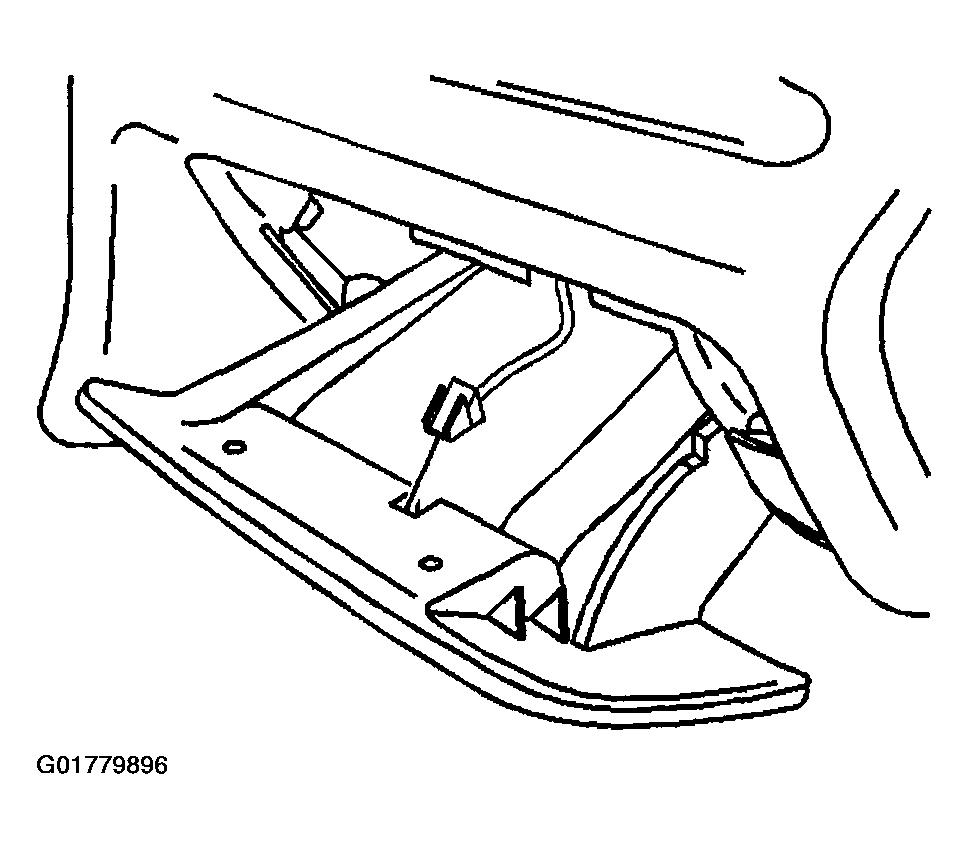

Fig 1: Installing IP Compartment
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE .
Install the IP compartment screws to the underside of the instrument panel compartment door.
Tighten

Tighten the screws to 2 N.m (18 lb in).

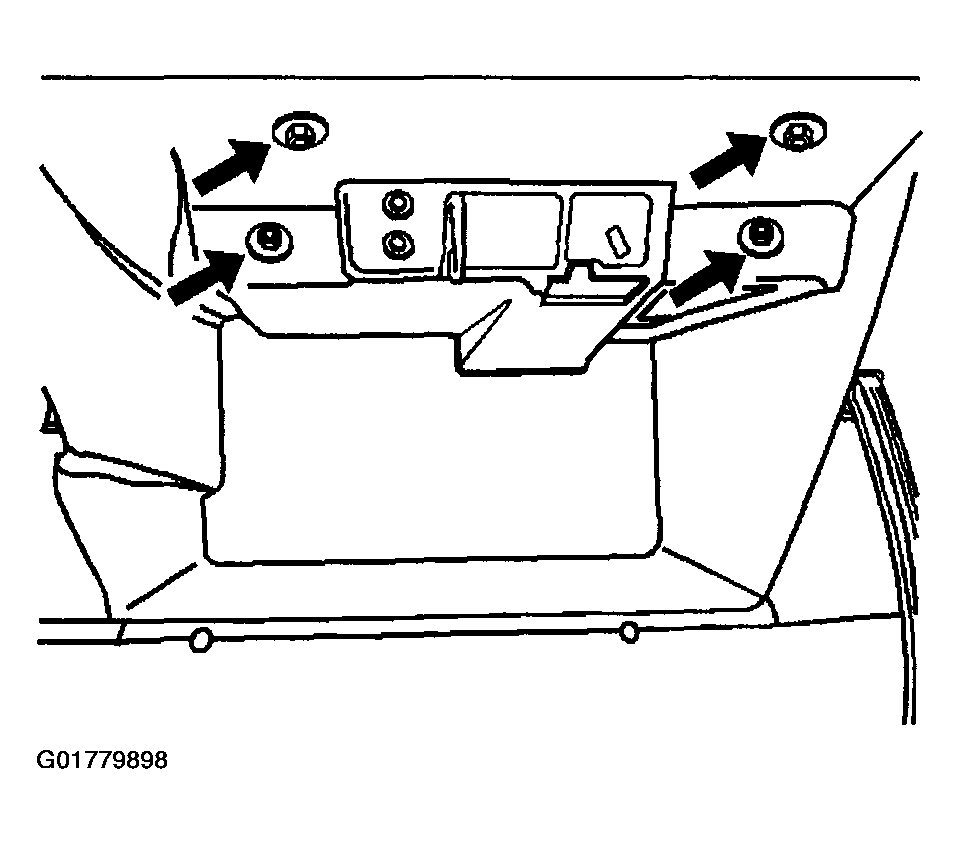

Fig 2: Installing Instrument Panel Compartment Underside
Courtesy of GENERAL MOTORS CORP.
Open the IP compartment door and install the remaining IP compartment screws inside the pocket.
Tighten

Tighten the screws to 2 N.m (18 lb in).

Fig 3: Installing IP Compartment Screws

Courtesy of GENERAL MOTORS CORP.

Enable the SIR system. Refer to ACTIVATING SYSTEM .
