Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push pin from right side of the sound insulator on the passenger side and remove from the IP carrier.
  2. Remove the bolts from the left side of the sound insulator on the passenger side and remove from the IP carrier.

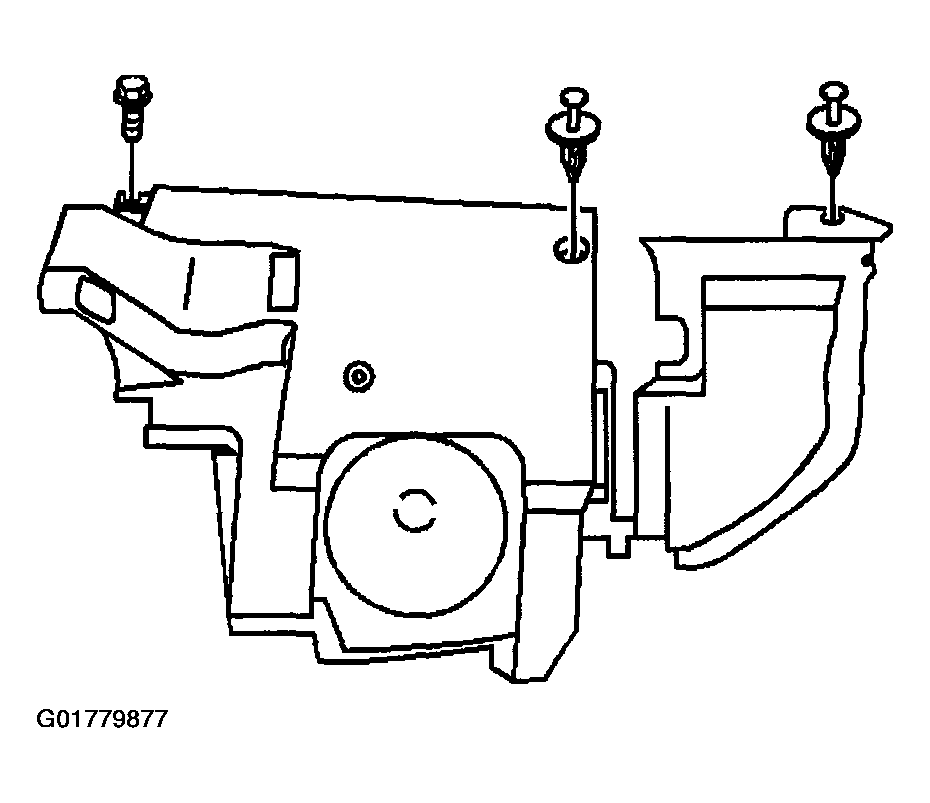

    Fig 1: Removing Closeout/Insulator Panel
    G01779877Courtesy of GENERAL MOTORS CORP.
