Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the left side of the sound insulator on the passenger side to the IP carrier.
  2. Install the bolts to the left side of the sound insulator.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Install the right side of the sound insulator on the passenger side to the IP carrier and install the push pin.

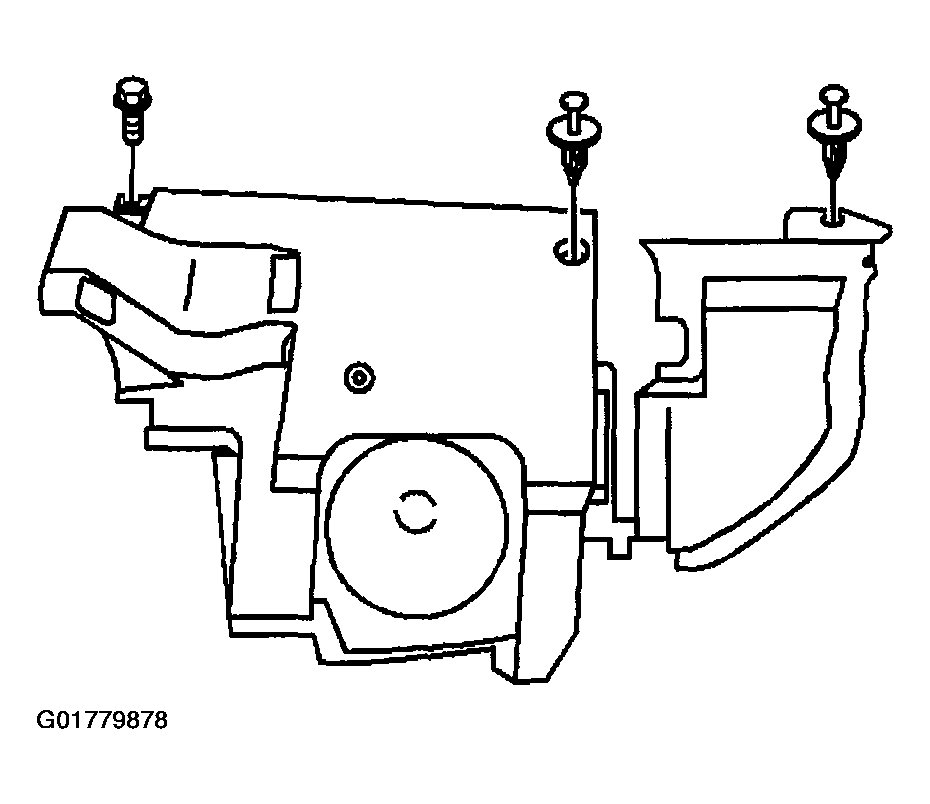

    Fig 1: Installing Closeout/Insulator Panel
    G01779878Courtesy of GENERAL MOTORS CORP.
