Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push pins from the left halve of the sound insulator on the drivers side and remove from the IP carrier.
  2. Remove the bolts from the right halve of the sound insulator on the drivers side and remove from the IP carrier

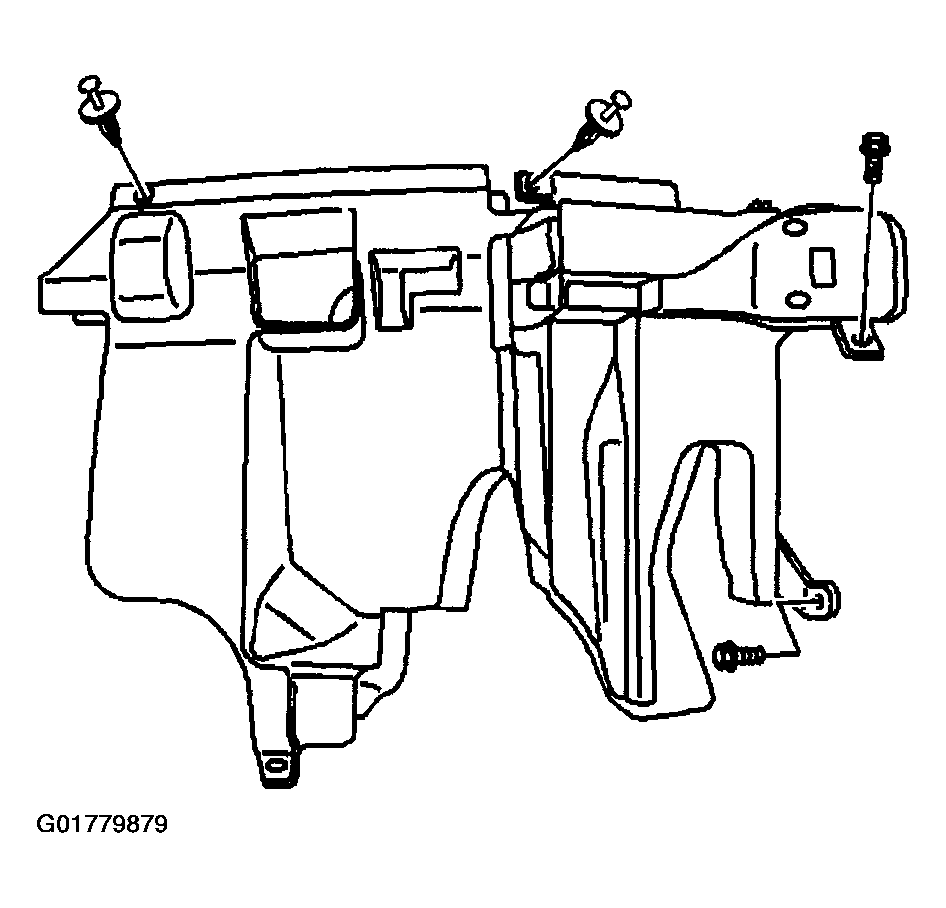

    Fig 1: Removing Closeout Insulator Panel
    G01779879Courtesy of GENERAL MOTORS CORP.
