Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the right halve of the sound insulator on the drivers side to the IP carrier, and install the bolts to the sound insulator.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  2. Install the left halve of the sound insulator on the drivers side to the IP carrier and install the push pin.

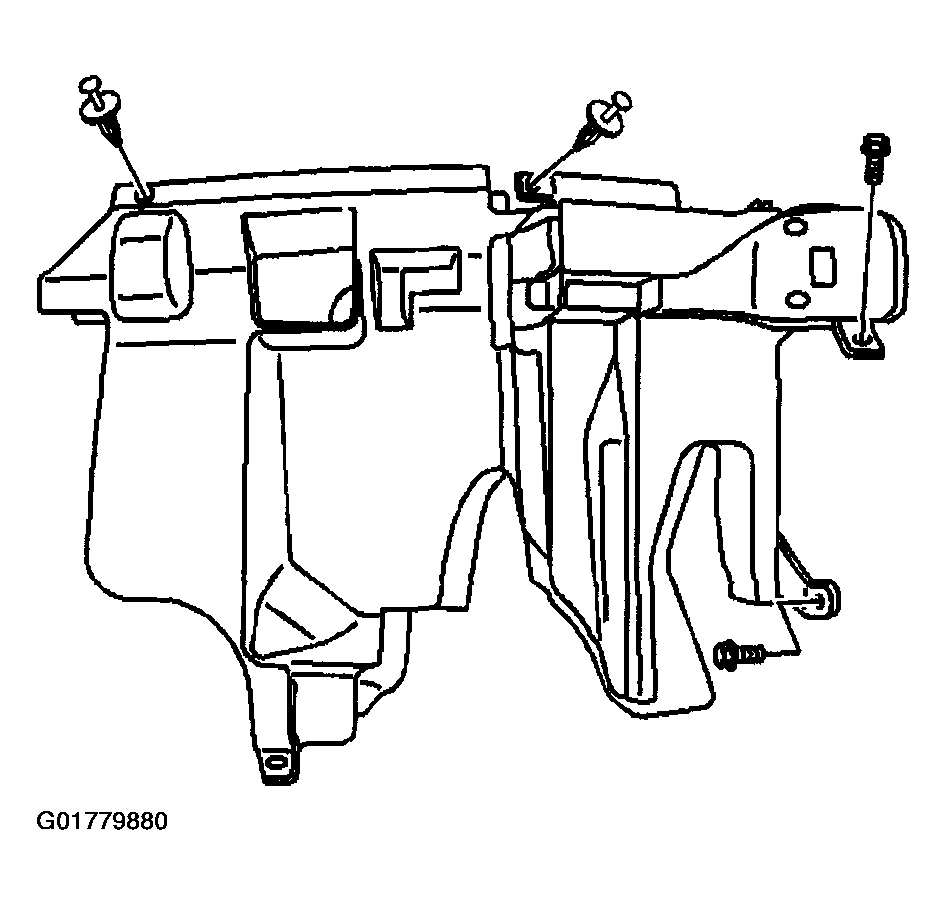

    Fig 1: Installing Closeout Insulator Panel
    G01779880Courtesy of GENERAL MOTORS CORP.
