Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> External Pages >> Different car >> Section 737 (Instrument Panel, Gauges & Console) >> Diagnostic Information and Procedures >> DTC P0462: Fuel Level Signal Low >> Test Description

Test Description

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the circuit in the high voltage range.

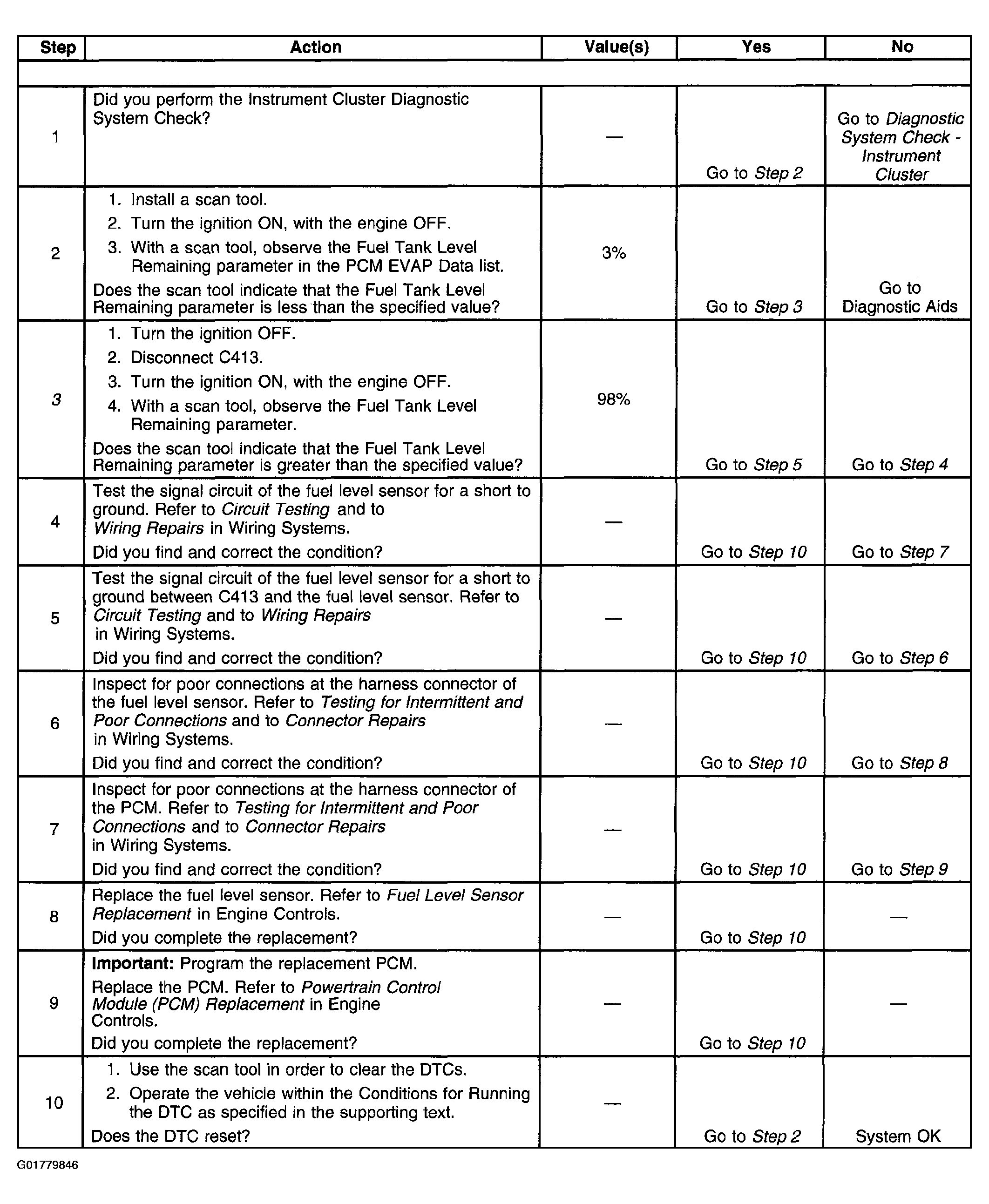

Fig 1: DTC P0462
G01779846Courtesy of GENERAL MOTORS CORP.
