Instrument Panel, Gages, and Console Connector End Views
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

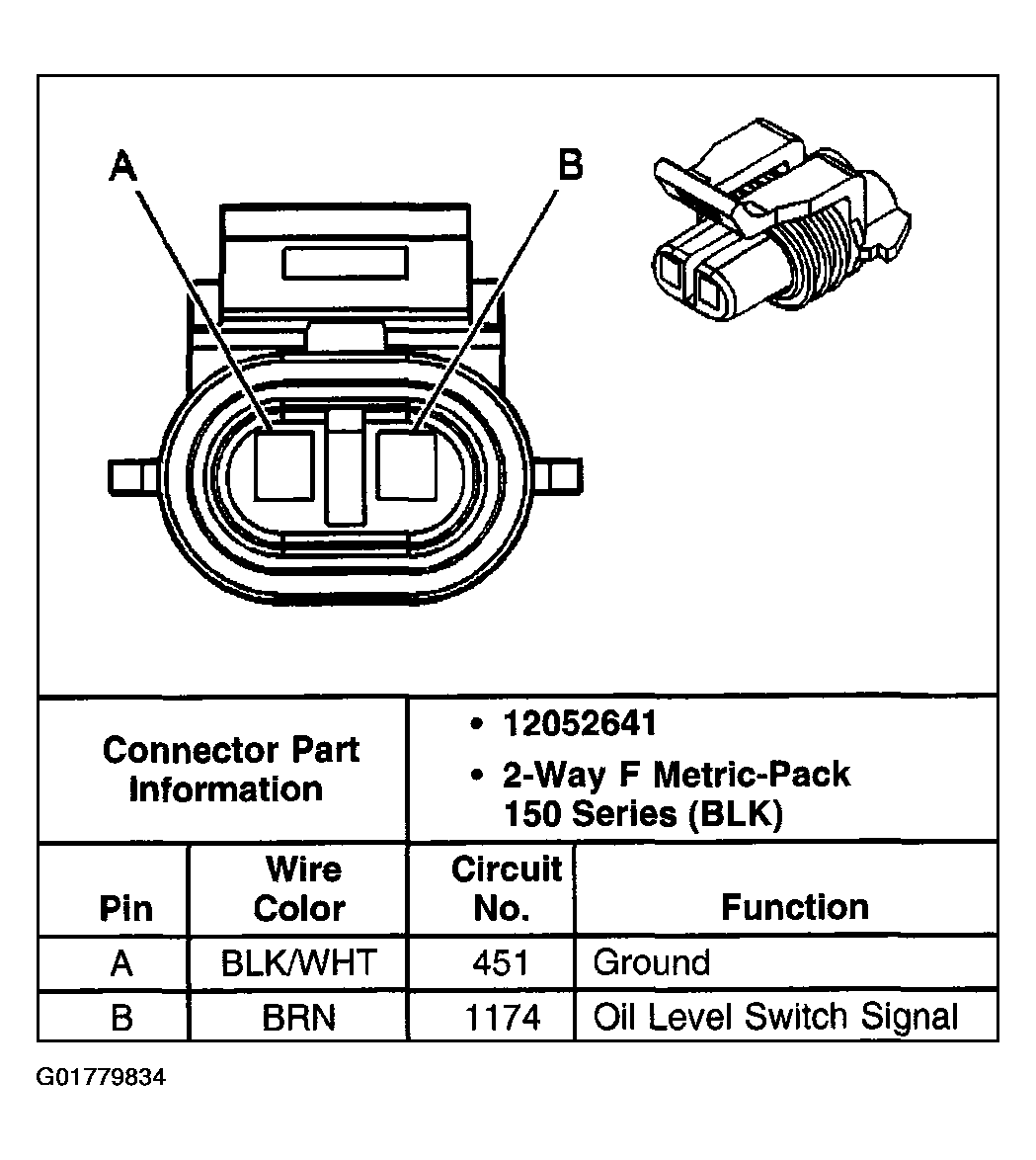

Fig 1: Engine Oil Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

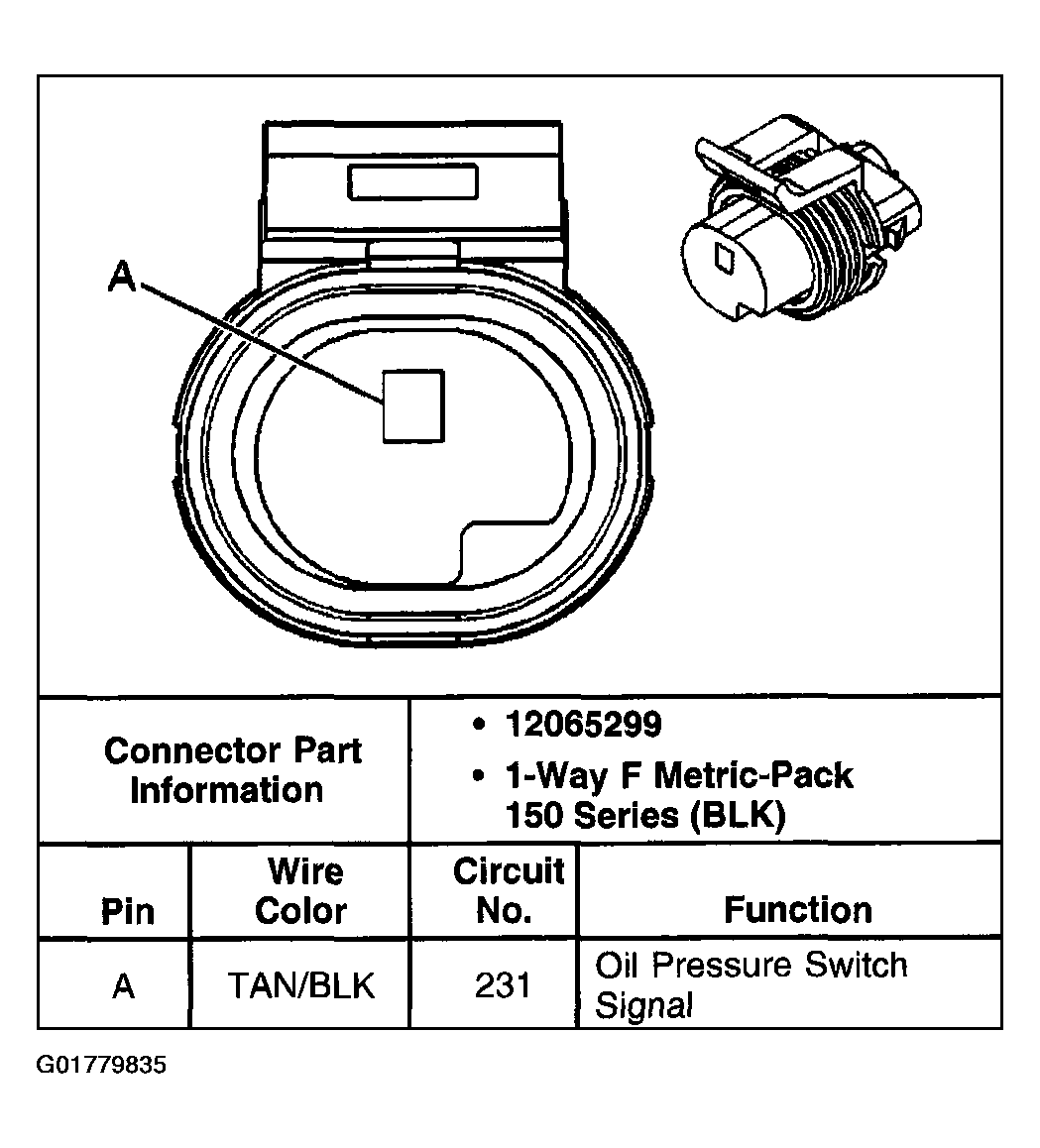

Fig 2: Engine Oil Pressure (EOP) Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

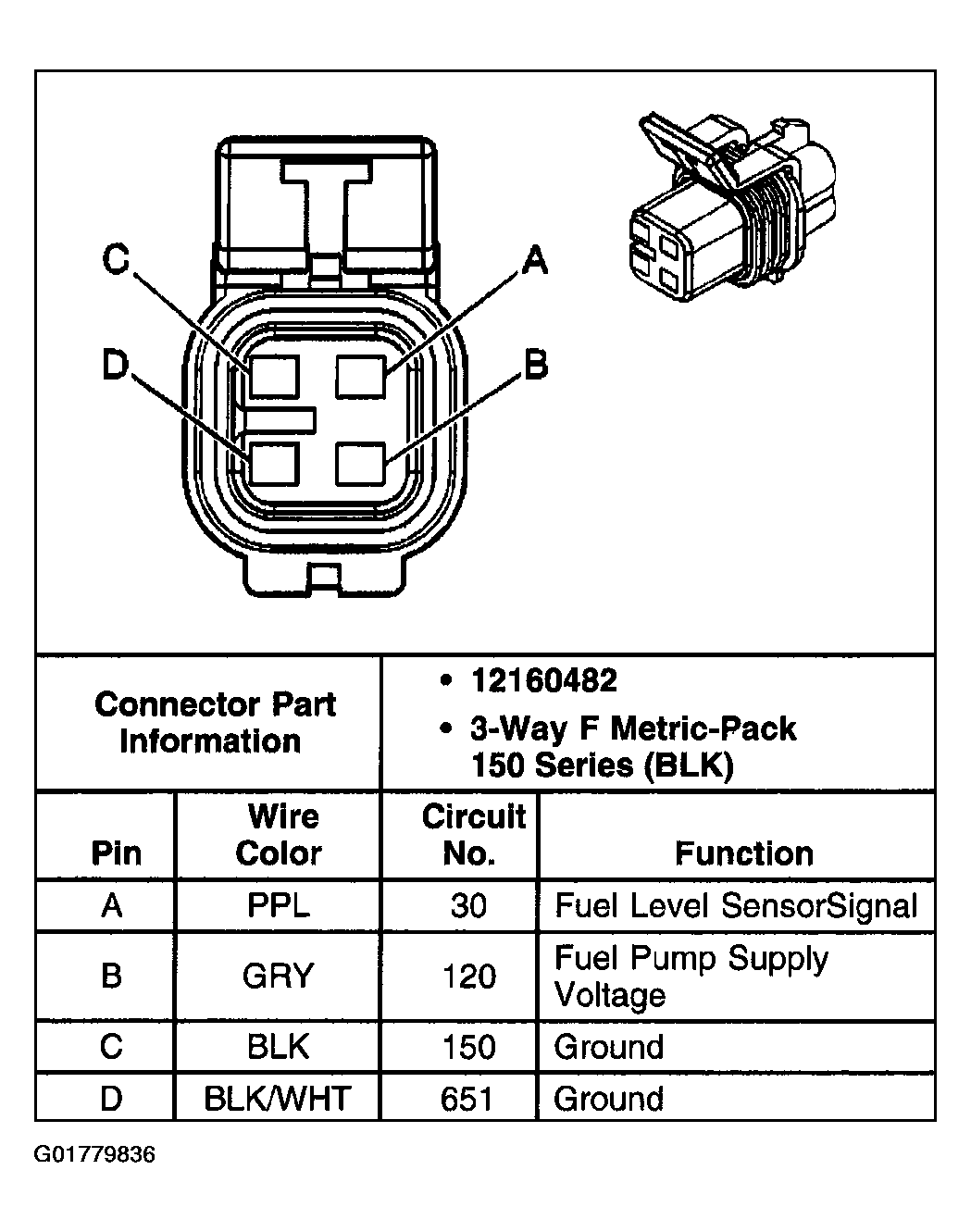

Fig 3: Fuel Pump and Sender Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.

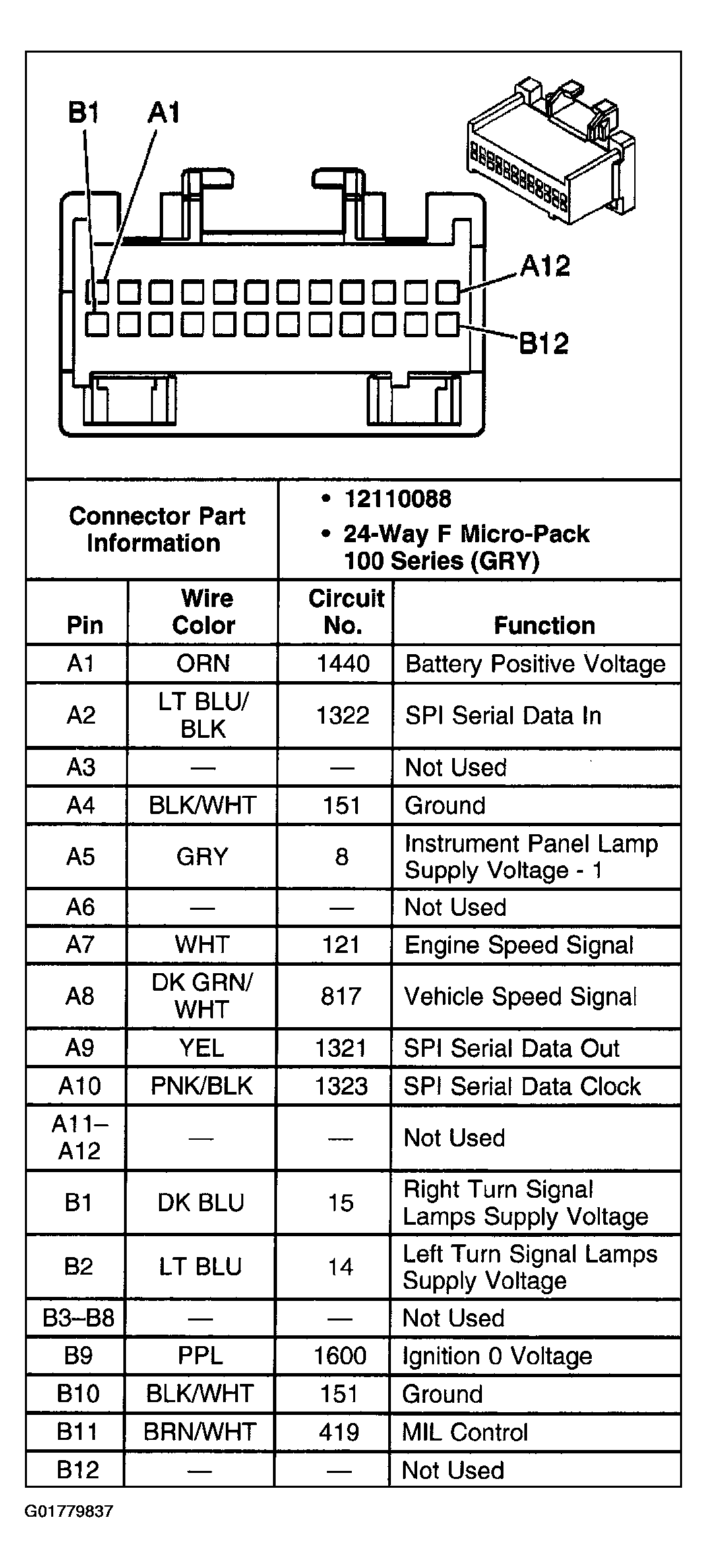

Fig 4: Instrument Panel Cluster Connector End View
